Assembling the Pole Saw
1. Unfold the sections of the handle ( Figure 4 ).

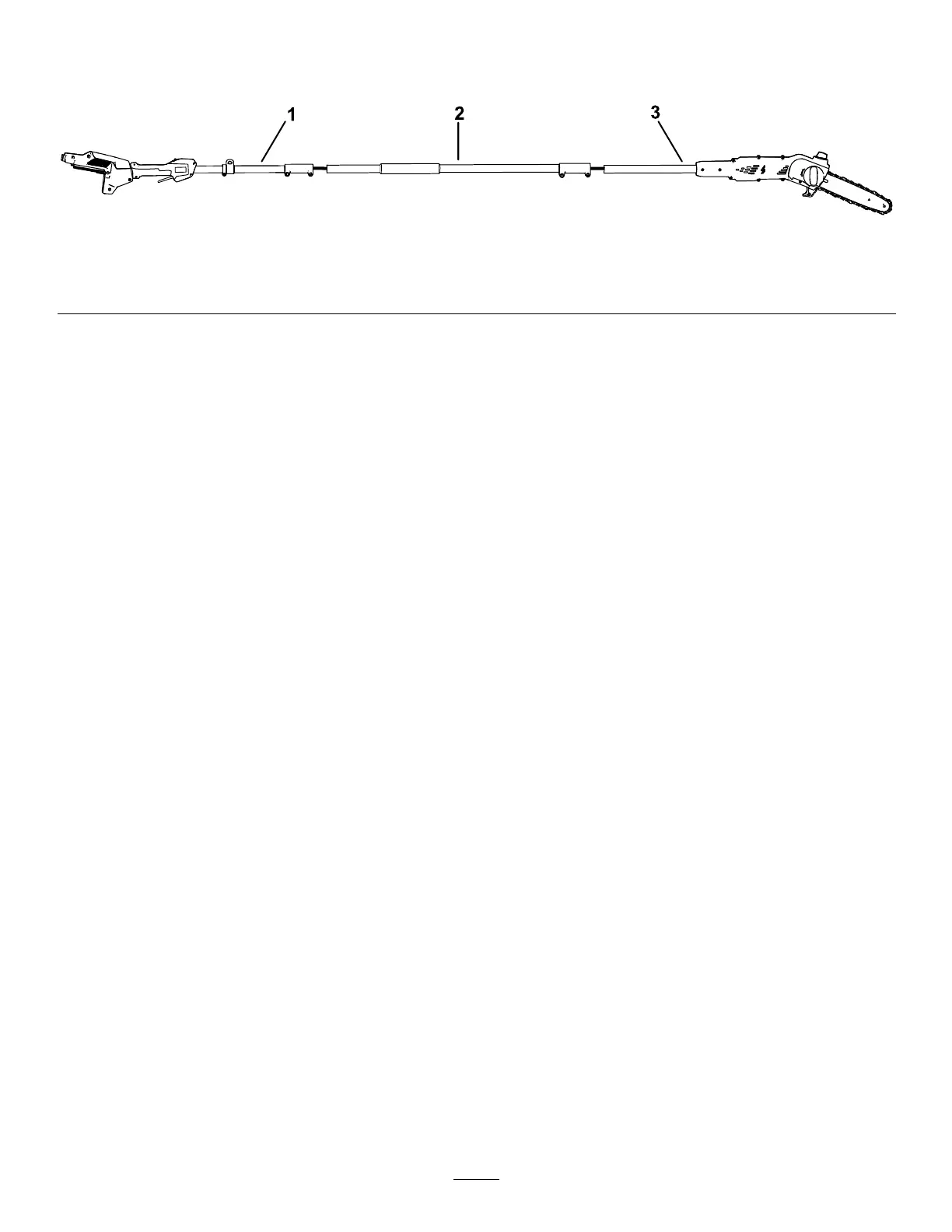

g374227
Figure 4
1. Handle pole section
3. Saw pole section
2. Middle pole section
2. Align the locking button on the middle pole section with the slotted hole at the end of the handle pole
section and slide the 2 shafts together ( Figure 5 ).
Note: The locking button clicks into the slotted hole when the shafts are secured
3. Use the provided wrench to secure these 2 sections of the pole together (E of Figure 5 ).
4. Repeat this procedure to connect the saw pole section to the middle pole section ( Figure 5 ).
