Installing the Harness

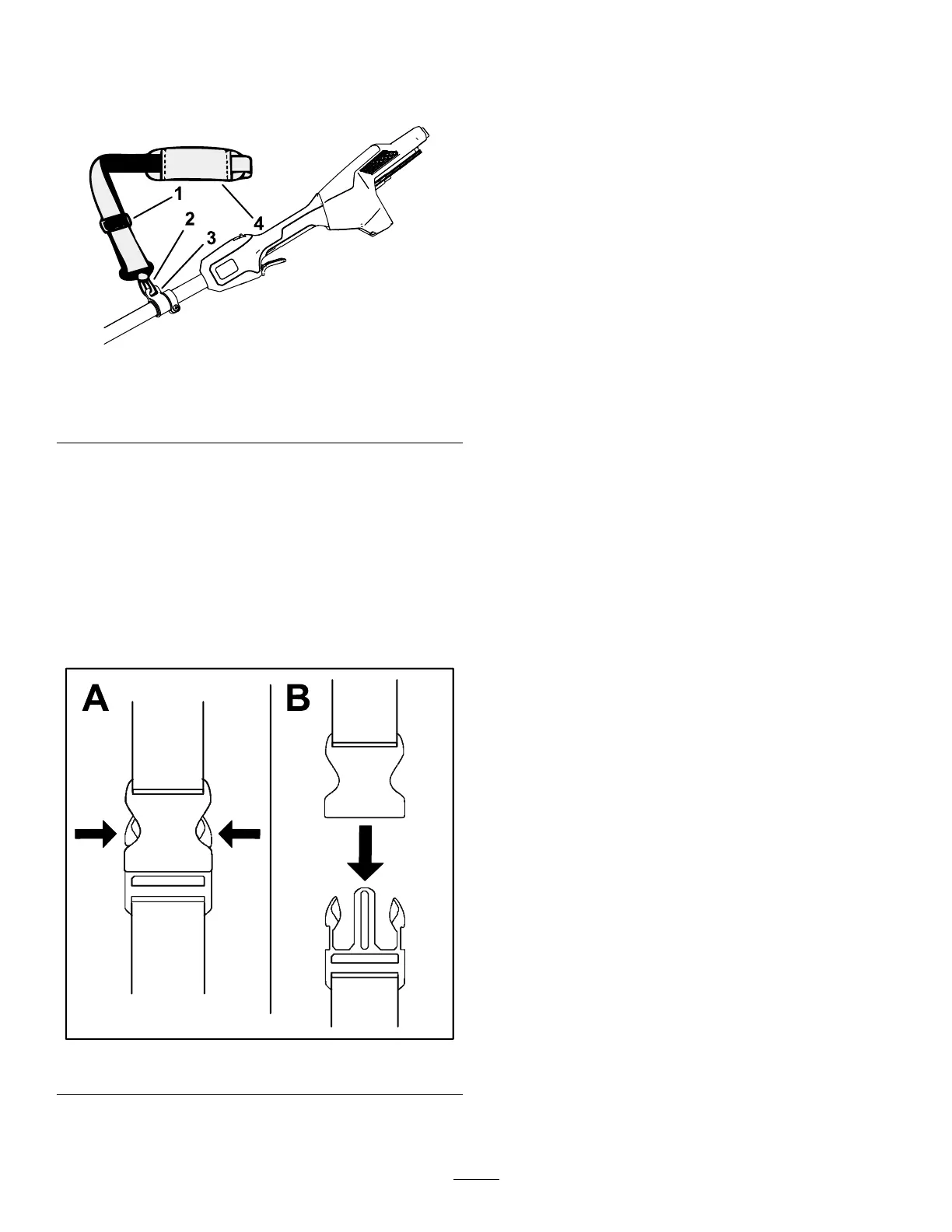

Connect the metal hook on the shoulder harness to
the strap collar on the pole saw handle ( Figure 6 ).
g374229
Figure 6
1. Strap adjuster 3. Strap collar
2. Metal strap hook
4. Shoulder strap
The strap length is adjustable; slide the strap adjuster
up to decrease the length of the strap, or down to
increase the length of the strap ( Figure 6 ).
If there is ever an emergency and you need to rapidly
remove the harness, disconnect the quick-release
buckle as follows:
1. Press in on the sides of the buckle (A of Figure
7 ).
2. Allow the buckle to disconnect (B of Figure 7 ).
g340477
Figure 7
13
