Greensmaster 3250−D
Page 3 − 14
Engine
Fuel Tank

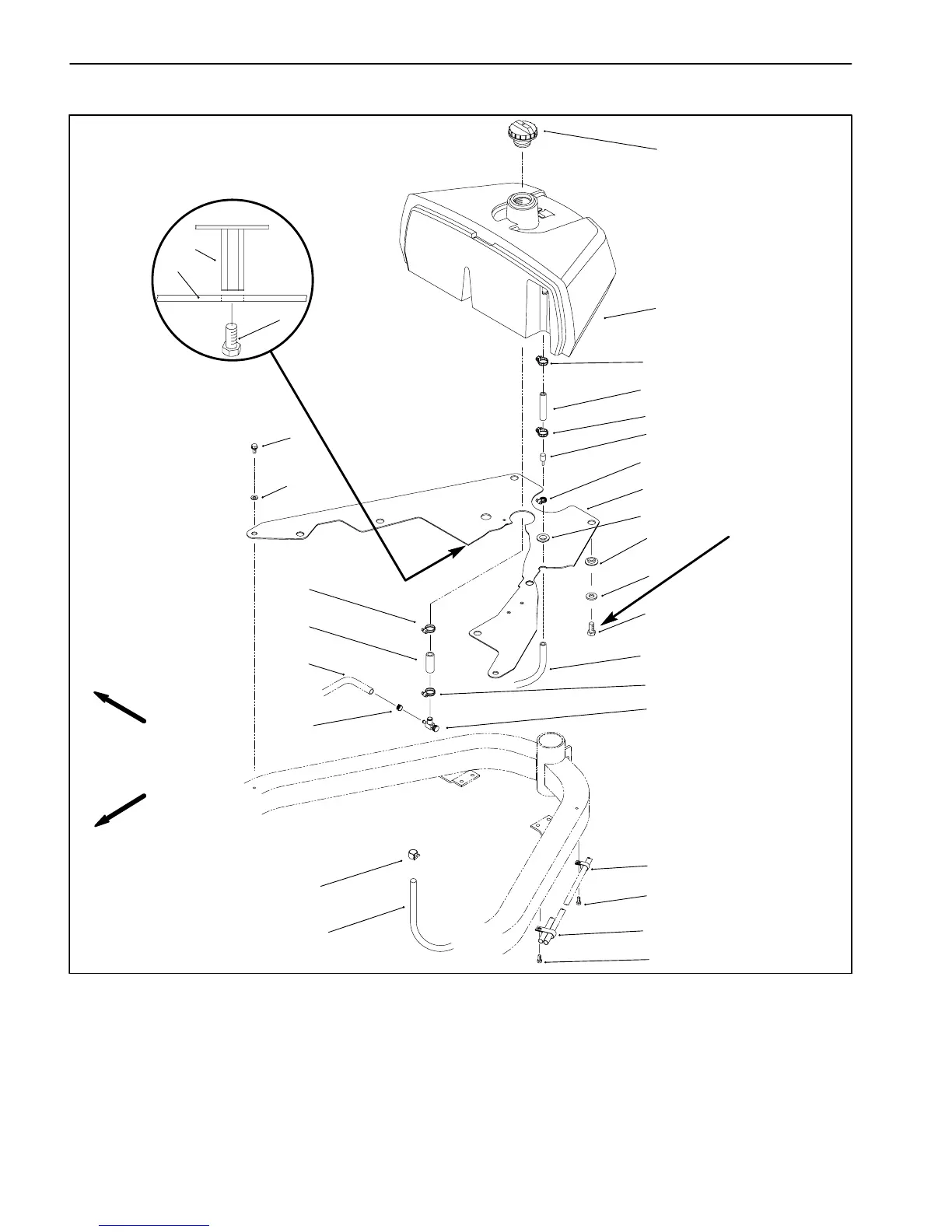

Figure 18
FRONT
RIGHT
6
13
17
30 to 60 in−lb
(3.4 to 7.8 N−m)
ANTISEIZE
LUBRICANT
1
2
24
10
11
26
13
3
16
6
25
14
6
10
9
10
18
10
4
20
23
6
19
23
22
27
1. Fuel cap
2. Fuel tank
3. Grommet
4. Flat washer
5. Not used
6. Washer head screw
7. Not used
8. Not used
9. Fuel shut−off fitting
10. Hose clamp
11. Fuel fitting
12. Not used
13. Mounting plate
14. Flat washer
15. Not used
16. Cap screw
17. Support Bracket
18. Fuel hose
19. Clamp
20. Double hose clamp
21. Fuel hose (to fuel filter/water sep.)
22. Hose clamp
23. Fuel hose (from injector pump)
24. Fuel hose
25. Grommet
26. Worm clamp
27. Hose clamp
21
