Toro Groundsmaster 1200 - Lift Arm Joint Yoke (Side Cutting Units Only)

LiftArmJointYoke(sidecuttingunitsonly)
g241365

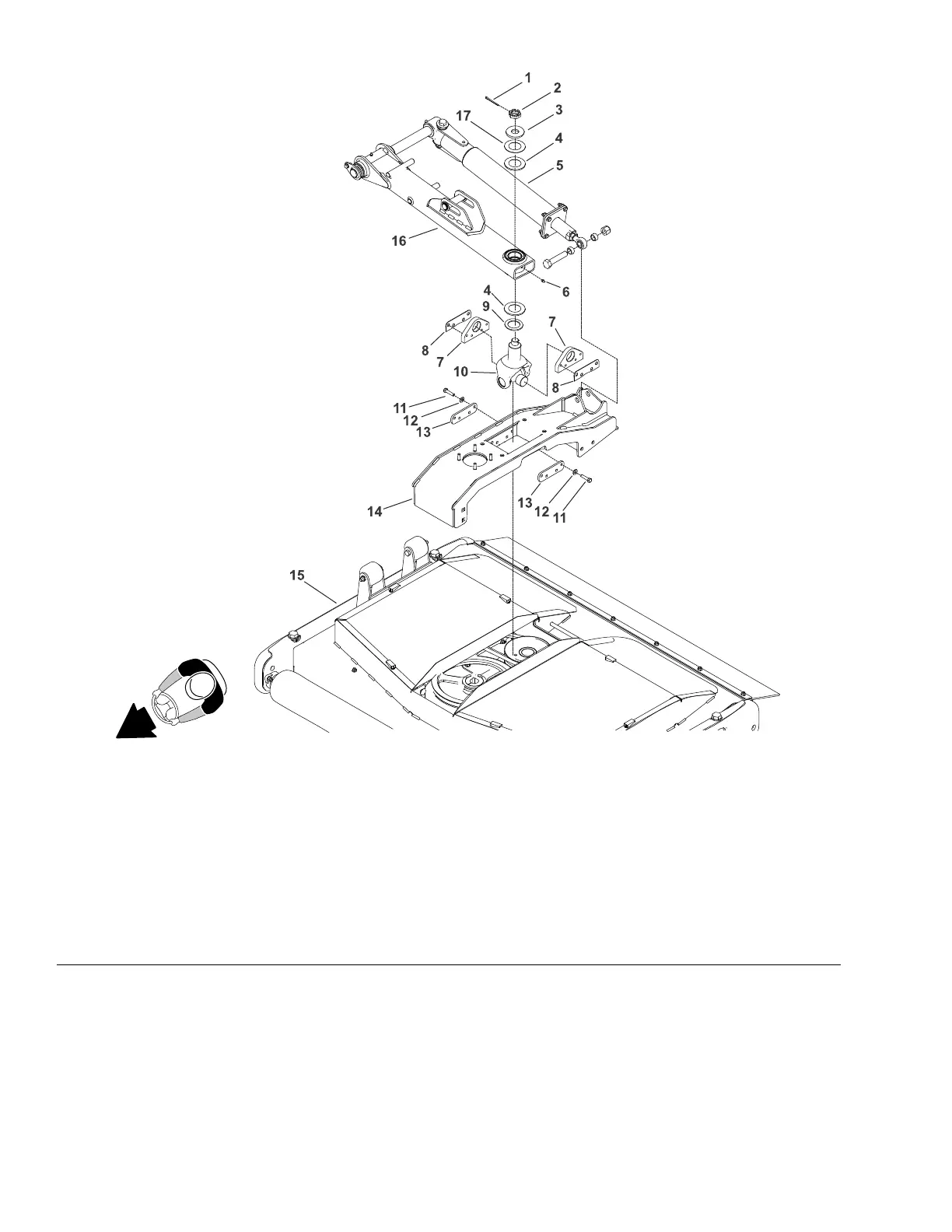

Figure13
LeftSideCuttingUnit(shown)
1.Cotterpin7.Basemount(2each)13.Boltplate(2each)
2.Slottedhexnut8.Shim(2each)
14.Deckmountassembly
3.Hardenedwasher
9.Spacer-4.2mm(0.165in)15.Cuttingunit
4.Thrustwasher-3.2mm(0.125in)
(2each)
10.Jointyoke
16.Liftarm
5.Impactarm
11.Bolt(8each)17.Thrustwasher-0.8mm(0.032in)
6.Greasetting12.Hardenedwasher(8each)
RemovingtheLiftArmJointYoke
Note:RefertoFigure13duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
2.Removethecuttingunitcovers.
Chassis:ServiceandRepairs
Page3–14
Groundsmaster®1200Pull-BehindRotaryMower
18235SLRevA
