Toro Groundsmaster 1200 - Deck Mount Assembly

DeckMountAssembly
g254260

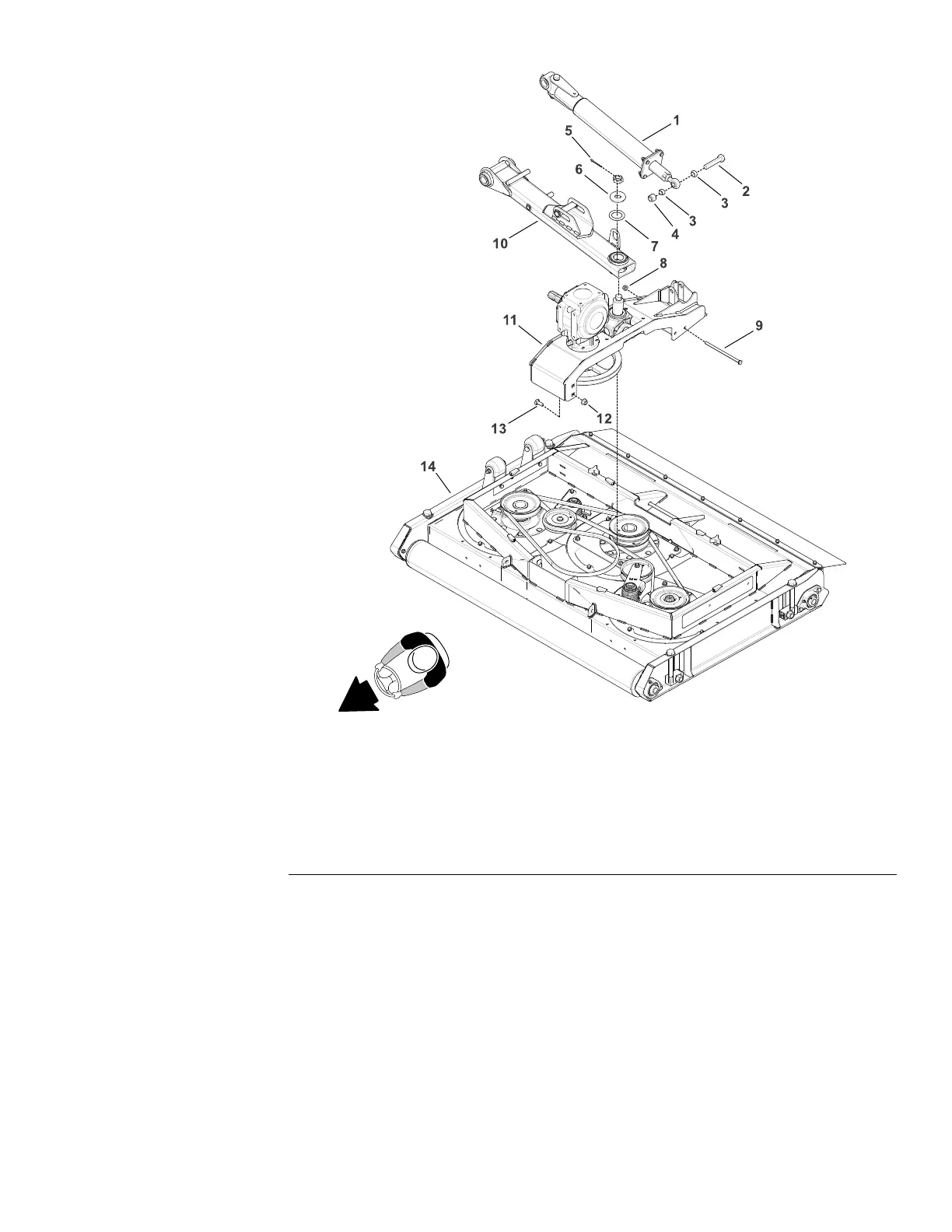

Figure44
1.Impactarmassembly6.Hardenedwasher11.Deckmountassembly
2.Bolt7.Thrustwasher
12.Nut(4each)
3.Spindlespacer(2each)8.Nut(2each)13.Carriagebolt(4each)
4.Locknut
9.Bolt(2each)14.Cuttingunit
5.Nut
10.Liftarmassembly
RemovingtheDeckMountAssembly
Note:RefertoFigure44duringthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunitsanddisengage
thePTO.Removethemaindriveshaftanddisconnectthemachine
fromthetowvehicle.Securethemachinewithtowbarjack;refertothe
Groundsmaster1200Operator’sManual.
2.Removethecuttingunitdriveshafts;refertoRemovingtheCuttingUnit
DriveShafts(page5–5).
3.Removethedeckcoversfromthetopofthecuttingunit.
4.Usea⅜”or½”driveratchetorbreakerbartorelieveidlerpulleytension
andremovethedrivebelt.
Groundsmaster®1200Pull-BehindRotaryMower
Page6–5
CuttingUnits:ServiceandRepairs
18235SLRevA
