3.Removethebootfromtheseatbaseasfollows(Figure9).
A.Atthesidesoftheseat-baseboot,locateitsmountingtabsthatprotrudethroughtheslotinthe
channeloftheseatbase.
g037076
g037047

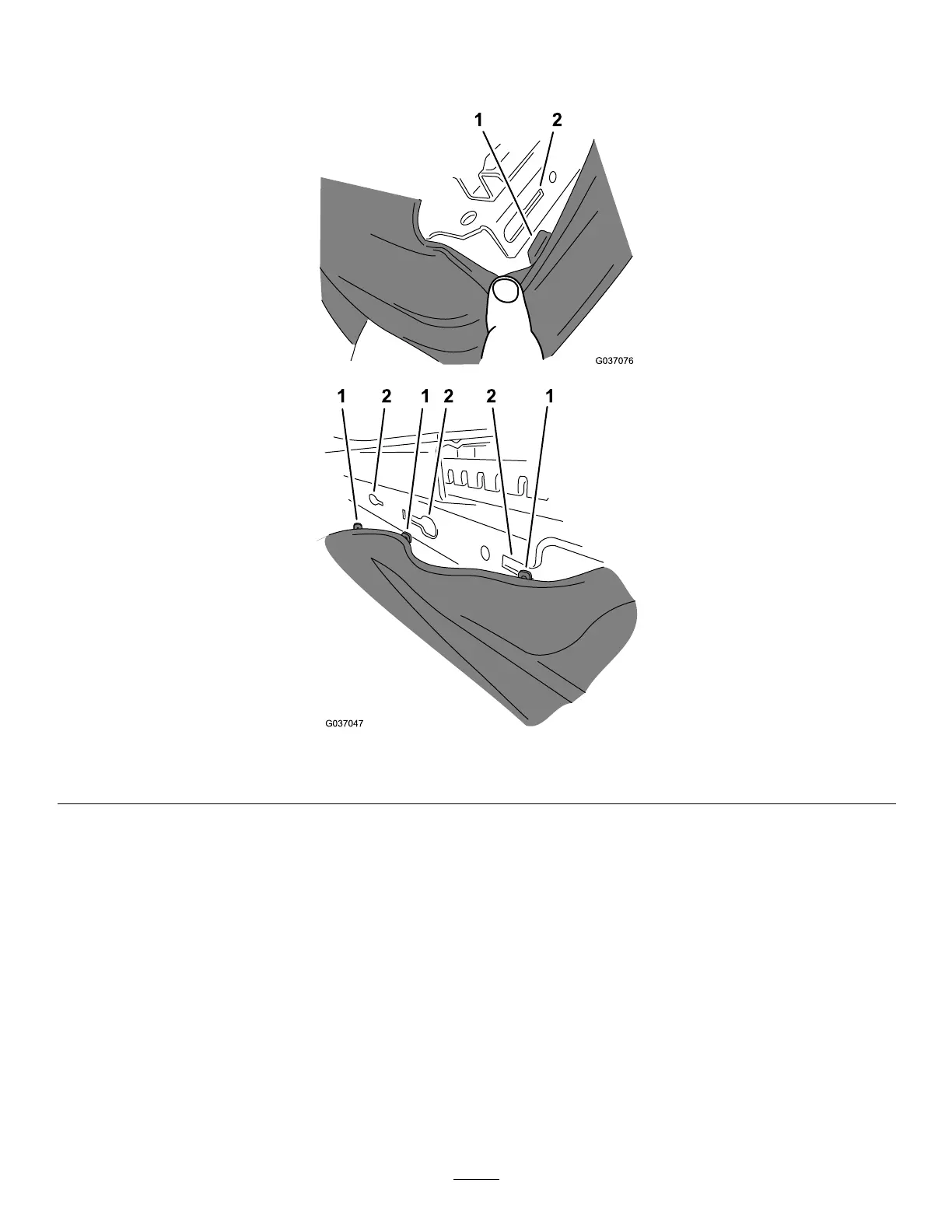

Figure9
1.Tabs(seat-baseboot)2.Slots(seat-basechannel)
B.Pulleachtabalongtheslotuntilthetabisovertheholeandthenpullthetaboutandawayfrom
theseat-basechannel.
Note:Pullthebootforwardorrearwarddependingonwhichtabyouaretheremoving.
C.Whenallofthetabsareremovedfromtheirslots,pulltherubberbootuptogainaccesstothe4
bolts(8x25mm)securingtheseattotheplatform(Figure10).
7
