Toro Groundsmaster 4010-D Service Manual

Groundsmaster 4000--D/4010--DHydraulic System Page 4 -- 11 6

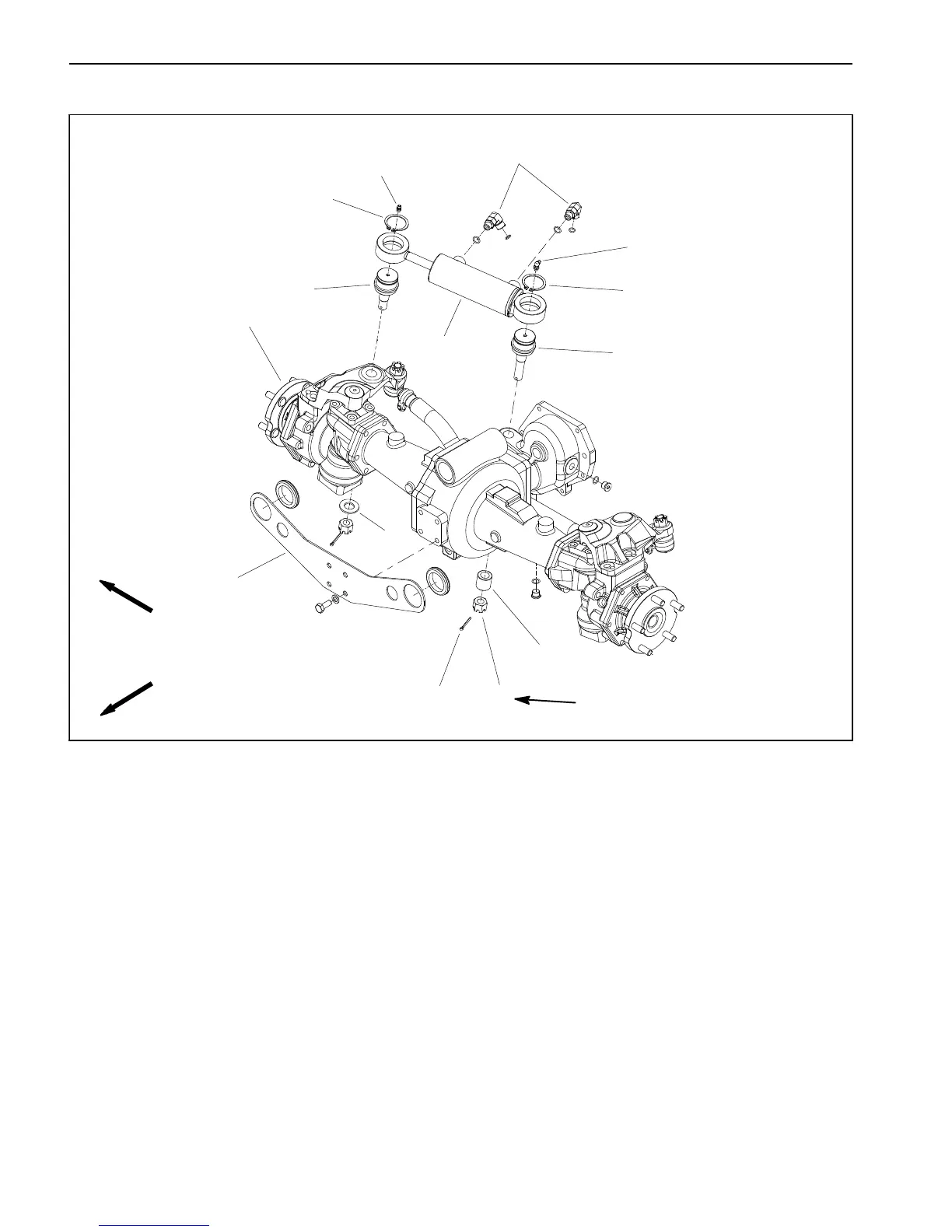

Steering Cylinder
1. Steering cylinder
2. Ball joint
3. Ball joint
4. Retaining ring (2 us ed)
5. Grease fitting
6. Grease fitting
7. 90
o
hydraulic fitting (2 used)
8. Drive axle assembly
9. Ball joint spacer
10. Axle washer
11. Slotted hex nut (2 used)
12. Cotter pin (2 used)
13. Bulkhead mount plate
Figure 83
FRONT
RIGHT
79 to 84 ft--lb
(108 to 113 N--m)
2
3
6
8
9
10
11
13
1
5
7
12
4
4
