Servicing the Battery

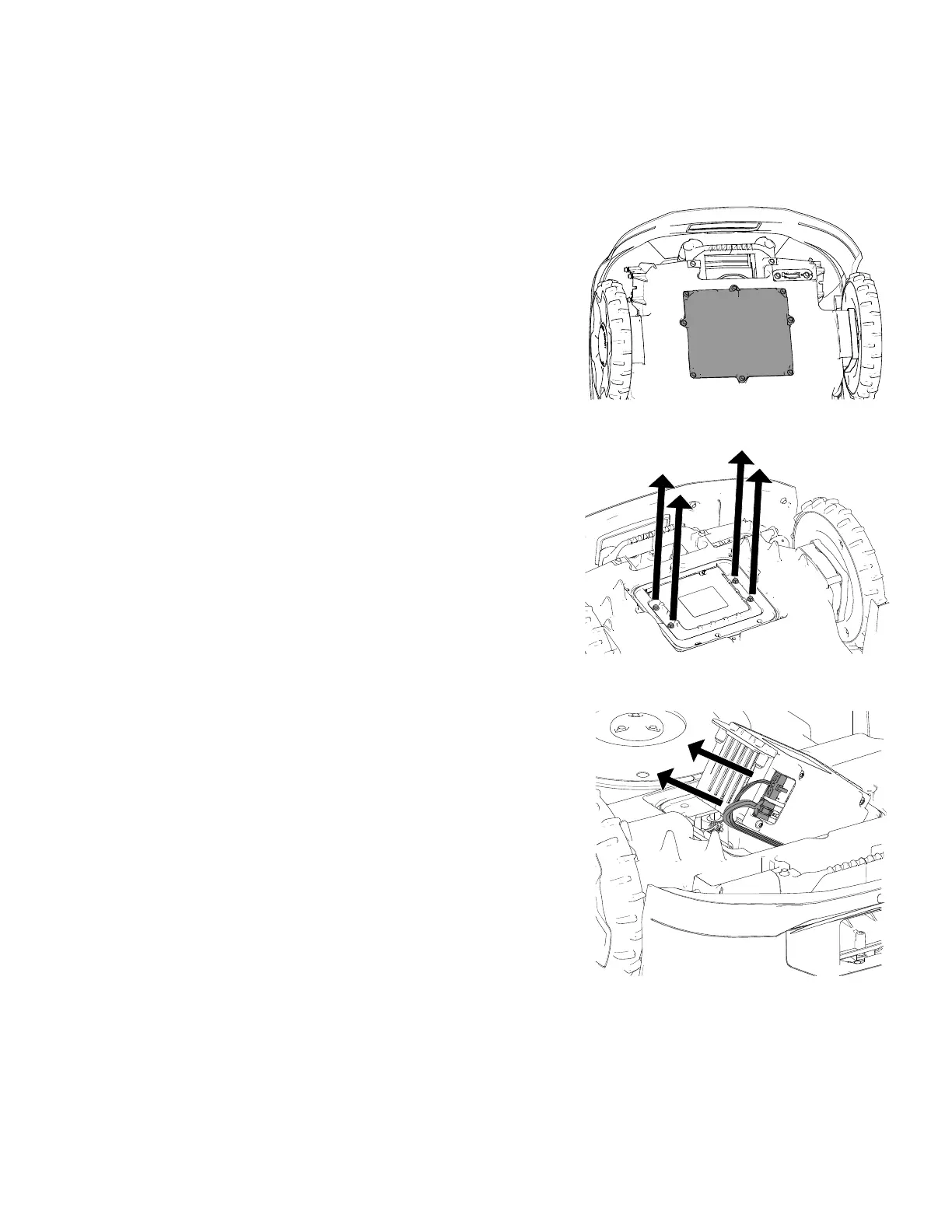

Disconnecting the Battery
1. Turn the power switch to the OFF position.
G433890
2. Use a 7 mm socket to remove the 8 screws
and the battery cover.
G433889
3. Remove the screws securing the battery.
G433983
4. Disconnect the 2 wire-harness connectors
from the battery.
Maintenance: Servicing the Battery Page 6–3 3448-238 B
To Next Page
