14

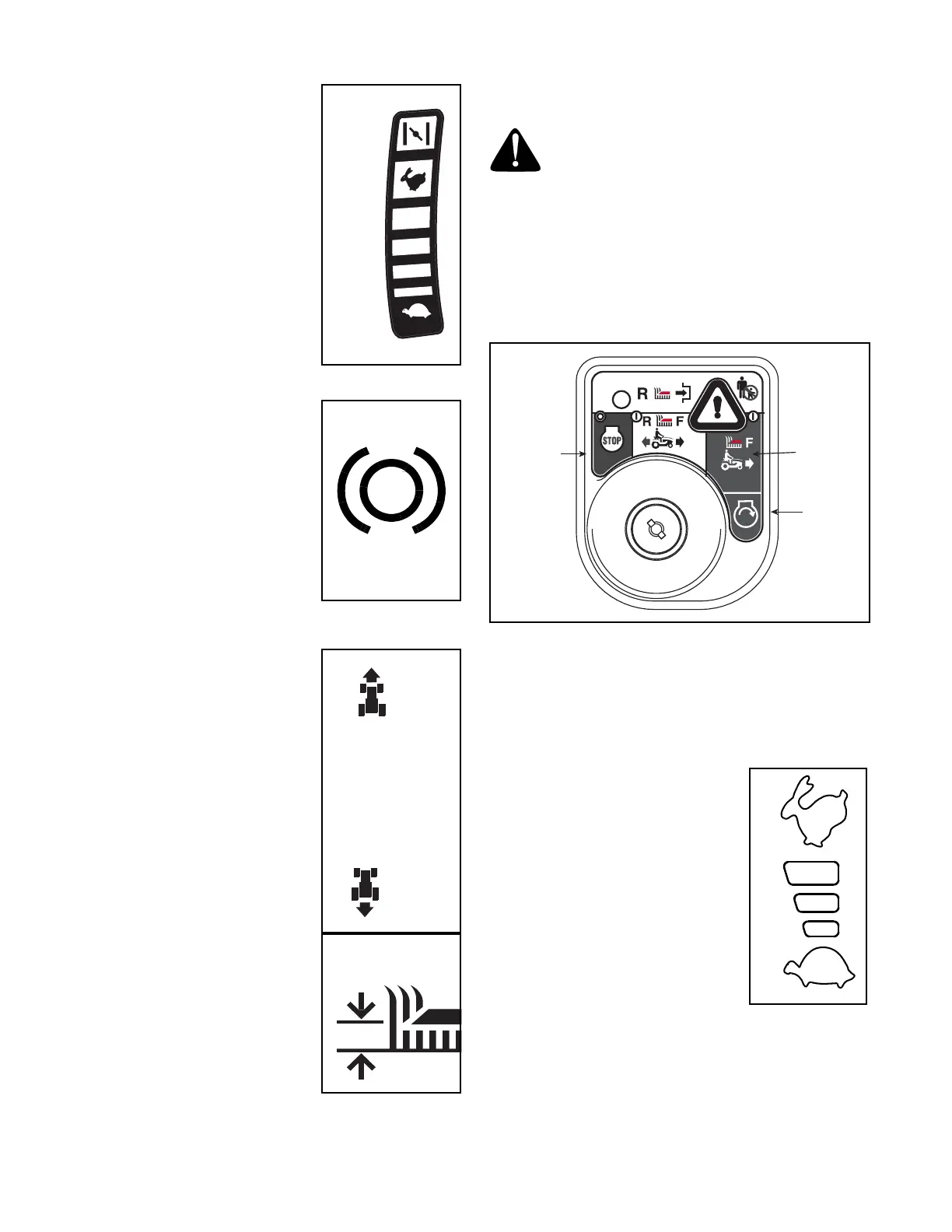

Throttle / Choke Control
The throttle/choke control is
located on the right side of the
tractor’s dash panel. This lever
controls the speed of the engine
and, when pushed all the way
forward, closes the choke for cold
starting. When set in a given
position, the throttle will maintain
a uniform engine speed.
IMPORTANT: When operating the
tractor with the cutting deck
engaged, be certain that the
throttle/choke control is always
in the FAST (rabbit) position.
Brake Pedal
The brake pedal is located on the
right front side of the tractor
above the drive pedal along the
running board. The brake pedal
can be used for sudden stops or
setting the parking brake.
NOTE: The brake pedal must
be fully pressed to activate the
safety interlock switch when
starting the tractor
.
Shift Lever
The shift lever is located on the
left side of the fender and has
three positions, FORWARD,
NEUTRAL and REVERSE. The
brake pedal must be depressed
and the tractor must not be in
motion when the moving shift
lever. See Figure 10.
IMPORTANT: Never force the shift
lever. Doing so may result in
serious damage to the tractor’s
transmission.
Deck Lift Lever
Found on your tractor’s right
fender, the deck lift lever is used
to change the height of the
cutting deck. To use, move the
lever to the left, then place in the
notch best suited for your
application.
Ignition Switch Module
WARNING: Never leave a running machine
unattended. Always disengage the PTO,
move the shift lever into Neutral, set the
parking brake, stop the engine and remove
the key to prevent unintended starting.
To start the engine, insert the key into the ignition
switch and turn clockwise to the START position.
Release the key into the NORMAL MOWING MODE
position once the engine has fired.
To stop the engine, turn the ignition key
counterclockwise to the STOP position. See Figure 8.
Figure 8
IMPORTANT: Prior to operating the tractor, refer to Safety
Interlock System on page 16 and Reverse Caution Mode on
page 16 of this manual for detailed instructions
regarding the Ignition Switch Module and operating the
tractor in REVERSE CAUTION MODE.
Drive Pedal
The drive pedal is located on the
right side of the tractor, along the
running board. Press the upper
portion of the drive pedal forward to
cause the tractor to travel forward.
Press the lower portion of the drive
pedal with the ball of your right foot
(NOT your heel) to cause the tractor
to travel in reverse. Ground speed is
also controlled with the drive pedal.
The further forward or rearward that
the pedal is pivoted, the faster the
tractor will travel. The pedal will
return to its original position when it’s not pressed.
IMPORTANT: Always set the parking brake when
leaving the tractor unattended.
Choke
Position
CI00171
N
F
R
Start
Position
Stop
Position
Normal
Mowing
Mode
