• Pinch the tabs on the oil drain valve, then pull
outward to begin draining oil. See Figure 17 .
• After the oil has finished draining, push the oil drain
valve back in, until the tabs click into place. Re-cap
the end of the oil drain valve to keep debris from
entering the drain port.
• Service the oil filter (if so equipped) as instructed
in the separate engine manual packed with your
unit.
• Refill the engine with the proper capacity and
weight of motor oil as instructed in the separate
engine manual.
To service the air cleaner, refer to the separate engine
manual packed with your unit.
The spark plug(s) should be cleaned and the gap reset
once a season. Spark plug replacement is
recommended at the start of each mowing season;
check engine manual for correct plug type and gap
specifications.
Fuel Filter
WARNING: Do not replace the fuel filter
when the engine is hot.
The engine is equipped with an inline fuel filter located
on the right side of the engine.
Visually inspect the filter periodically for a build-up of
residue inside the filter body, and for a dirty element
which can be indicated by discoloration. Replace the
fuel filter when dirty.
Cleaning the Engine and Deck
Any fuel or oil spilled on the machine should be wiped
off promptly.
Do NOT allow debris to accumulate around the cooling
fins of the engine or on any other part of the machine,
especially the belts and pulleys.
Lubrication
WARNING: Before lubricating, repairing, or
inspecting, always disengage PTO, move
shift lever into neutral position, set parking
brake, stop engine and remove key to prevent
unintended starting.
Engine
Lubricate the engine with motor oil as instructed in the
Engine Owner’s Manual packed with your unit.
Pivot Points & Linkage
Lubricate all the pivot points on the drive system,
parking brake and lift linkage at least once a season
with light oil.
Front Wheels
Each of the front wheel axles is equipped with a grease
fitting. Lubricate with 251HEP grease or equivalent No.
2 multi purpose lithium grease after every 25 hours of
tractor operation. See Figure 18.

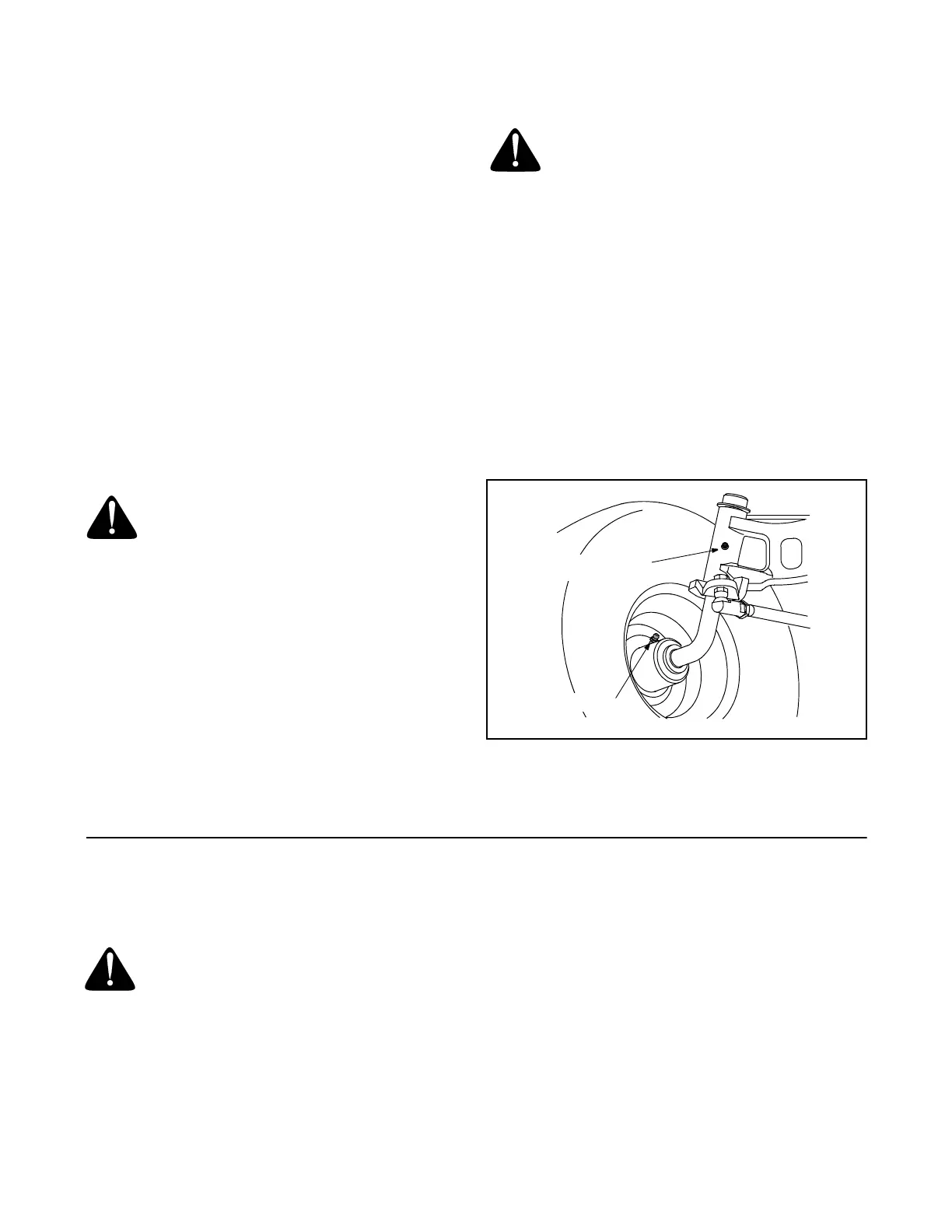

Figure 18
SECTION 9: SERVICE
Tires
WARNING: Never exceed the maximum
inflation pressure shown on the sidewall of the
tire.
The recommended operating tire pressure is 10 psi for
the rear tires and 14 psi for the front tires. Do not
overinflate. Uneven tire pressure could cause the
cutting deck to mow unevenly.
Fuse
A 20 amp fuse is installed in your tractor’s wiring
harness to protect the tractor’s electrical system from
damage caused by excessive amperage.
If the electrical system does not function, or your
tractor’s engine will not crank, first check to be certain
that the fuse has not blown.
It can be found under the hood mounted between the
dash panel and fuel tank on the right-hand support bar.
IMPORTANT: Always use a 20 amp fuse for
replacement.
Rim Grease Fitting
Axle Grease Fitting
