Toro Multi-Pro 5700 Installation Instructions

movethegrommettowardthe112cm(44
inches)wireharnessbranch(Figure9).

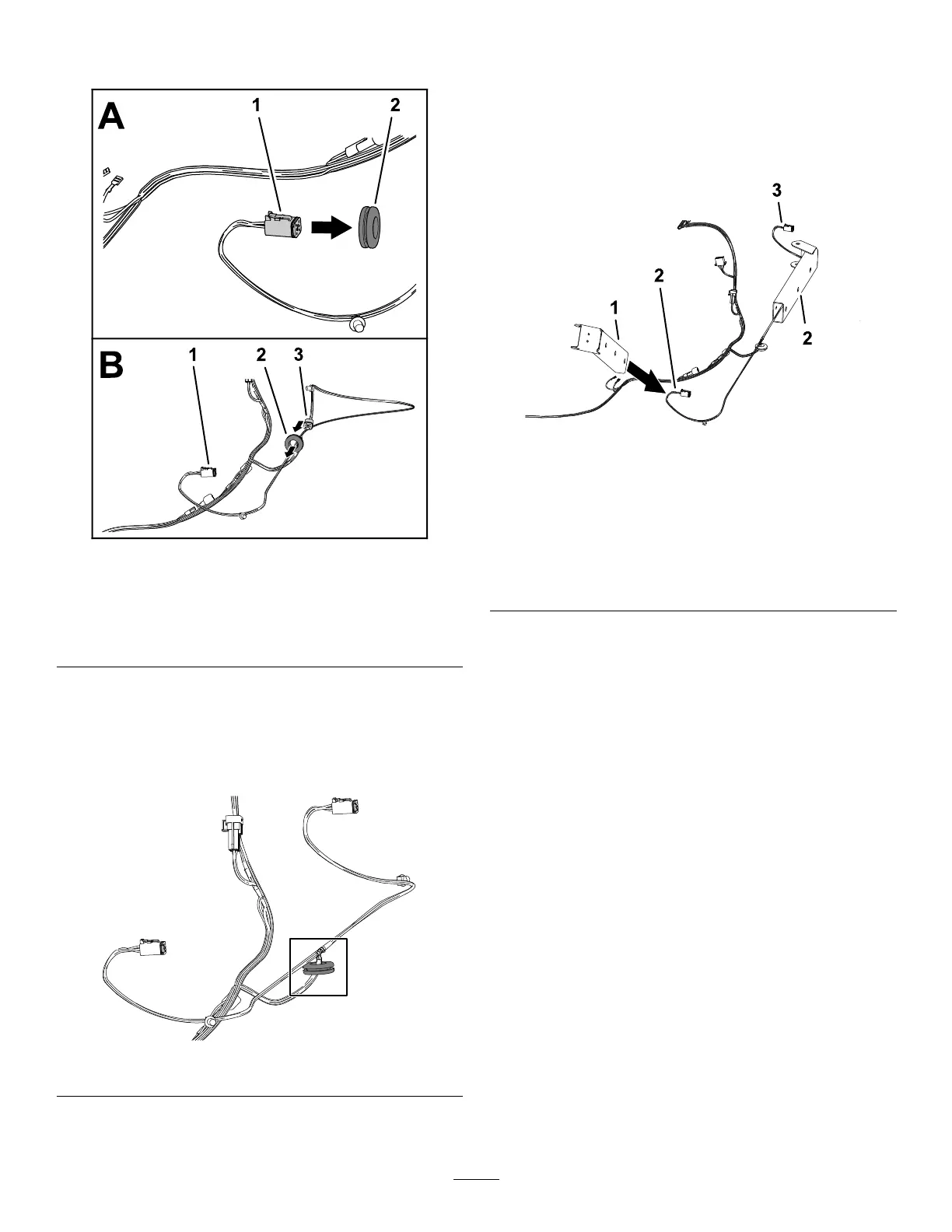

g207895
Figure8
1.6-socketconnector(RIGHT
FRONTTURN/RUNNING
LIGHT)
3.6-socketconnector(LEFT
FRONTTURN/RUNNING
LIGHT)
2.Grommet
2.Alignthe6-socketconnectorfortheLEFTFRONT
TURN/RUNNINGLIGHTofthe99cm(39inches)
wireharnessbranchthroughthegrommet
(Figure8).
3.PositionthegrommetasshowninFigure9.
g207891
Figure9
AssemblingtheWireHarnessto
theWorklightSupport
1.Assemblethe2worklightmountsontothe112
cm(44inches)wireharnessbranchandthe99
cm(39inches)wireharnessbranchasshown
inFigure10.
g207890
Figure10
1.Worklightmount
3.99cm(39inches)wire
harnessbranch—LEFT
FRONTTURN/RUNNING
LIGHT
2.112cm(44inches)wire
harnessbranch—RIGHT
FRONTTURN/RUNNING
LIGHT
2.Aligntheholesinthesupportchannel,spacer,
andworklightmountasshowninFigure11.
6
