Toro Recycler 20010 - Air Filter; Draining Gasoline

11
CAUTION
POTENTIAL HAZARD
• If you leave the wir e on the spark plug, someone could start the engine.
WHA T CAN HAPPEN
• Accidental starting of engine could seriously injur e you or other bystanders.
HOW T O A V OID THE HAZARD
• Pull the wir e off of the spark plug befor e you do any maintenance. Also push wir e aside so it
does not accidentally contact spark plug.

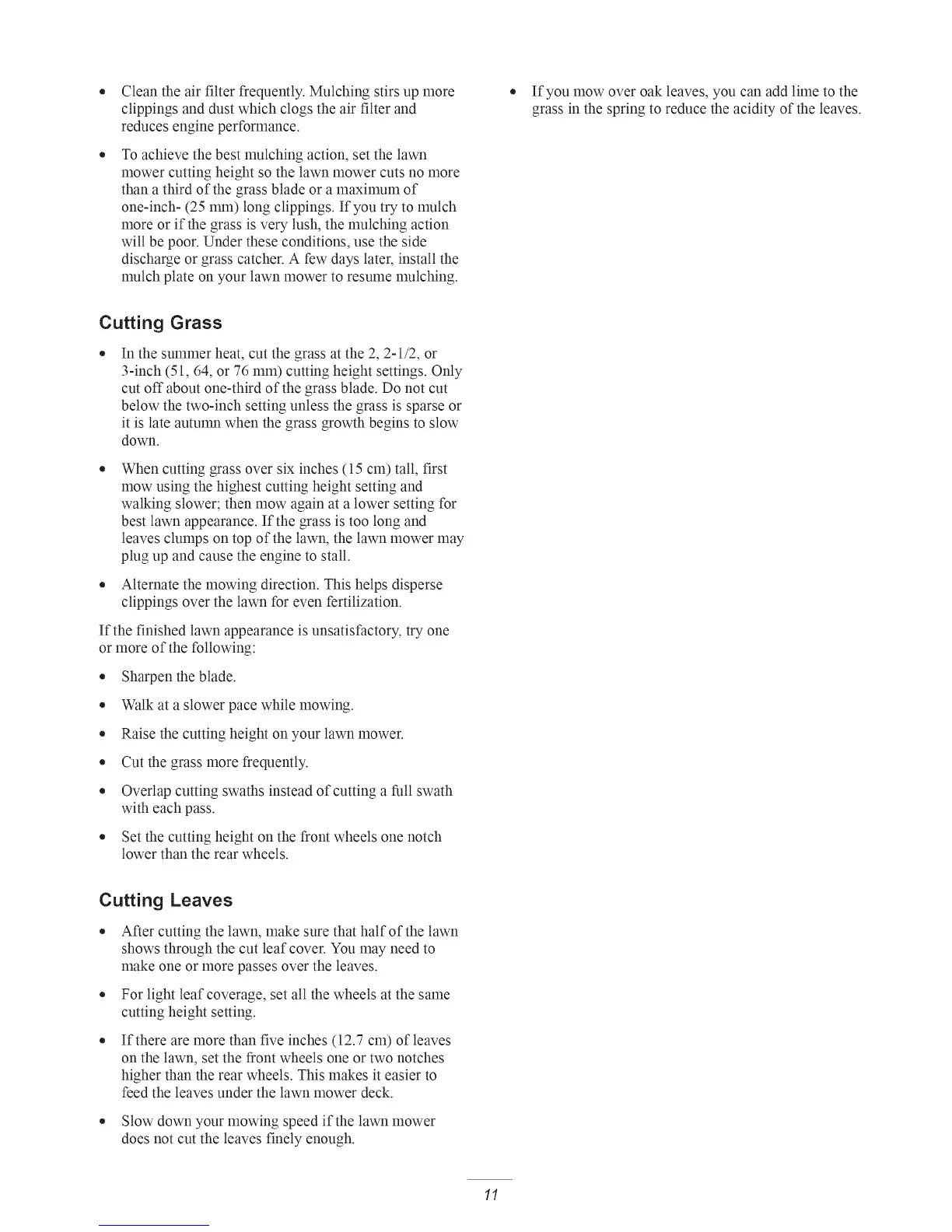

Air Filter
Replace the air filter once every season or every 25 hours;
replace it more frequently under dusty conditions.
IMPORTANT : Do not operate the engine without the
air filter element; extr
eme engine damage will occur .
Models 20010, 20020, 20021, and 20028
1. Stop the engine and pull the wire of f of the spark plug
(Fig. 18).
2. Loosen the screw securing the air cleaner cover
(Fig. 15).
3. T ilt the cover down and clean it thoroughly (Fig. 15).
1003
1
2
3
Figure
15
1. Air filter
2. Screw
3. Cover
4. Remove the paper air filter and discard it (Fig. 15).
IMPORTANT : Do not try to clean a paper filter .
5.
Insert a new paper air cleaner filter (Fig. 15).
6. Install the air cleaner cover and secure it with the
screw.
Model 20060
1. Stop the engine and pull the wire of f of the spark plug
(Fig. 18).
2. Remove the nut securing the air cleaner cover
(Fig. 16).
3. Remove the cover and clean it thoroughly (Fig. 16).
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
m–4193
1
3
2
4
Figure
16
1. Cover
2. Nut
3. Foam pre–cleaner
4. Air filter
4. Remove the foam pre–cleaner and wash it with a mild
deter gent and water , then blot it dry (Fig. 16).
5. Saturate the precleaner with oil, then squeeze it (do
not twist) to remove excess oil.
6. Remove the paper air filter and discard it (Fig. 16).
IMPORTANT : Do not try to clean a paper filter .
7.
Insert a new paper air cleaner filter .
8.
Insert the foam pre-cleaner into the cover and install
the cover on the engine, securing it with the nut
(Fig. 16).
Draining Gasoline
1. Stop the engine and wait for it to cool.
IMPORTANT : Drain gasoline fr om a cold engine only .
2.
Pull the wire off of the spark plug (Fig. 18).
3. Remove the cap from the fuel tank and use a
pump-type syphon to drain the fuel into a clean gas
can.
