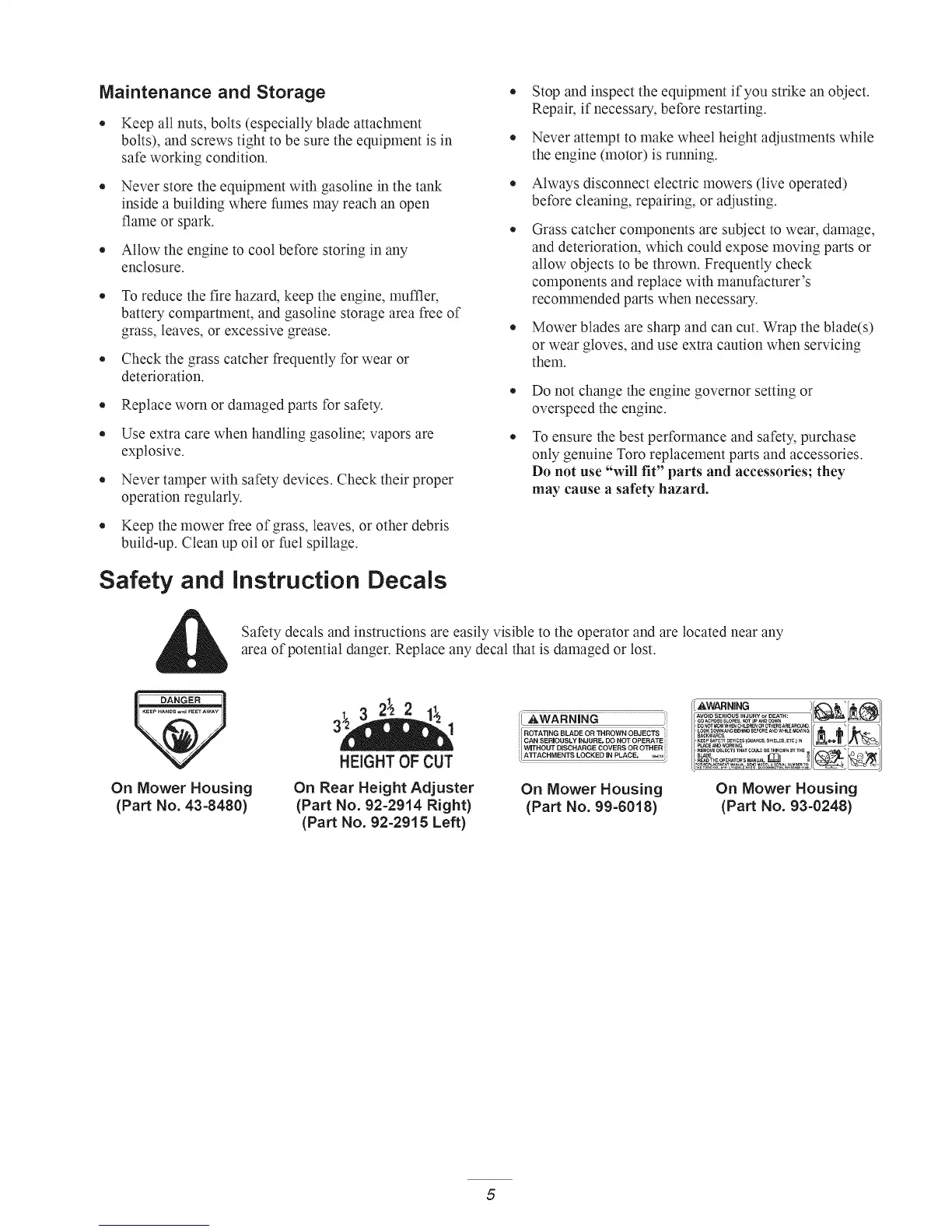

Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near any
area of potential danger . Replace any decal that is damaged or lost.
ON MOWER HOUSING
(Part No. 43–8480)
ON MOWER HOUSING
(Part No. 93–0248)
ON REAR HEIGHT ADJUSTER
(Part No. 92–2914 Right)
(Part No. 92–2915 Left)
ON MOWER HOUSING
(Part No. 99–6018)
Assembly
Models 20010, 20020, 20028, and 20060
1. Loosen the handle knobs and lift the top handle half in
an arc until the handle halves are in line and nest
together (Fig. 1).
Note: Use care to prevent pinching or stretching the
cables.
2. T
ighten the knobs securely .
3.
Rotate the handle toward rear of the mower until it
snaps into the handle brackets (Fig. 1).
1679
1
2
Figure 1
1. Knob 2. Top handle half
Model 20021
1. Loosen the handle knobs and lift the top handle half in
an arc until the handle halves are in line and nest
together.
2.
Lightly tighten one of the handle knobs.
3. Insert the left end of the lower handle and the end of
the cable guide onto the pin on the left handle
mounting bracket (Fig. 2).
m–4357
1
1
2
Figure 2
1. Handle mounting bracket 2. Cable guide
4. Squeeze the handle together , installing the right end of
the lower handle onto the pin on the right handle
mounting bracket (Fig. 2).
IMPORTANT : Ensur e that the cables ar e r outed on the
inside of the handles and the starter r ope is to the
outside (Fig. 3).
m–4359
2
1
Figure 3
1. Cables 2. Starter rope
5. Tighten both handle knobs securely .
6.
Install the traction cable spring onto the transmission
bracket if it is not already connected (Fig. 4).
