Toro Recycler 20010 - Accessories; Rear Grass Catcher

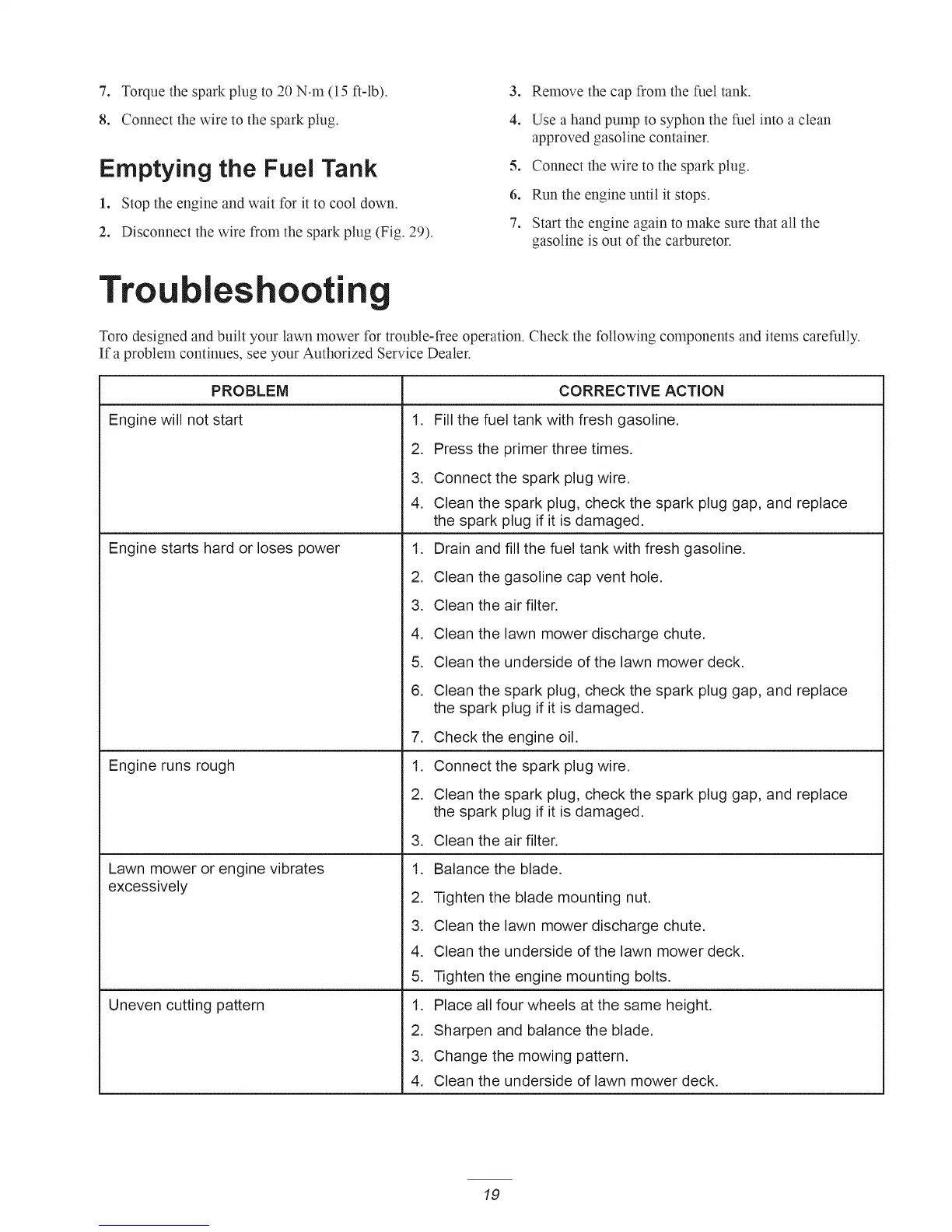

19
1
1626
Figure 34
1. Fuel tank cap
8. Check the engine oil level.
9. Connect the spark plug wire (Fig. 18).
Accessories
Accessories may have been shipped with your mower or
are available from your Authorized T oro Dealer . For
proper installation, follow these instructions.
Rear Grass Catcher
Install Discharge Tunnel
1. Stop the engine and disconnect the spark plug wire
(Fig. 18).
2. Remove the knob and side cover clamp (Fig. 35).
m–4275
1
2
3
Figure 35
1. Knob
2. Side
cover clamp
3. Side opening cover
3. Remove and save the three bolts securing the
dischar ge cover to the mower (Fig. 36). Save the cover
and bolts for future use.
m–4275
3
2
1
Figure
36
1. Discharge cover
2. Bolt (3)
3. Screw and nut
4. Remove the screw and nut from side of the mower
(Fig. 36). Save them for future use.
5. Install four grommets supplied with the grass catcher
into the four square holes in the mower (Fig. 37).
2009
1
Figure
37
1. Grommet (4)
6. Insert the tongue of the discharge tunnel into the
mower (Fig. 38).
7. Align the holes in the tunnel with the grommets in the
mower (Fig. 38).
8. Ensure that the hole in the tongue aligns with the hole
in the side of the mower (Fig. 38).
