9. Connect the wire onto the spark plug.

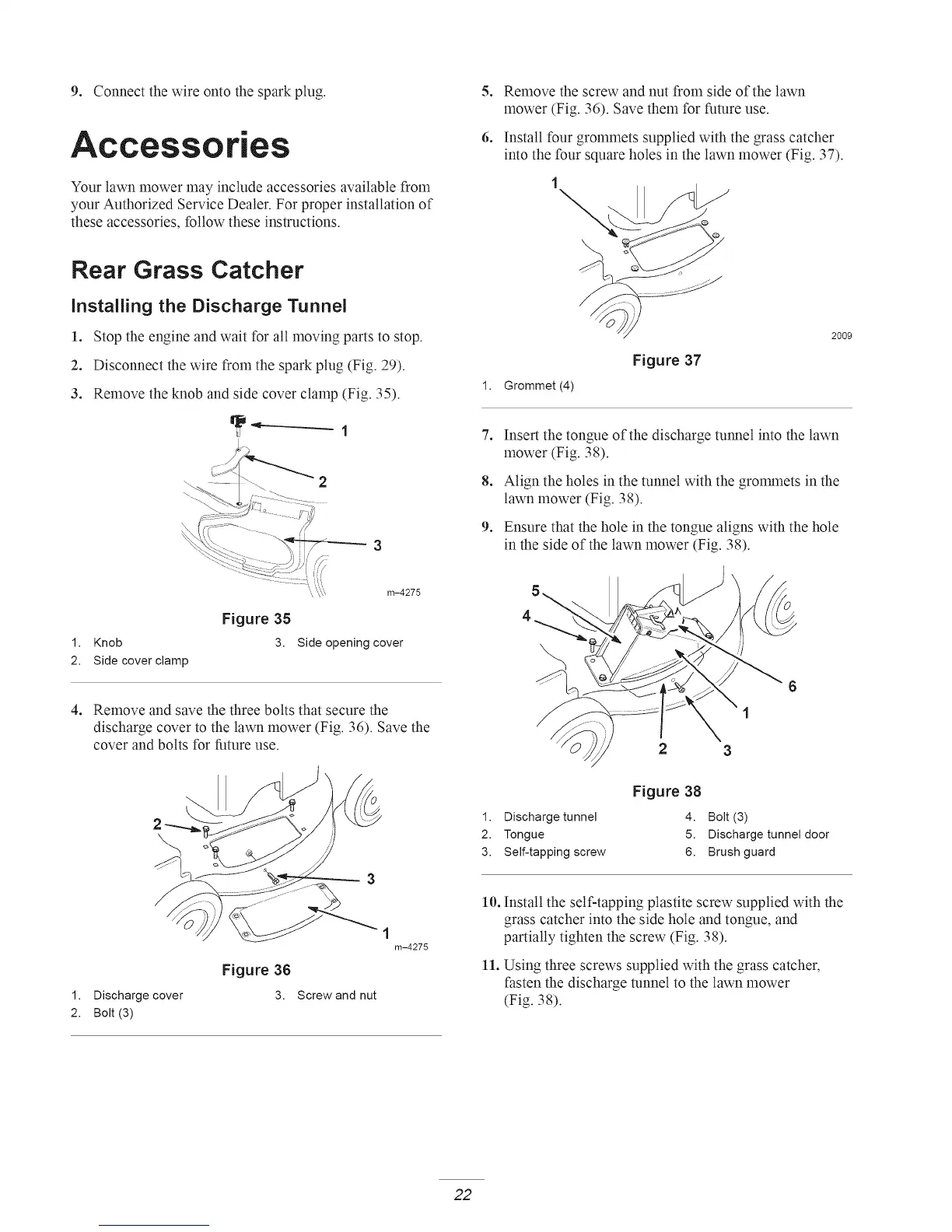

Accessories
Your lawn mower may include accessories available from
your Authorized Service Dealer. For proper installation of
these accessories, follow these instructions.
6,
Remove the screw and nut from side of the lawn
mower (Fig. 36). Save them for future use.
Install four grommets supplied with the grass catcher
into the four square holes in the lawn mower (Fig. 37).
1
\
Rear Grass Catcher
installing the Discharge Tunnel
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 29).
3. Remove the knob and side cover clamp (Fig. 35).
/
2
m-4275
Figure 35
1. Knob 3. Side opening cover
2. Side cover clamp
4. Remove and save the three bolts that secure the
discharge cover to the lawn mower (Fig. 36). Save the
cover and bolts for future use.
1. Grommet (4)
7,
8°
9,
Figure 37
2009
Insert the tongue of the discharge tunnel into the lawn
mower (Fig. 38).
Align the holes in the tunnel with the gronm_ets in the
lawn mower (Fig. 38).
Ensure that the hole in the tongue aligns with the hole
in the side of the lawn mower (Fig. 38).
6
1
2 3
1. Discharge cover
2. Bolt (3)
Figure 36
3.
3
Screw and nut
m-4275
Figure 38
1. Discharge tunnel 4. Bolt (3)
2. Tongue 5. Discharge tunnel door
3. Self-tapping screw 6. Brush guard
10. Install the self-tapping plastite screw supplied with the
grass catcher into the side hole and tongue, and
partially tighten the screw (Fig. 38).
11. Using three screws supplied with the grass catcher,
fasten the discharge tunnel to the lawn mower
(Fig. 38).
22
