Snow Commander Service Manual 4 - 3
DRIVE SYSTEM

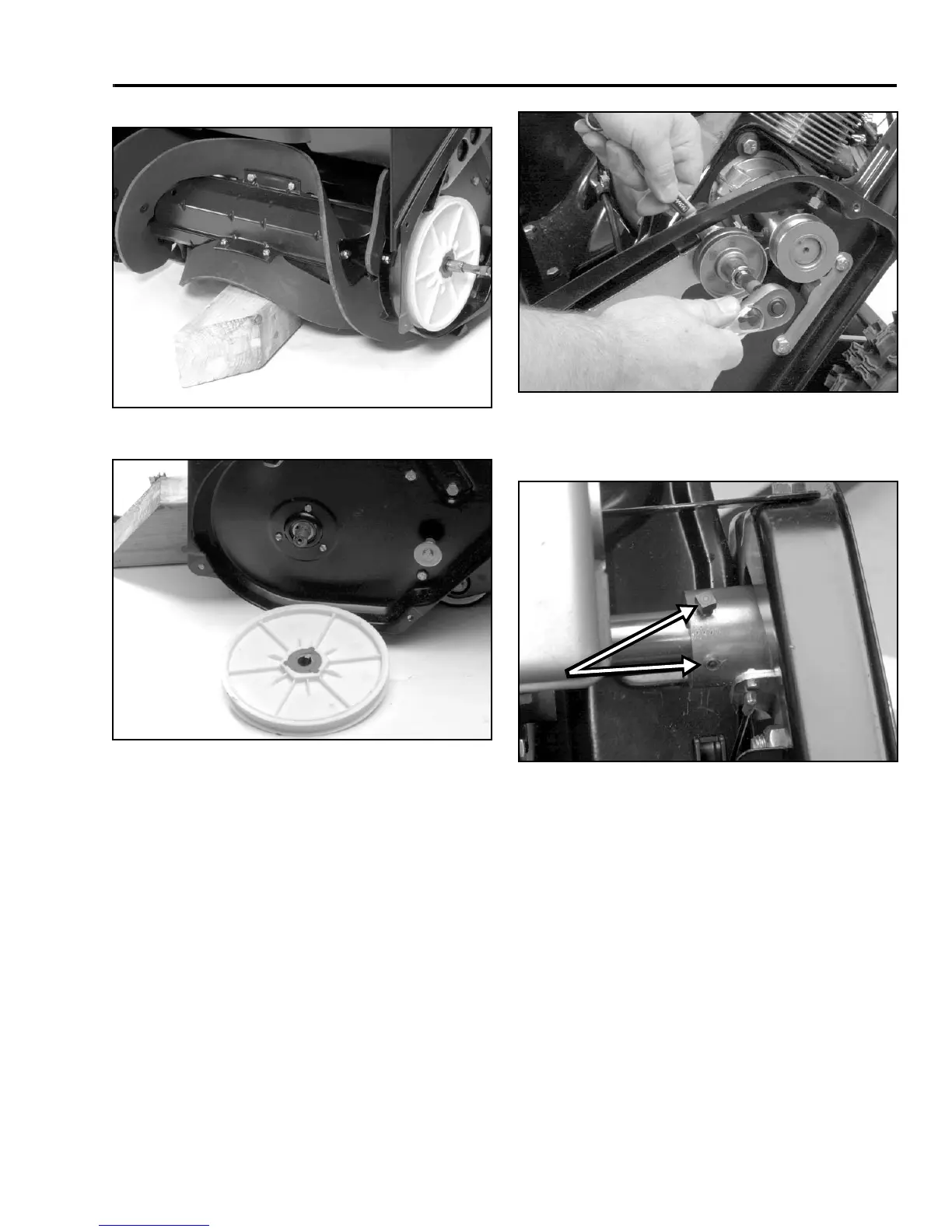

Figure 42 3428-0250
Figure 43 3428-0272
5. Remove upper shroud, refer to “Upper Shroud
Removal” on page 2 - 3.
6. The idler pulley is secured to the idler/brake arm
with a capscrew and locknut (Figure 44).
Figure 44
3428-0244
7. To remove the engine pulley, loosen the setscrews
and pull the pulley straight off (Figure 45).
Figure 45
3428-0237
