6 - 2 Snow Commander Service Manual
The normal resting position is with the engine and rotor
to the rear. A spring connected between the engine
and wheel frame assures that the engine and rotor
return to the resting position when the controls are
released (Figure 76).

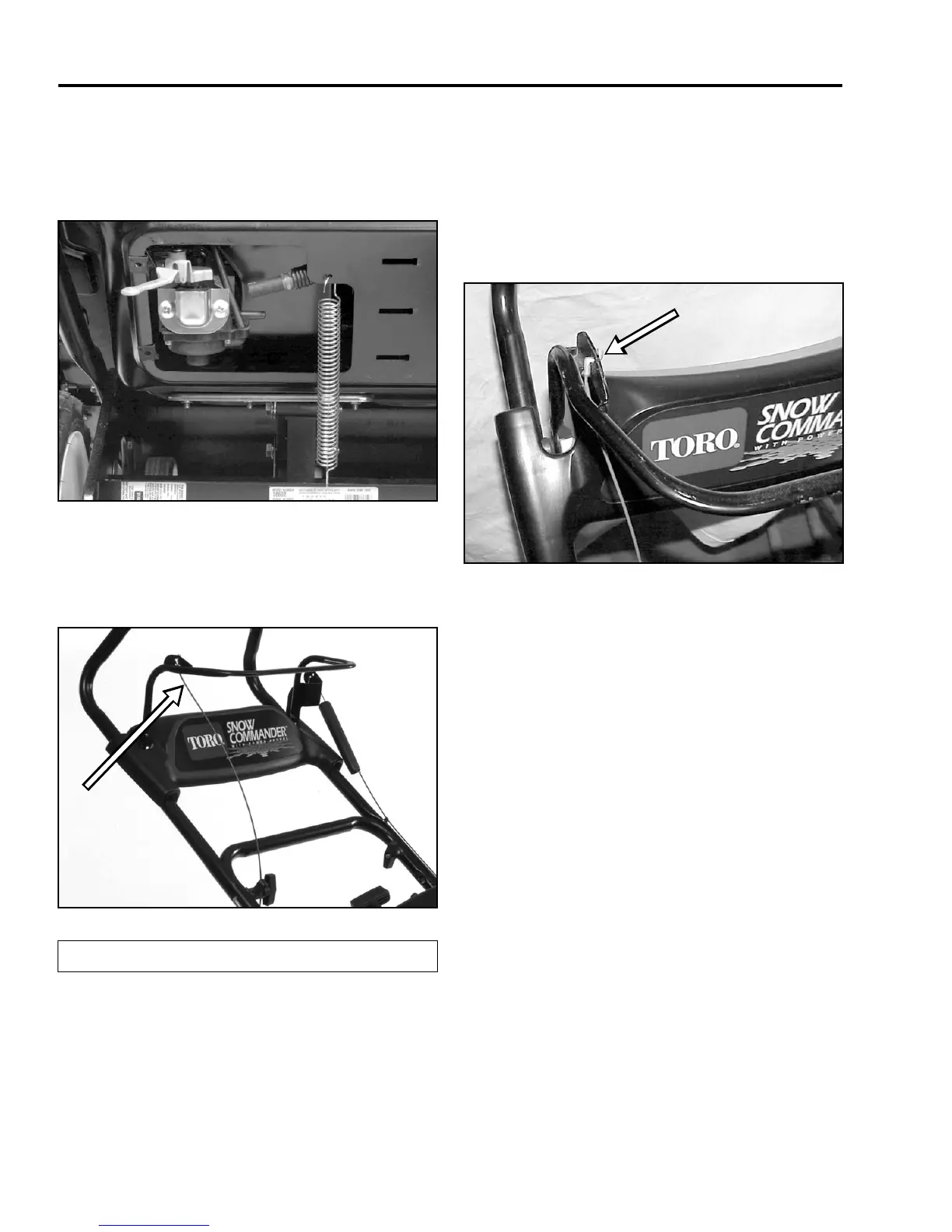

Figure 76
3428-0211
When the operator engages the bail, the cable that
runs down the right-hand handle causes the pivot
assembly to rotate and move the engine and rotor
frame (Figure 77).
Figure 77
3428-0199
Pivot Cable Replacement
Replacement of the tilt cable requires no tools. Both
ends are made with a Z bend and can be removed by
hand only. Insert the Z bend into the handle as shown
in Figure 78. If the cable is not connected this way, it
will have a tendency to come unhooked from the
handle. See "Adjusting the Pivot Cable" on page 7 - 3.
Figure 78
mvc-492
(A) Pivot Cable
A
