Snow Commander Service Manual 1 - 1
GENERAL INFORMATION
Introduction
Read this manual carefully to learn how to operate and
maintain your product properly. The information in this
manual can help you and others avoid injury and
product damage. Although Toro designs and produces
safe products, you are responsible for operating the
product properly and safely.
Engine
The Toro Snow Commanders are powered by a high
output version of the R tek engine (Figure 1). The main
difference between the standard R tek and the version
used on the Snow Commander is in the piston and
cylinder.
The piston has two additional square ports (Figure 2),
which line up with two grooves machined in the
cylinder wall (Figure 3). As the piston goes down and
compresses the fuel/air charge in the crankcase, the
ports in the piston uncover the grooves in the cylinder
wall. This provides extra area for the fuel charge to
move to the firing chamber. The result is a larger fuel
charge, which makes more power.

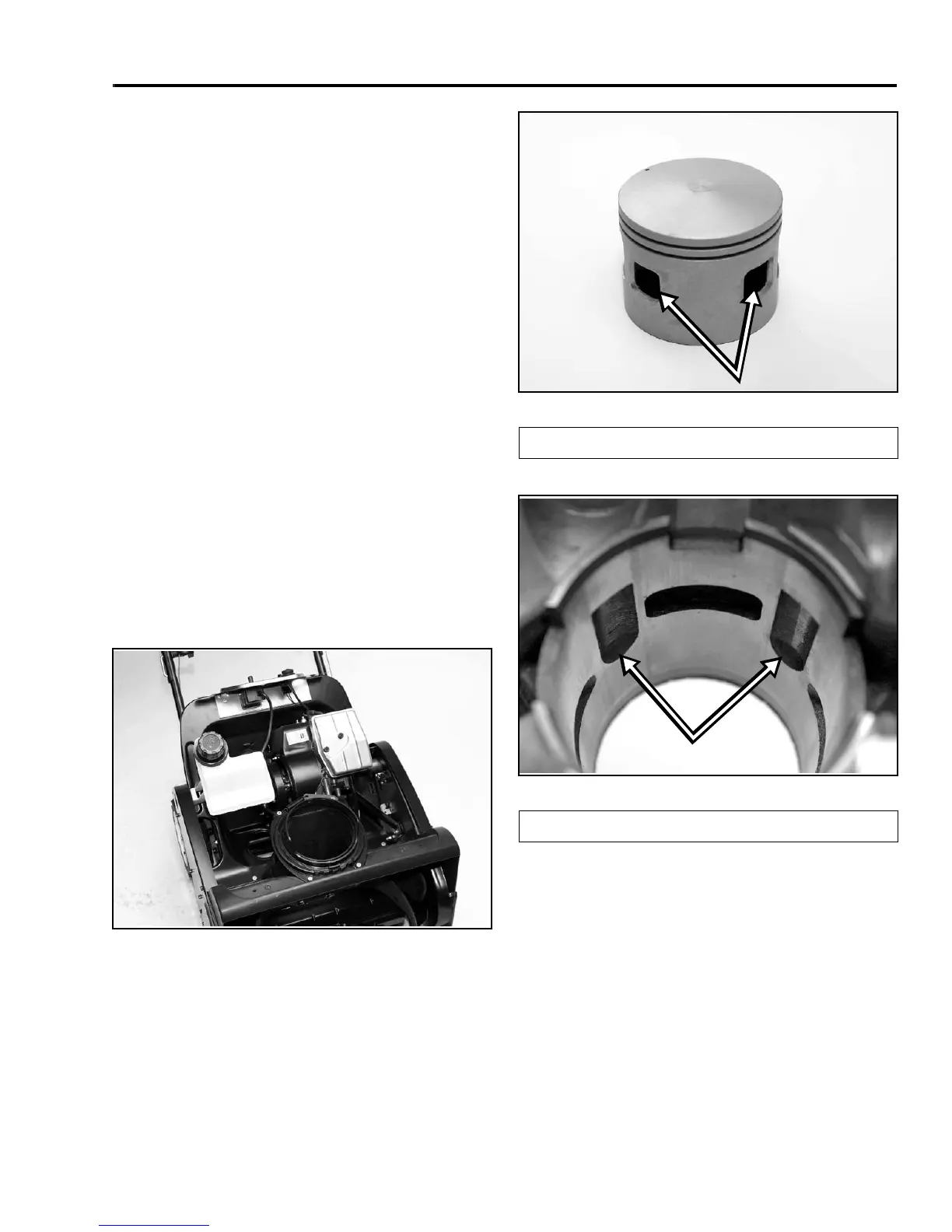

Figure 1
DSC-0138
Figure 2 DSC-0037
Figure 3 DSC-0032
All service procedures and techniques are the same as
those on the other R tek engines. See E Engine
Service Manual, Form #492-0647.
(A) Ports
(A) Grooves
