CHASSIS
Transmission Cable Replacement
(Cont.)
Replacement
1. Place the looped end of the cable on the spring
(Figure 31)..
2. Install the two bolts holding the cable to the chassis.
Torque bolts to 60-80 in-lbs. (7-9 Nm) (Figure 32).
3. Insert the bolt through the bolt holes from inside the
belt cover into the bracket. Tighten bolts to 60-80
in-lbs. (7-9 Nm) (Figure 33).
4.Insert the cable end into its retainer (Figure 34).
5. Install the LH upper shroud and belt cover. Torque
shroud bolts to 25-35 in-lbs. (2.8-4 Nm). Torque
cover bolts to 60-80 in.-lbs. (7-9 Nm).

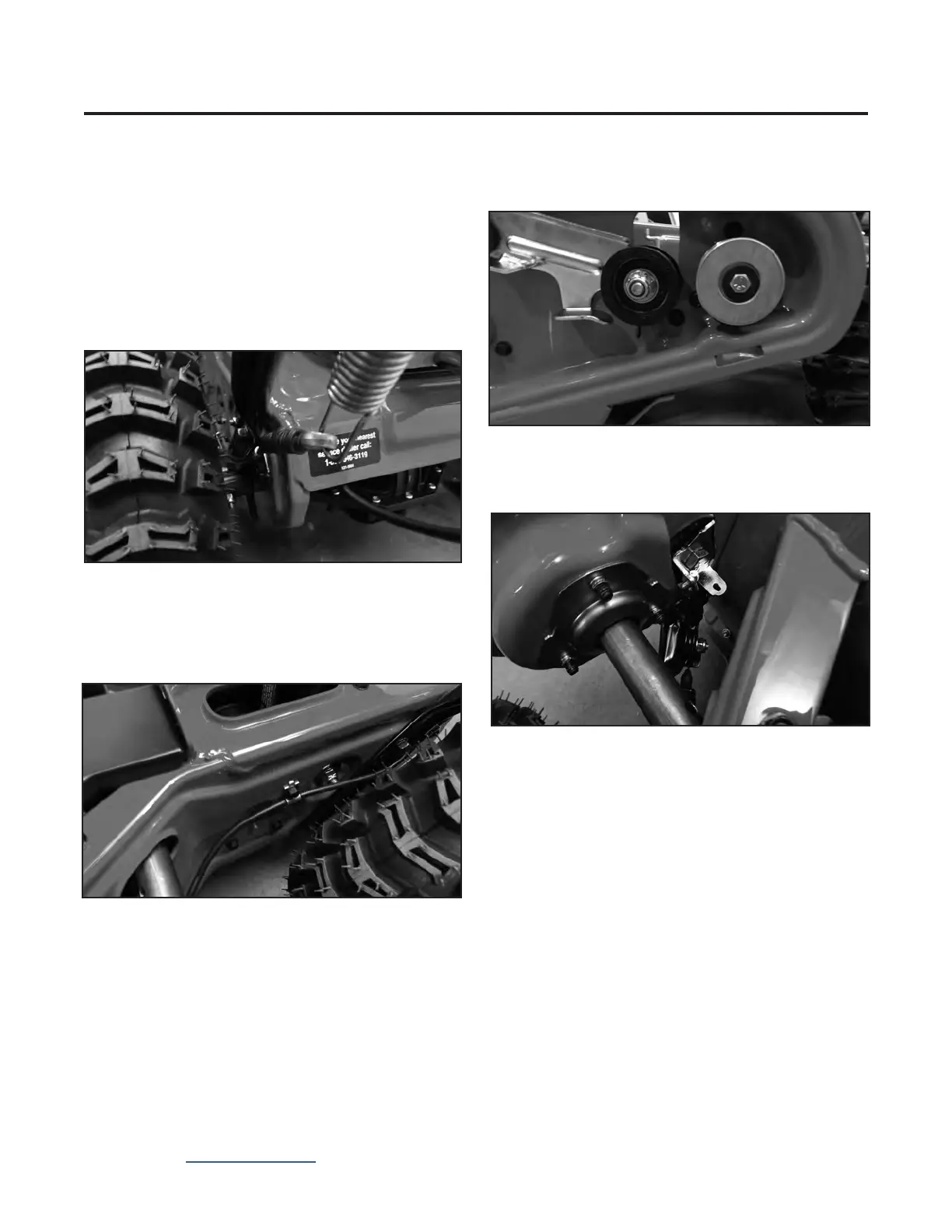

Figure 32
Figure 33
Figure 34
Figure 31
