CHASSIS
Scraper Removal and Replacement
(Figure 73)
Removal
1.Remove the six bolts that attach the scraper (Figure
73, item 3) to the housing (Figure 74).
Replacement
1. Install the new scraper and torque bolts to 96 in-lbs.
(11 Nm)
Paddle Removal and Replacement
Removal
1. Remove the three bolts that attach the paddle to the
rotor (Figure 75).
Replacement
1. Insert he new paddle behind the center support.
Install the new paddles, tighten the center bolt first.
Torque bolts to 45-55 in-lbs. (5.2-6.3 Nm) (Figure
76). Refer to page 2-6, Figure 3.

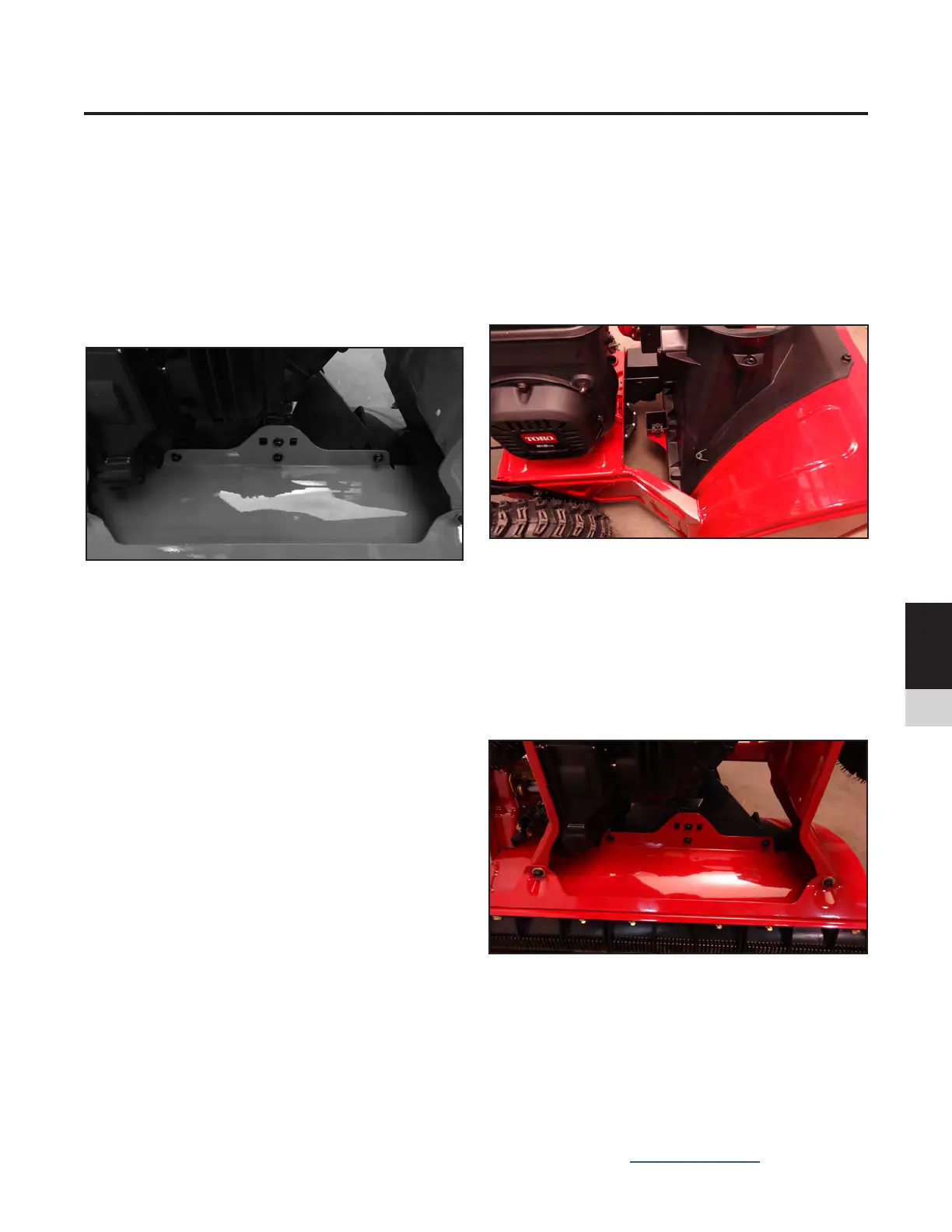

Figure 74
Figure 75
Figure 76
