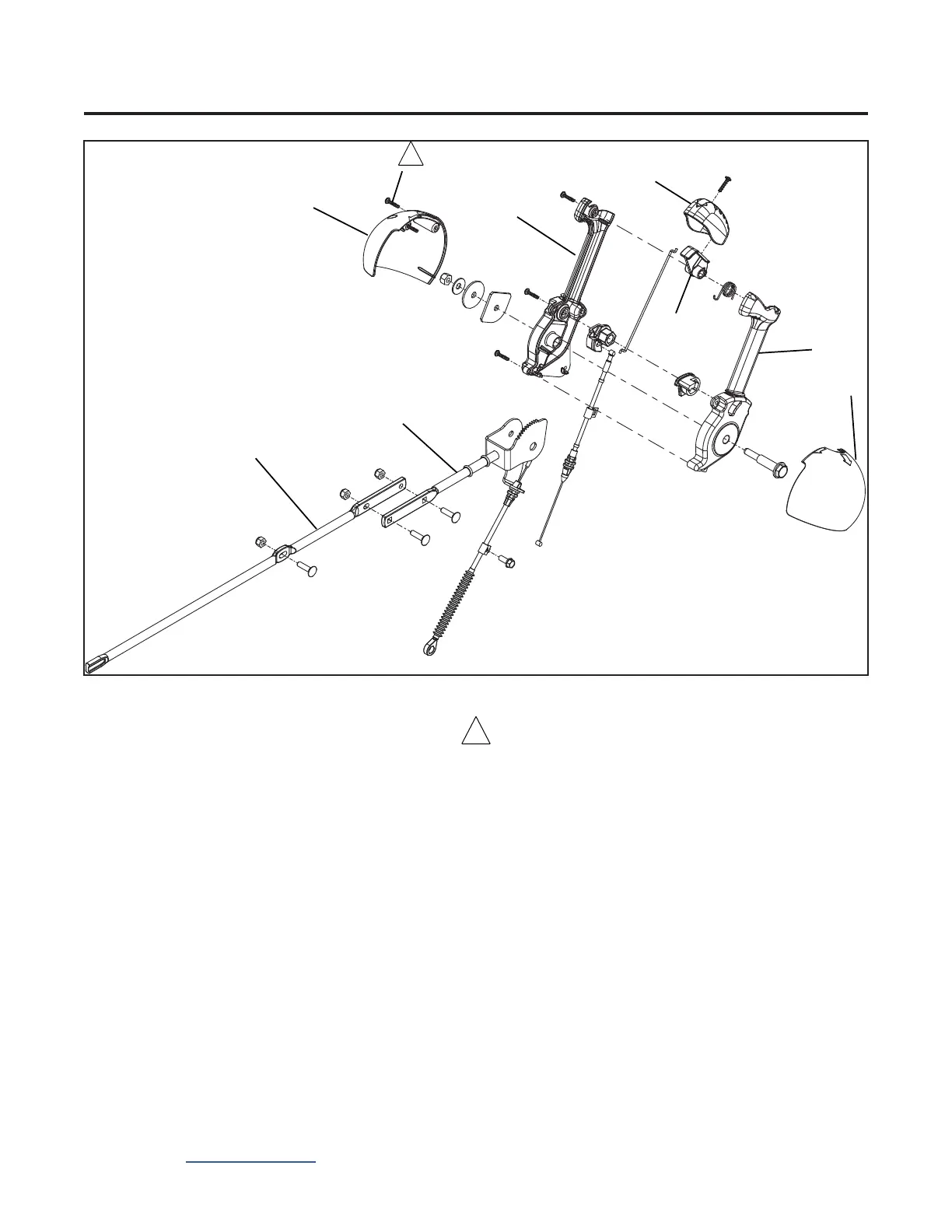

CHASSIS
1. Latch Trigger
2. LH Chute Lever Cover
3. Chute Control Rod
4. Lever Cap
5. RH Chute Control Lever
6. LH Chute Control Lever
7. RH Chute Lever Cover
8. Chute Rod
Torque to 5-10 in-lbs. (0.5-1.1 Nm)
1
1
2
3
4
5
6
7
8
1
Figure 77
