CHASSIS
Clocking the Quick Stick
1. Make sure the Quick Stick handle is in the center
position.
2. Remove the two screws holding the front cover on
(Figure 78).
3. Loosen the two screws holding the chute gear
mount to the Quick Stick chute post (Figure 79).
4. Disengage the pawl and pull back on the face gear/
chute gear mount. Rotate the chute until it faces
straight ahead. (Figure 80).
5. Once clocking is set, tighten the two screws holding
the gear chute mount to the quick stick chute
mount to 50-60 in-lbs. (5.7-6.9 Nm).
6. Using the quick stick, ensure the chute rotates fully
to the left and right.
7. Install the top cover. Torque bolts to 6-10 in-lbs. (7-
1.1 Nm).

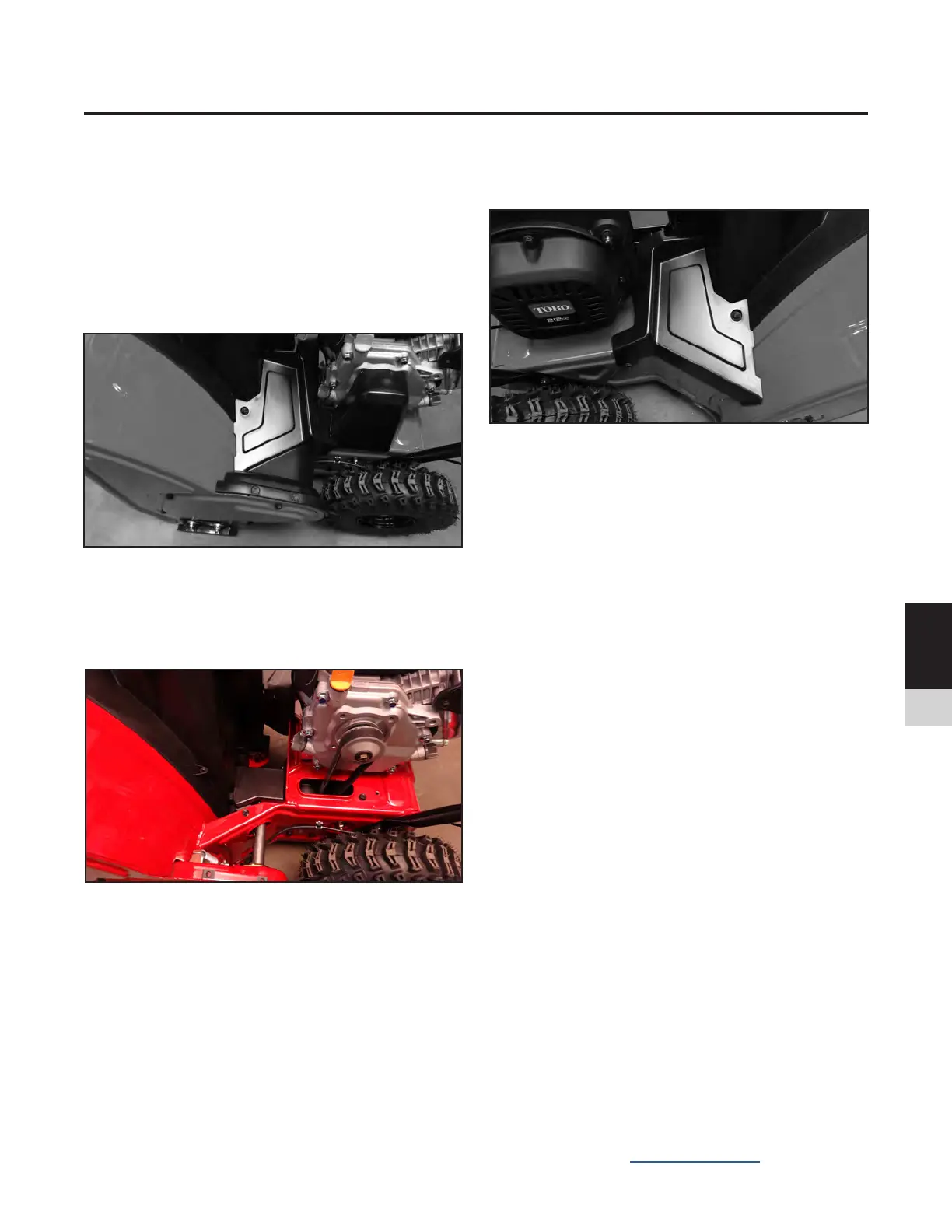

Figure 78
Figure 79
Figure 80
