Toro TimeCutter MX 4260 - Product Operation and Controls; Product Overview

ProductOverview
g017641
9
2
1
5 3
4
7
2
10
8
6
11
12

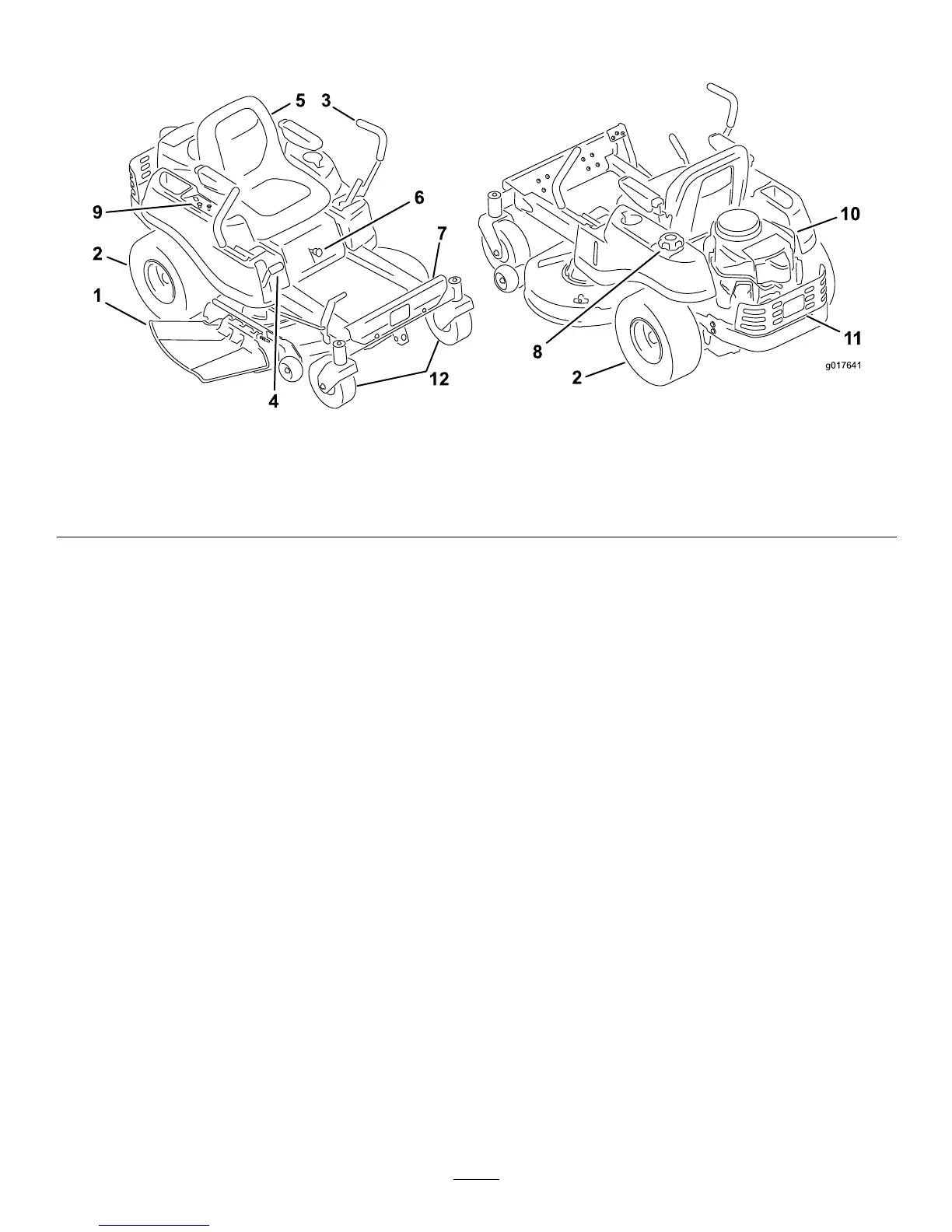

Figure4
1.Deector4.Heightofcutlever
7.Footrest10.Engine
2.Reardrivewheel
5.Operatorseat
8.Fueltankcap
11.Engineguard(certain
modelsonly)
3.Motioncontrollevers
6.SmartSpeed™lever9.Controlpanel
12.Frontcasterwheel
