4.Connectagreaseguntoeachtting(Figure25and
Figure26).Pumpgreaseintothettingsuntilgrease
beginstooozeoutofthebearings.
5.Wipeupanyexcessgrease.
EngineMaintenance
ServicingtheAirCleaner
Note:Servicetheaircleanermorefrequently(every
fewhours)ifoperatingconditionsareextremelydusty
orsandy.
RemovingtheElement
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrol(PTO).
2.Movethemotioncontrolleverstothebrakeposition,
stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Cleanaroundtheaircleanercovertopreventdirt
fromgettingintotheengineandcausingdamage.
Liftthecoverandremovethehoseclampsecuring
theaircleanerassemblytotheengine(
Figure27).
4.Loosenthehoseclampandremovethepaper
element(
Figure27).
G014908
1
2
3

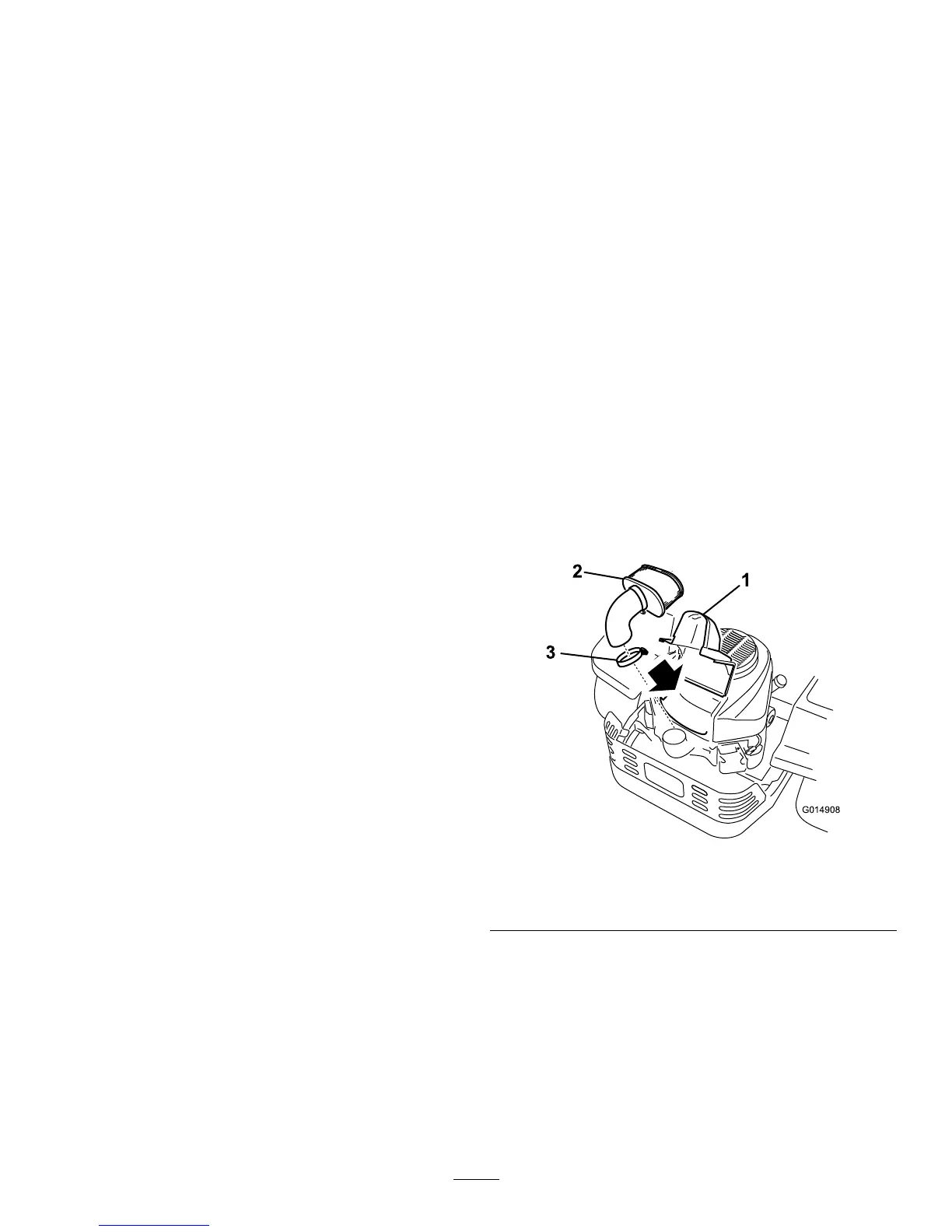

Figure27
1.Cover
3.Hoseclamp
2.Paperelement
CleaningtheElement
ServiceInterval:Every100hours—Servicethepaper
element.(moreoftenindusty,dirty
conditions)
Every200hours/Yearly(whichever
comesrst)—Replacethepaper
element.(moreoftenindusty,dirty
conditions)
