Toro TimeCutter MX 4260 - Premaintenance Procedures; Raising the Seat; Lubrication; Greasing the Bearings

Premaintenance
Procedures
RaisingtheSeat
Makesurethemotioncontrolleversarelockedinthe
parkposition.Lifttheseatforward.
Thefollowingcomponentscanbeaccessedbyraising
theseat:
•Serialplate
•Servicedecal
•Seatadjustmentbolts
•Fuellter
•Batteryandbatterycables
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseall
lubricationpoints.
GreaseType:No.2GeneralPurposeLithiumBase
Grease
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
2.Movethemotioncontrolleversoutwardtothe
parkposition,stoptheengine,removethekey,and
waitforallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanthegreasettings(
Figure25andFigure26)
witharag.Makesuretoscrapeanypaintoffofthe
frontofthetting(s).
1
G014522

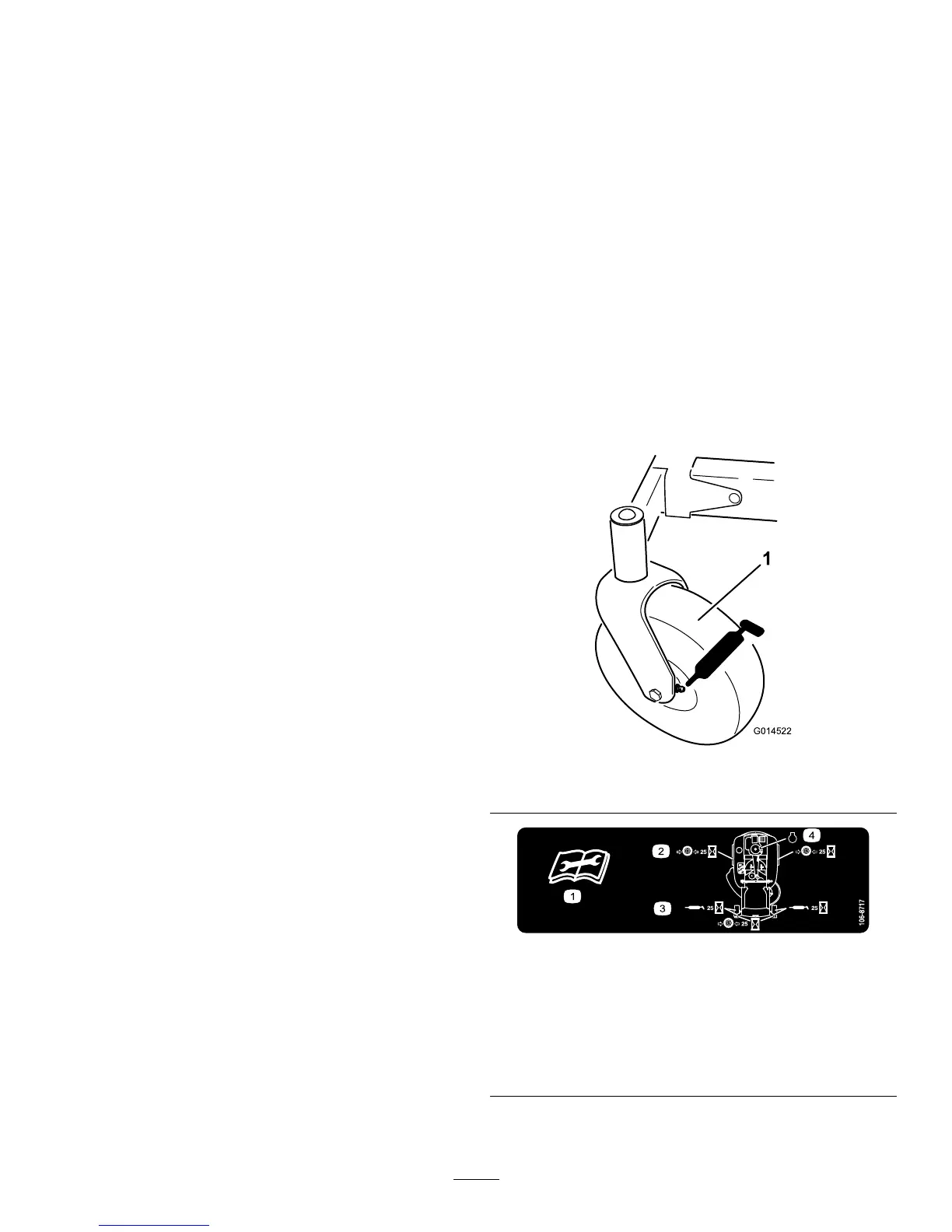

Figure25
1.Frontcastertire
Figure26
Locatedontheseatpanunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance.
3.Greaseevery25operating
hours.
2.Checktirepressureevery
25operatinghours.
4.Engine
27
