MOWER DECKS
TimeCutter™ Z Service Manual 7 - 9
7
Place the unit on a level surface. Check and
adjust the tire pressure, if necessary.
Measure the length of the rear trunion rods. The
distance between centers should be 11.5” (29.3
cm).
If necessary, loosen the jam nut. Remove the
spring clip and washer, and turn the rod to
achieve the correct length.
Reinstall the trunion rods and raise the deck to
the 3” (7.6 cm) position. Rotate the blades until
the ends face forward and backward.

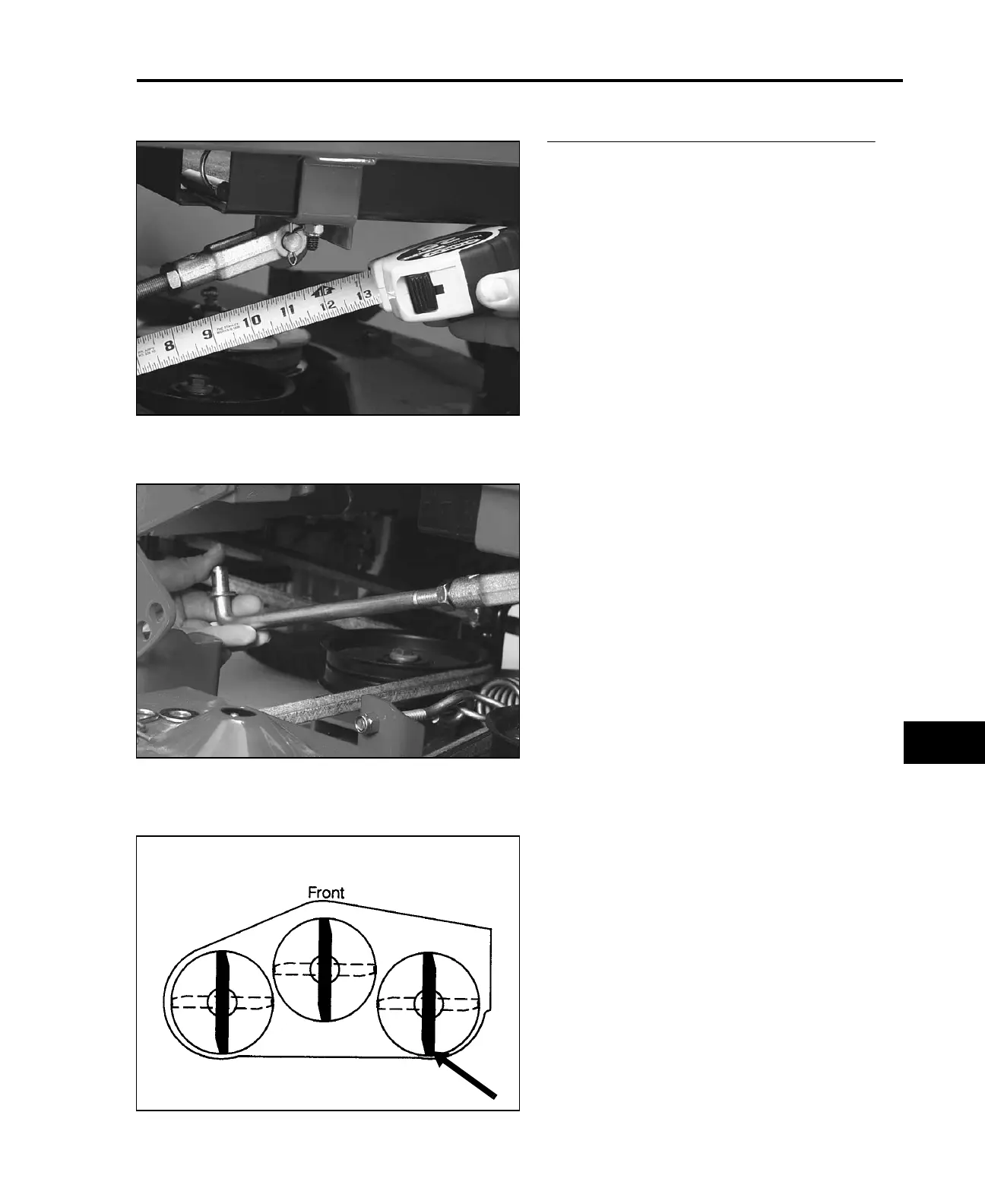

0702-0709
0702-0710
0702-0711
Mower Deck Front to Rear Adjustment
