ENGINE
TimeCutter™ Z Service Manual 4 - 9
4

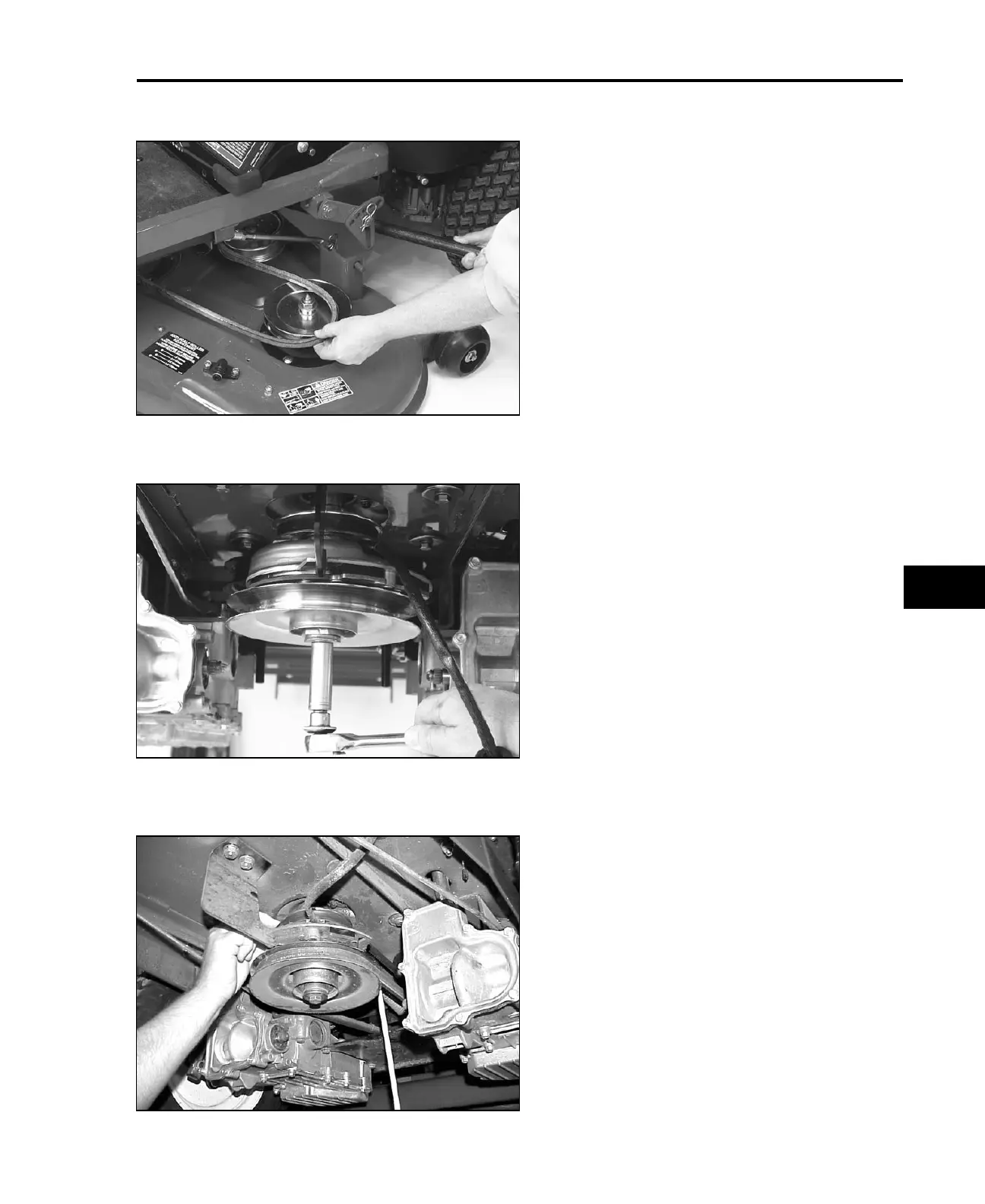

Remove mower drive belt. See complete
procedure in Chapter 8.
Remove the clutch bolt and lower the clutch
assembly.
Remove traction drive belt.
Move the idler pulley to lessen the tension on the
traction drive belt and slip the belt up off the
engine drive pulley. Then remove the clutch and
drive pulley from the crankshaft.
0702-0417
0702-0418
0702-0419
