5 - 8 TimeCutter™ Z Service Manual
TRANSAXLE
5

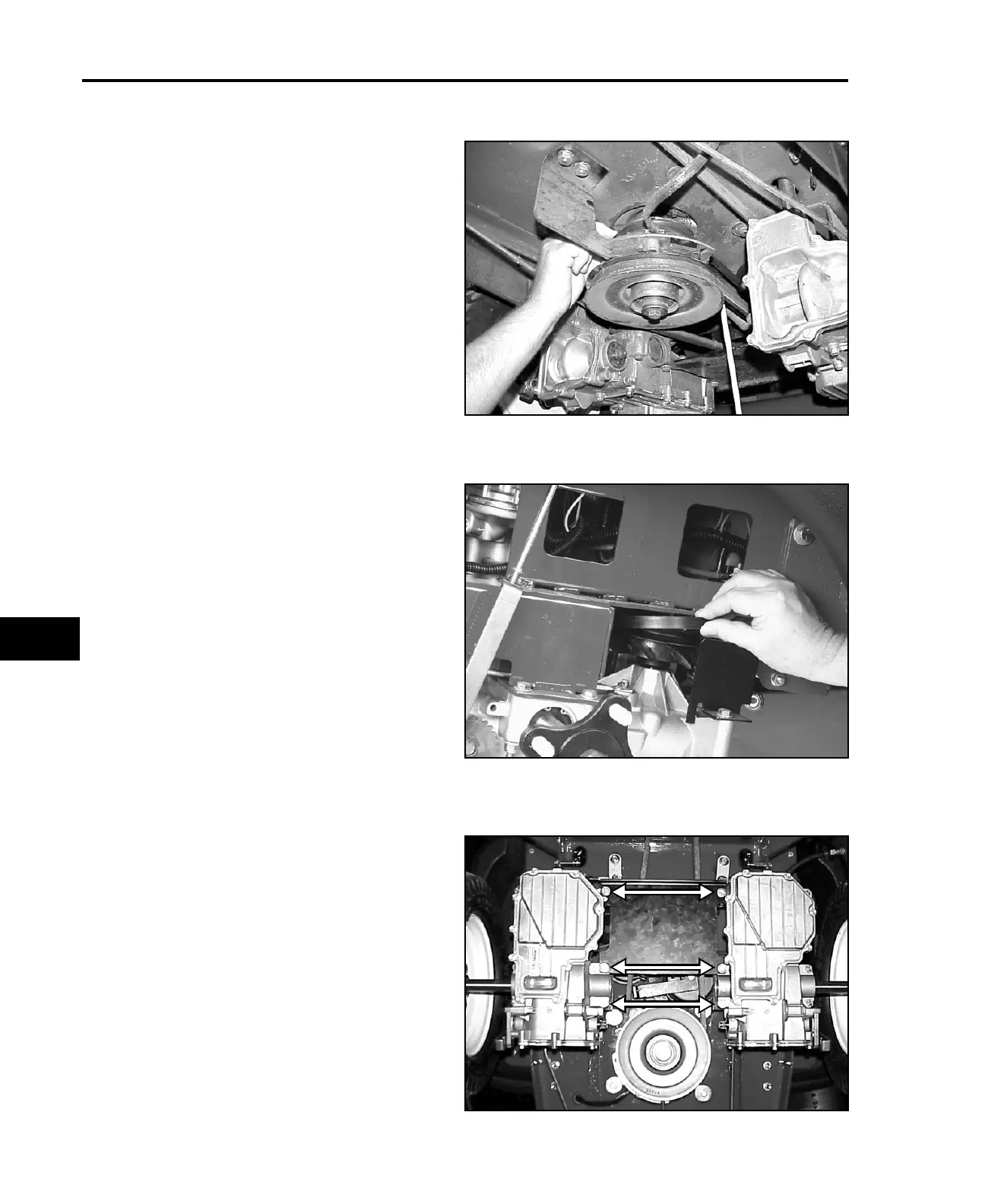

Move the idler pulley to lessen the tension on the
traction drive belt and slip the belt up off the
engine drive pulley.
Remove the belt from the transaxle being
removed.
Loosen and remove the 6 bolts and washer
between both transaxles. Remove the hydro
lower plate. Note the orientation of the hydro
lower plate. It must be reinstalled with the lip
facing down, toward the front.
0702-0419
0702-0512
0702-0513
