Toro TimeCutter Z17-44

TRANSAXLE
TimeCutter™ Z Service Manual 5 - 11
5

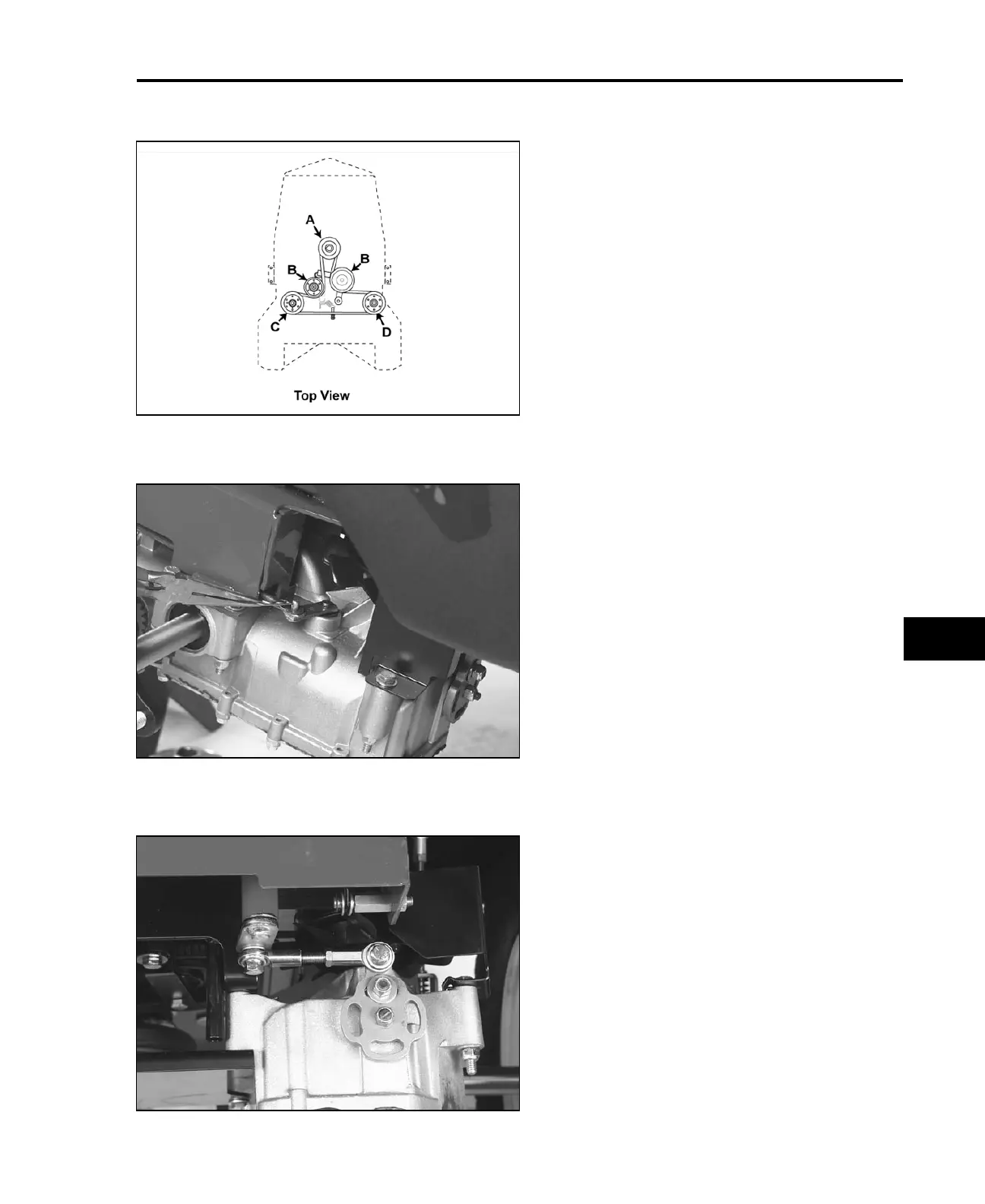

Place the traction belt on the pulley. Check for
correct belt routing.
(A) Engine Pulley
(B) Idler Pulley
(C) Right Hydro
(D) Left Hydro
Install the hairpin cotter pin and washer on the
bypass valve lever.
Reinstall the motion control link.
1s-0802
0702-0511
0702-0517
