CHASSIS
TimeCutter™ Z Service Manual 6 - 13
6

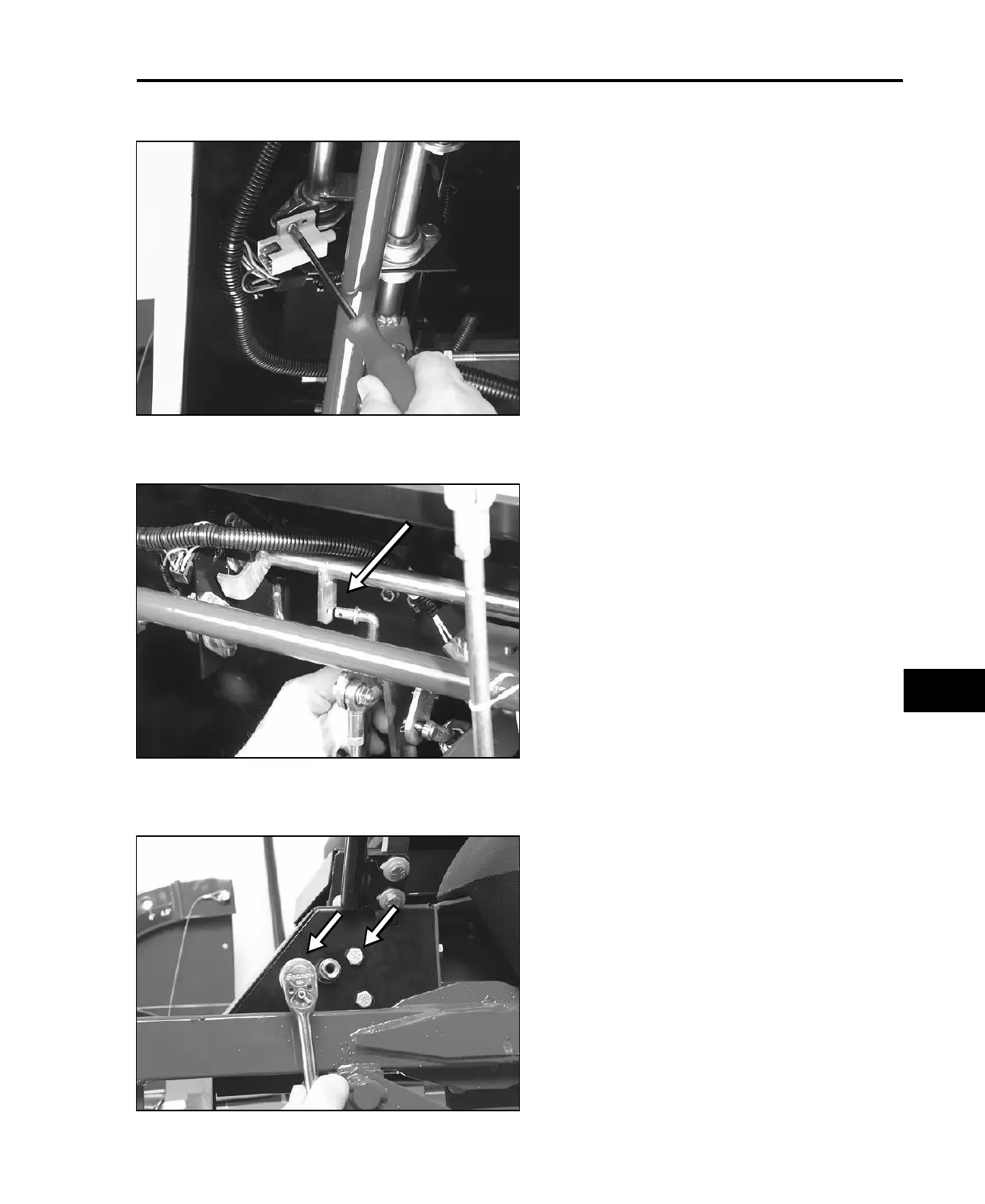

Remove the brake switch.
Remove the cotter pin and washer from the
brake rod, and remove the rod.
Remove the two bolts and nuts securing the
bushing.
0702-0620
0702-0621
0702-0622
