3.Lowerthemowertothe3inch(76mm)height-of-cut
position.
4.Removethebeltcovers(
Figure66).
G015789
1 2
3
Figure66
1.Loosenthescrews3.Removebeltcover
2.Pivotthebeltcoverup
5.Usingaspringremovaltool,(Toropartno.92-5771),
removetheidlerspringfromthedeckposttoremove
tensionontheidlerpulley(Figure67).
G009806
1
2
3
4
5
Figure67
1.Springremovaltool(T oro
partno.92-5771)
4.Idlerarm
2.Idlerspring5.Mowerbelt
3.Deckpost
6.Lowerthemowertothelowestheight-of-cut.Place
theheight-of-cutpininthelockpositionforlowest
height-of-cut.
7.Removethebeltfromthemowerdeckpulleysand
removetheexistingbelt.
8.Installthenewbeltaroundthemowerpulleysand
theclutchpulleyundertheengine(
Figure67).
WARNING
Thespringisundertensionwheninstalledand
cancausepersonalinjury.
Becarefulwhenremovingthebelt.
9.Usingaspringremovaltool,(Toropartno.92-5771),
installtheidlerspringoverthedeckpostand
placingtensionontheidlerpulleyandmowerbelt
(
Figure67).
10.Ensurethatthebeltisproperlyseatedinallpulleys.

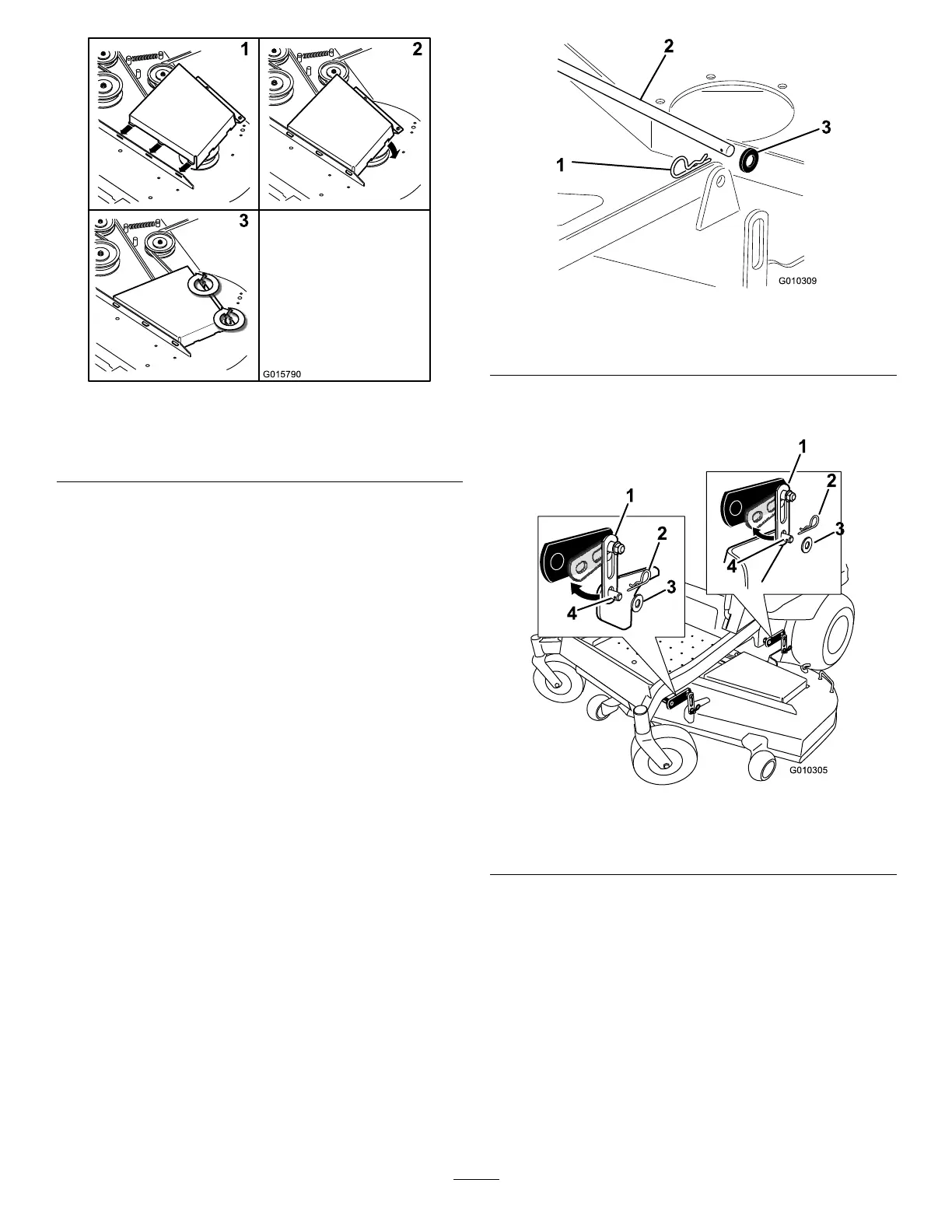

11.Installthebeltcovers(Figure68).
G015790
1 2
3
Figure68
1.Positionthebeltcover,
ensurethetabsseat
3.Tightenthescrews
2.Pivotthebeltcoverdown
RemovingtheMower
Parkthemachineonalevelsurfaceanddisengagethe
bladecontrolswitch.Movethemotioncontrollevers
outwardtotheneutralposition,engageparkingbrake,
stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
Lowerthemowertothe3inch(76mm)height-of-cut
position.Removethemowerbeltfromtheengine
pulley;refertotheReplacingtheMowerBeltprocedure.
Lowerthemowertothelowestheight-of-cut.Selectone
