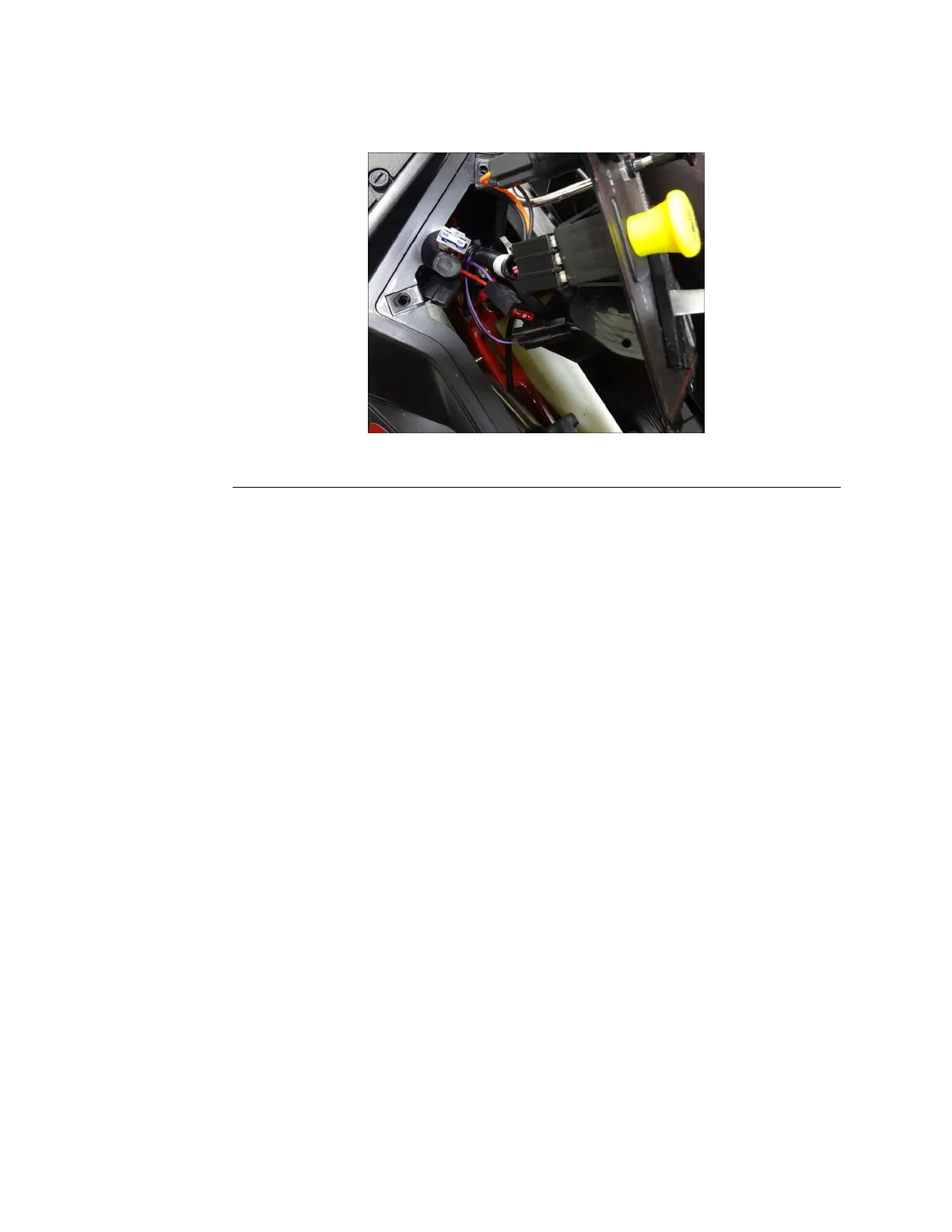

FuseBlockandFuses
Thefuseblockhousesthefusesthatprotecttheelectricalsystemfromelectrical
surges.
Note:AlwaysuseTorofuseswhenreplacingadamagedorblownfuse.
g322165
Figure85
FuseBlockandFusesTesting
1.VisualInspection:Thefusesusedinthisapplicationmaybevisually
inspected.Afailedfusecanbeidentiedbyabrokenormeltedelement
insidethefusecoveroradamagedspade.
2.Usingadigitalmulti-metersettotheOHMorContinuitysetting,removethe
fuseandcheckthecontinuitybetweenthefuseblades.IfthefuseisOPEN
(nocontinuity),replacethefuseandtestthecircuit.
Key/IgnitionSwitch
Theignitionswitchmakestheproperconnectionsforthestarter,safety
circuits,andaccessories.Detentsinsidetheswitchcontrolthethreeswitch
positions:OFF,RUN,andSTART .TheSTARTpositionisspringloadedsothatit
automaticallyreturnstotheRUNpositionwhenreleased.
IgnitionSwitchWiringConnections
Key/IgnitionSwitchTesting
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake
2.Removethecontrolpanelfromtherightconsole.
3.Disconnecttheharnessfromtheignitionswitch.Gentlyrocktheconnector
backandforthuntilunplugged.
4.Usingadigitalmulti-metersettotheOHMorContinuitysetting,verifythat
continuityexistsbetweentheterminalslistedforeachswitchposition.
Electrical:ServiceandRepairs
Page8–4
TitanServiceManual
3438-774RevA

Toro TITAN Specifications

General

Cutting Width	60 inches
Fuel Capacity	5 gallons
Transmission	Hydrostatic
Warranty	3 years
Deck Material	Steel
Cutting Height	1.5 to 4.5 inches
Speed	8.5 mph / 13.7 km/h
