ParkingBrakeSwitch(continued)

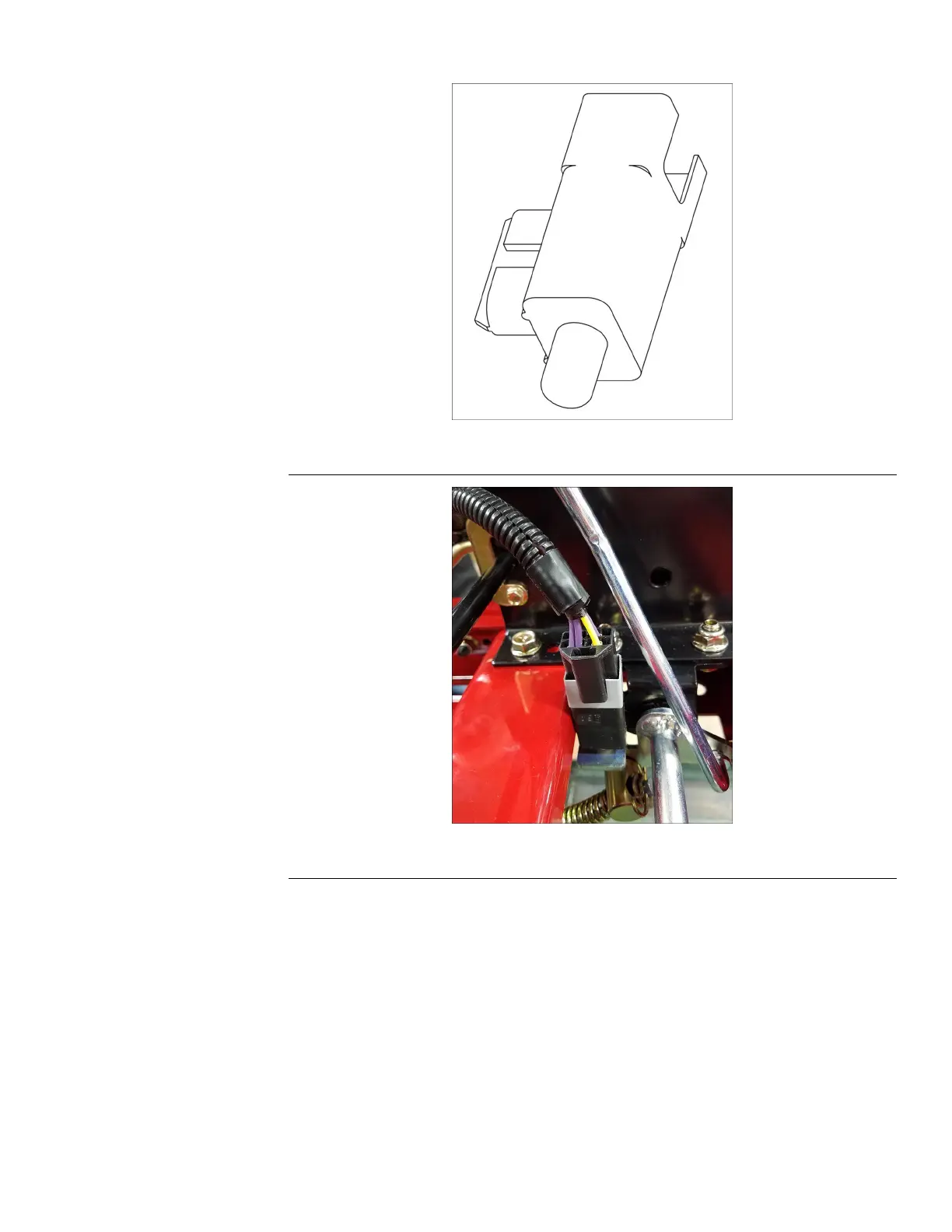

g322166
Figure89
g322160
Figure90
StarterSolenoid
Thesolenoidisaremoteswitchthatconnectsthebatterytothestartermotor
whentheignitionswitchisturnedtoSTART .Thesolenoidprotectstheignition
switchfromthehighcurrentdrawnbythestartermotor.
TitanServiceManual
Page8–7
Electrical:ServiceandRepairs
3438-774RevA
