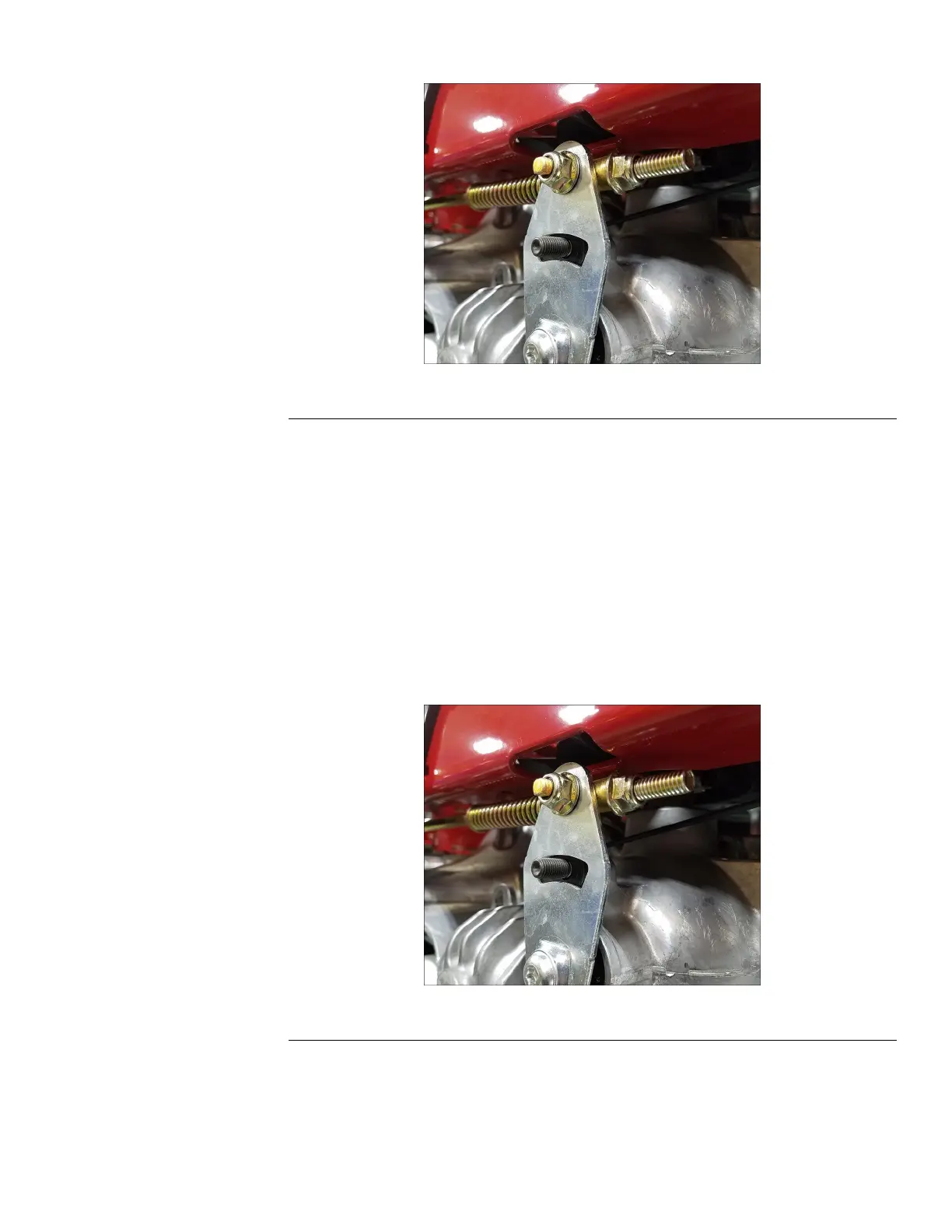

NeutralAdjustment(continued)
g321828
Figure56
9.Stoptheengineandlowertheunit.
10.Verifyproperneutralsettingandtracking.
TrackingAdjustment
IftheunittracksorpullstotheRIGHT
TurntheLHadjustmentnut1fullturnclockwise.Ifmoreadjustmentisneeded,
turntheadjustmentnut1fullturnatatime.
IftheunittracksorpullstotheLEFT
TurntheRHadjustmentnut1fullturnclockwise.Ifmoreadjustmentisneeded,
turntheadjustmentnut1fullturnatatime.
g321828
Figure57
HydroChangeProcedure
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake
TitanServiceManual
Page6–5
HydrostaticDriveSystem:ServiceandRepairs
3438-774RevA
