Toro TITAN - Hydrostatic Drive Transmission Replacement

HydrostaticDriveBeltInstallation(continued)

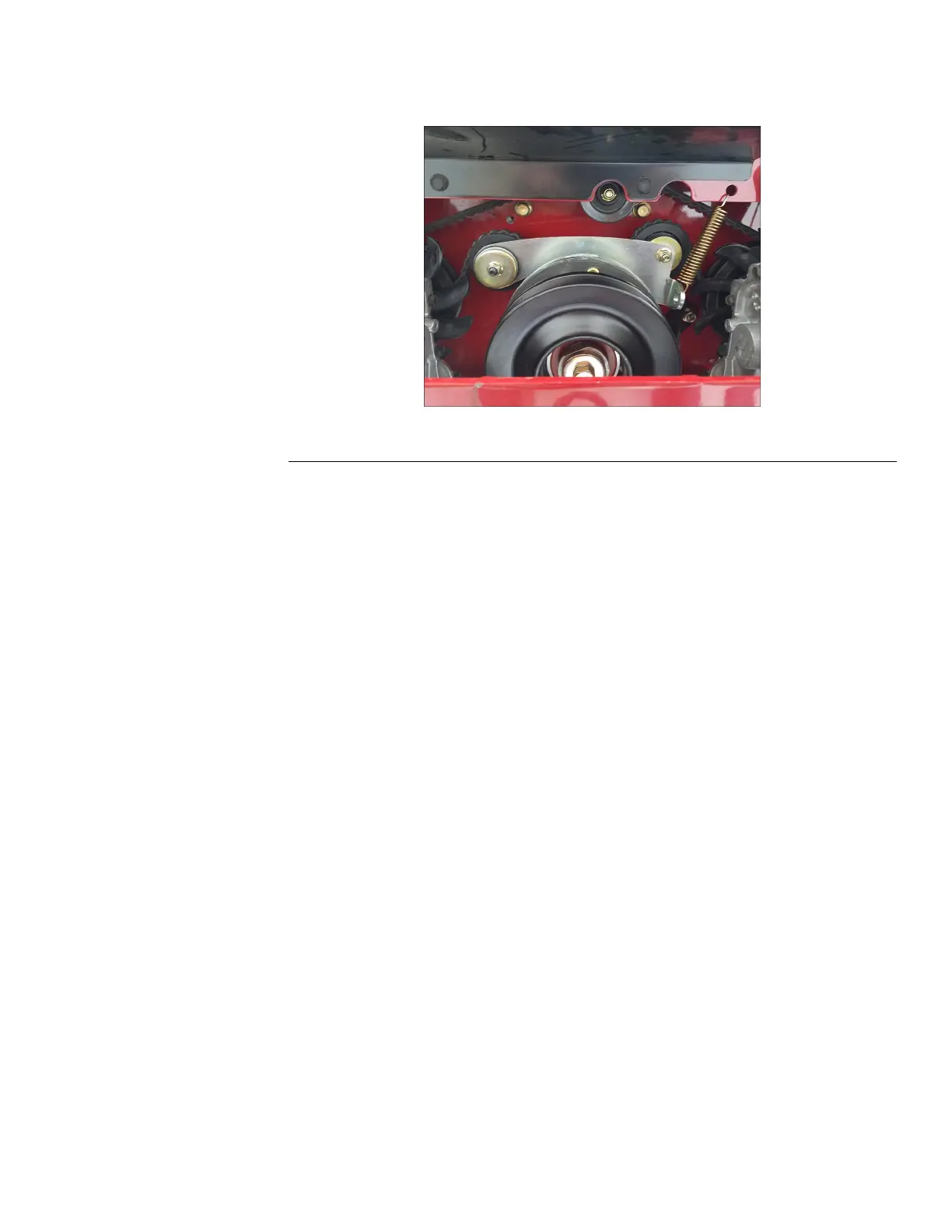

Note:Ensureproperorientationwithhookopeningsfacingawayfromthe
idlerpivot.
g321832
Figure62
7.Installthemowerbeltontotheclutch.
8.Lowertheunit.
9.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
HydrostaticDriveTransmissionReplacement
HydrostaticDriveTransmissionRemoval
Note:Thesestepsareshownreplacingtherightsidehydrostaticdrive
transmission.Allofthesamestepsapplytotheleftsidehydrostaticdrive
transmission.
1.Stoptheengine,waitforallmovingpartstostop,andremovekey.Engage
theparkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Raiseandsupporttheunitsothatthedrivewheelsareofftheground.
4.Removethedrivewheel(s).
5.Removethedrivebelt.
6.Disconnectthemotioncontrollinkagefromthetransmission.
TitanServiceManual
Page6–9
HydrostaticDriveSystem:ServiceandRepairs
3438-774RevA
