MowerSpindleDisassembly
g322066

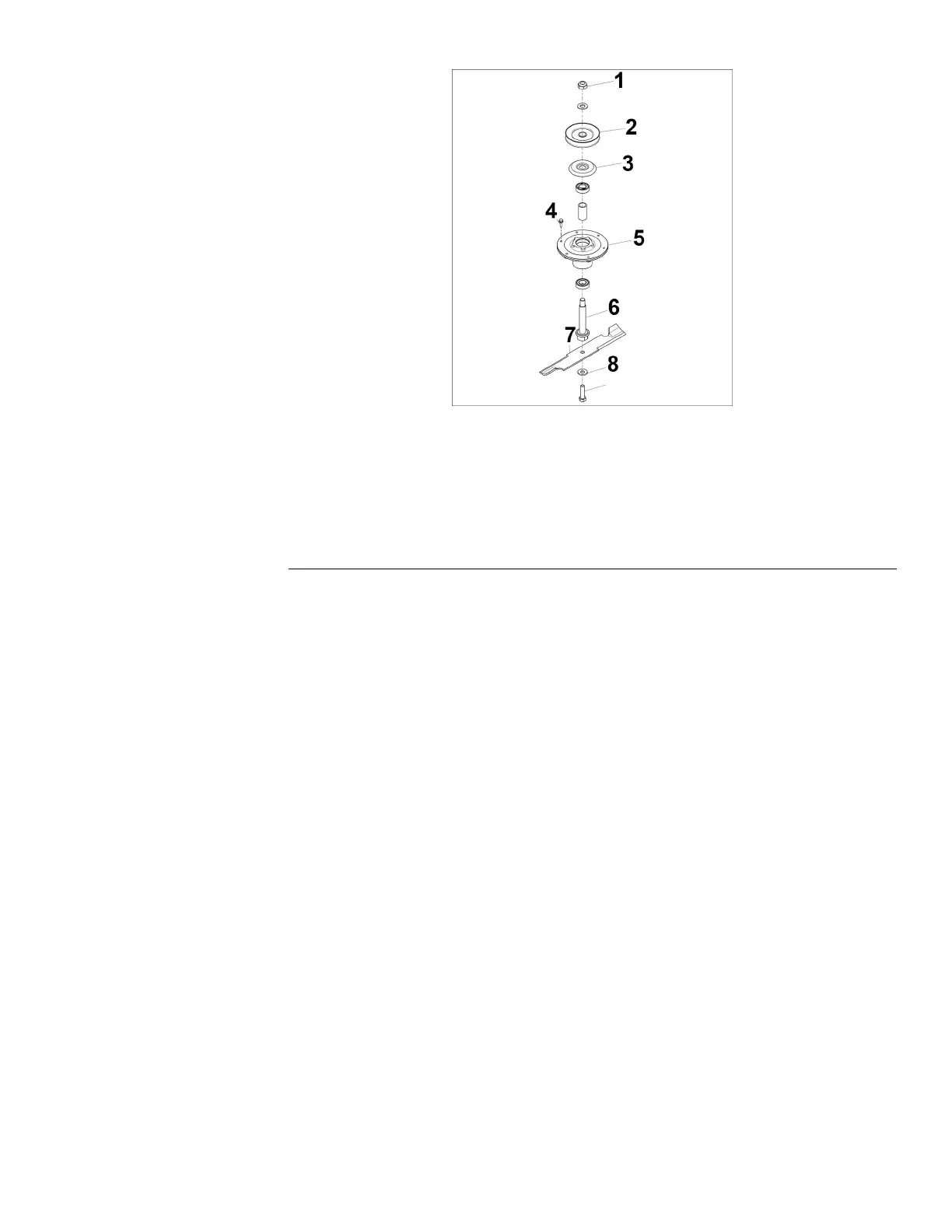

Figure79
1.SpindleNut6.Spindle(ApplyAnti-Seize)
2.Pulley7.Blade
3.BearingShield
8.BellevilleWasher
4.SpindleMountingScrews
9.BladeBolt
5.SpindleAssembly
1.Clampthespindleforservicebyplacingthespindleshaftinavise.
2.Removethenutandwasherfromthetopofthepulley.
3.Removethepulley.
4.Removespindlehousingfromtheshaft.
5.Removethebearingshield.
6.Removethebearingandthebearingspacerfromthetopofthespindle
housing.
7.Flipoverthespindlehousingandremovethelowerbearing.
8.Inspecttheinsideofthespindlehousingforwearordamage.
MowerSpindleAssembly
1.Inspecttheinsideofthespindlehousingforwearordamage.
2.Pressthetopbearingintothespindlehousingbypressingequallyonthe
innerandouterrace.
Note:Ensurethatthebearingseatsagainsttheshoulderinthespindle
housing.
TitanServiceManual
Page7–9
MowerDeck:ServiceandRepairs
3438-774RevA

Toro TITAN Specifications

General

Cutting Width	60 inches
Fuel Capacity	5 gallons
Transmission	Hydrostatic
Warranty	3 years
Deck Material	Steel
Cutting Height	1.5 to 4.5 inches
Speed	8.5 mph / 13.7 km/h
