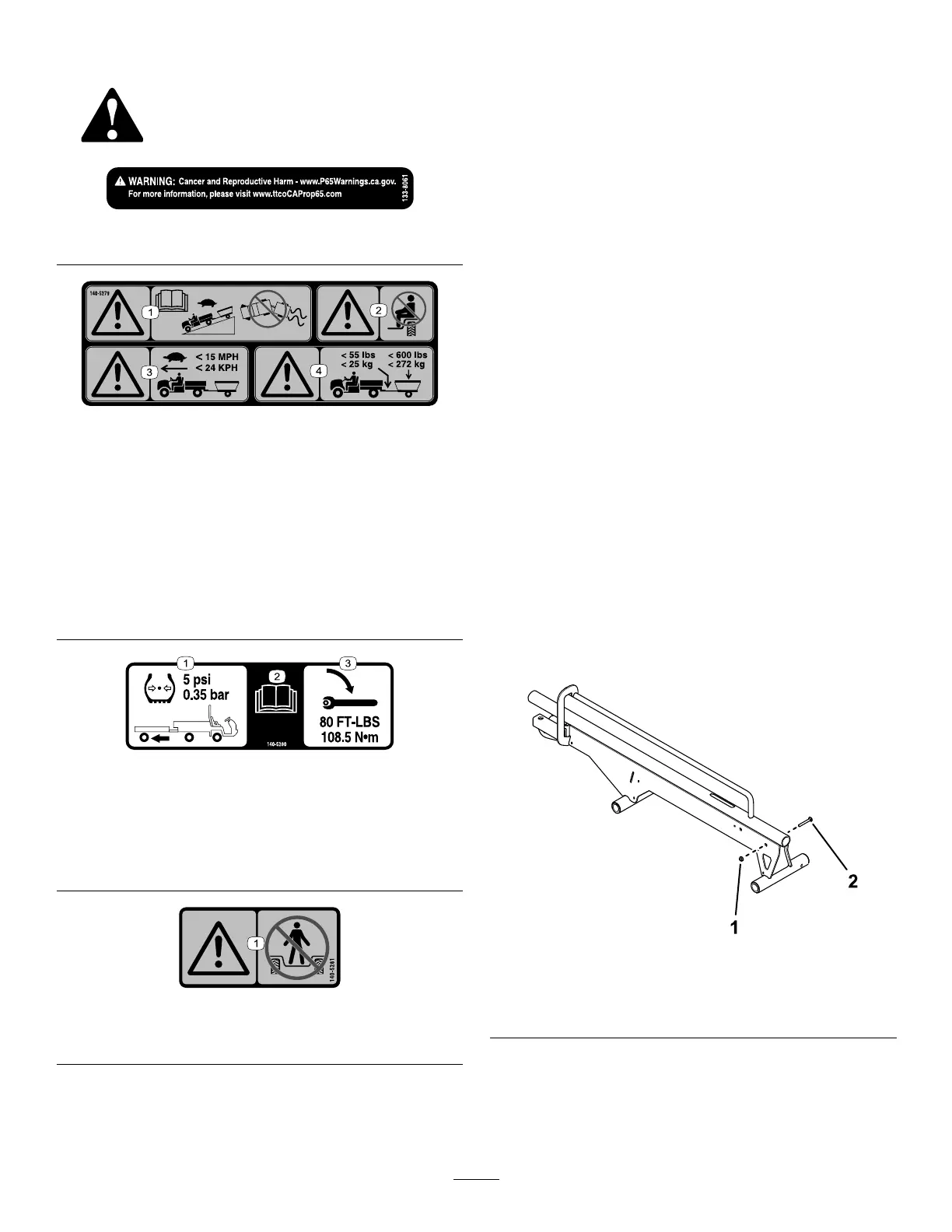

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal133-8061
133-8061
decal140-5279
140-5279
1.Warning—readthe
Operator’sManual;drive
slowlywhendriving
downhillwithatrailer;do
notlosecontrolofthe
vehicleandtrailer.
3.Warning—driveslowly
whendrivingwithatrailer;
donotexceed24km/h(15
mph).
2.Warning—donotcarry
passengers.
4.Warning—themaximum
trailerweightis272kg
(600lb)andthemaximum
tongueweightis25kg(55
lb).
decal140-5280
140-5280
1.Thetrailertiresshouldbe
inatedto0.35bar(5psi).
3.Torquethetrailerwheel
nutsto108.5N∙m(80
ft-lb).
2.ReadtheOperator’s
Manual.
decal140-5281
140-5281
1.Warning—donotcarrypassengersonthetrailer.
Installation
Assemblingthe
AppropriateConguration
Kit
Youcaninstalloneofthefollowingkitsperyour
desiredconguration:
•Rail-LoadingKit(Model04229);referto
AssemblingtheRail-LoadingKit(page2)
•Wheel-LoadingKit(Model04219);referto
AssemblingtheWheel-LoadingKit(page5)
Assemblingthe
Rail-LoadingKit
Note:Performthefollowingstepstoassemblethe
left-andright-sidedrails.Thefollowingillustrations
showtherightsideoftherail-loadingkit.
1.Installacarriageboltsandaangenuts(1/4
inch)totherampassembly(Figure1).
g348132
Figure1
Rightsideshown.
1.Flangenut(1/4inch)2.Carriagebolt
2.Useapinsandahex-headscrewtosecurethe
wheelstoptotherailassembly(Figure2)
