Toro TransPro 200 - Page 3

g340445

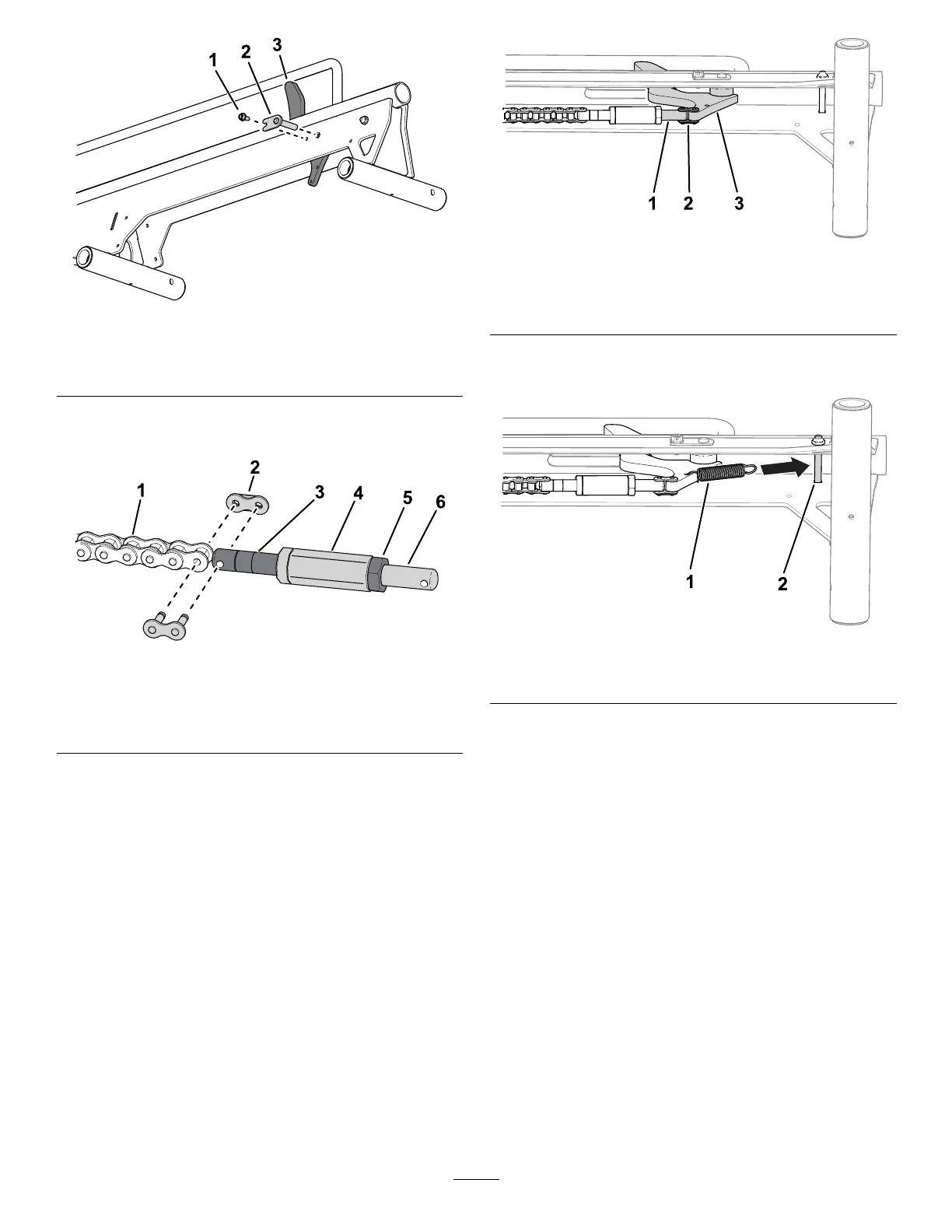

Figure2
1.Hex-headscrew3.Wheelstop
2.Pin
3.Useachainlinktoinstallthechaintothechain
turnbuckle(Figure3).
g348128
Figure3
1.Chain4.Hexshaft
2.Chainlink
5.Jamnut
3.Chainturnbuckle6.Chain-linkturnbuckle
4.Installthehexshafttothechainturnbuckle
(Figure3).
5.Useajamnuttoinstallthechain-linkturnbuckle
tothehexshaft(Figure3).
6.Useachainlinktoinstallthechain-link
turnbuckletothewheelstop(Figure4).
g341266
Figure4
1.Chain-linkturnbuckle
3.Wheelstop
2.Chainlink
7.Connectthespringtothewheelstopandbolt
insideoftherailassembly(Figure5).
g341267
Figure5
1.Spring
2.Bolt
8.Useaangenut(5/16inch),2washers,anda
shoulderboltstosecuretherampassemblyto
therailassembly(Figure6).
3
