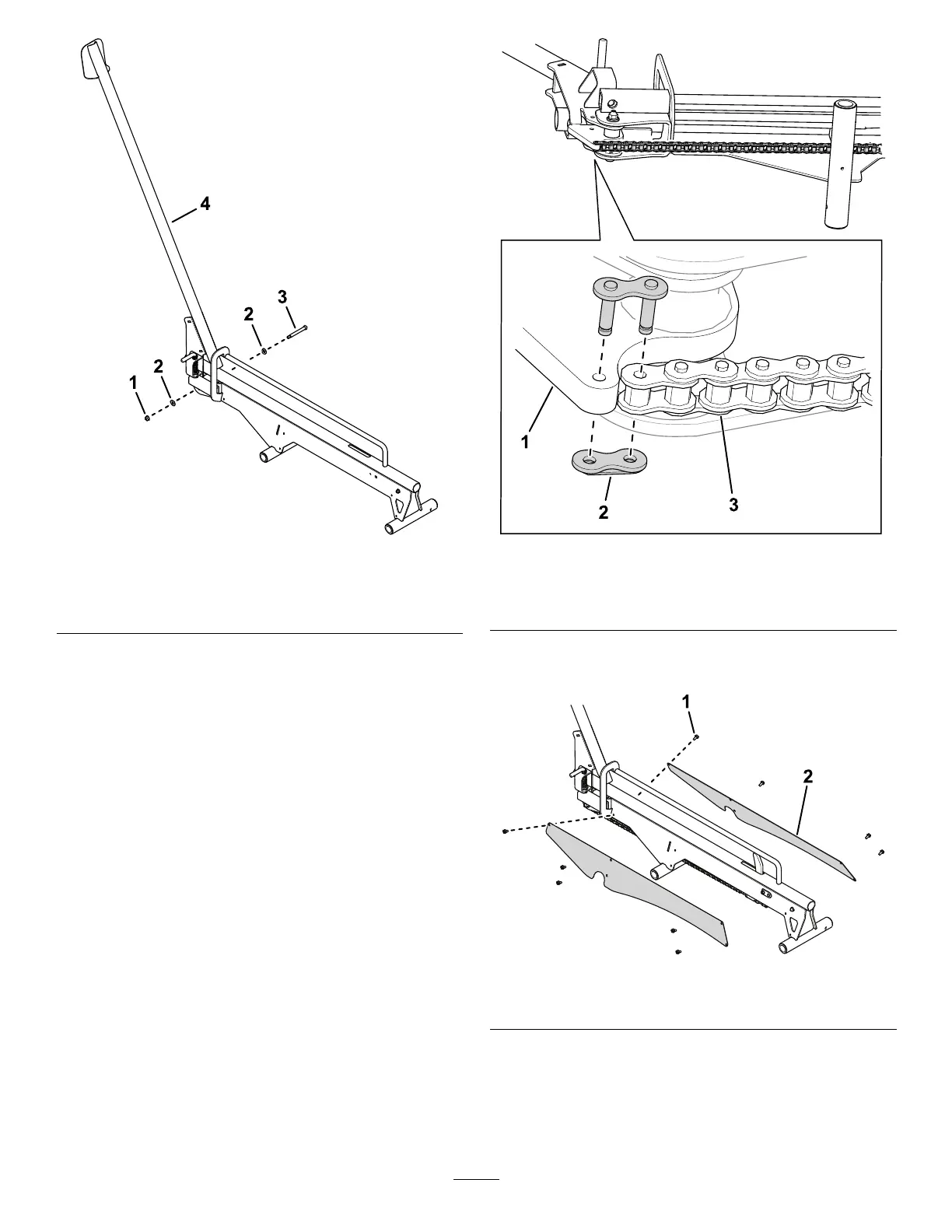

g340144
Figure6
1.Flangenut(5/16inch)3.Shoulderbolt
2.Washers4.Railassembly
9.Useachainlinktoconnectthechaintotheramp
assembly(Figure7).
g348131
Figure7
1.Rampassembly
3.Chain
2.Chainlink
10.Use10hex-headscrewstosecurethechain
coverstotherampassemblies(Figure8).
g342431
Figure8
1.Hex-headscrew
2.Chaincover
11.Checkthestop-gaplength;refertoChecking
theStopGap(page16).
4
