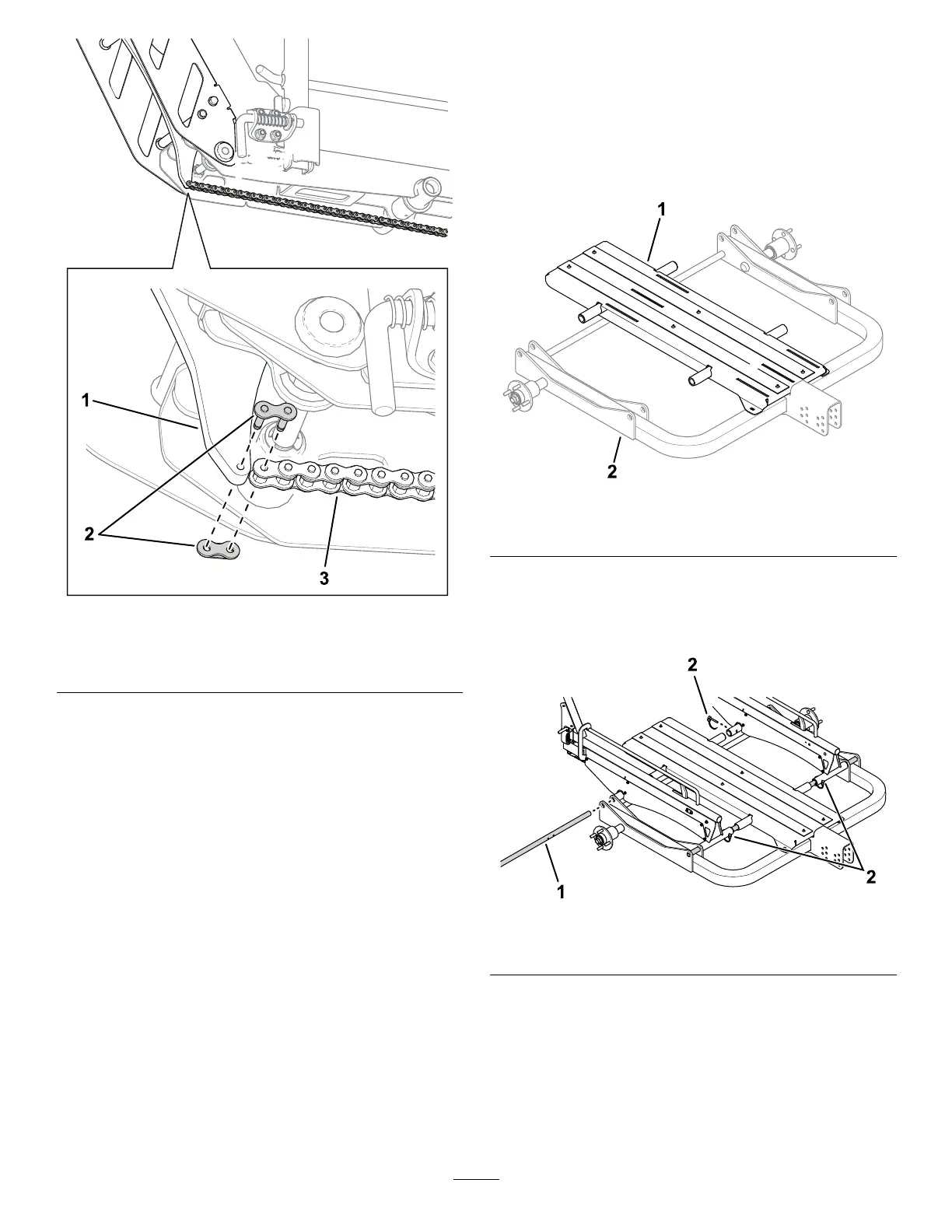

Figure17
1.Rampassembly
3.Chain
2.Chainlink
AssemblingtheTrailer
InstallingtheSupportRodstothe
MainFrame
1.Positionthecentersupportonthemainframe
asshowninFigure18.
g338068
Figure18
1.Centersupport2.Mainframe
2.Haveanassistantholdthewheelkitorrailkit
andcentersupportin-placewhileinstallingthe
supportrodsthroughtheholesinthekit,center
support,andmainframe(Figure19).
g338066
Figure19
1.Supportrod
2.Pins
3.Install4pinsthroughtheholesinthewheelkit
orrailkitforyourspecicmachinewidth;referto
ConguringtheTrailerWidth(page10).
