1.TROUBLESHOOTING FOR THE HARDWARE
Clearing a Paper Misfeed 31
1 TROUBLESHOOTING FOR THE HARDWARE
7

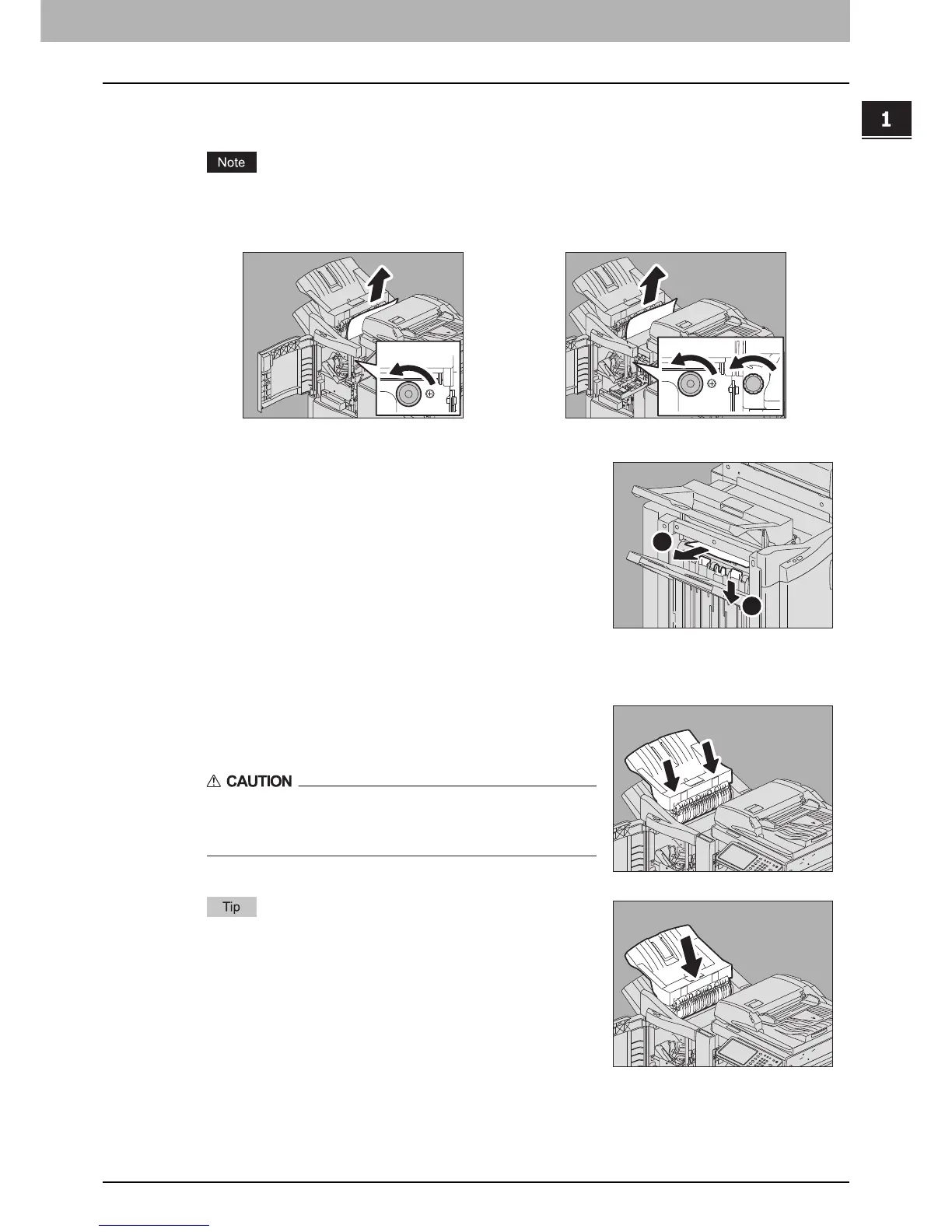

If the paper size is small, turn the knob shown in the following figures to send the
paper, and then remove the misfed paper.
When the Hole Punch Unit is installed, open the front cover of the finisher and turn the 2 knobs at the same
time.
9
Close the cover of the Bridge Unit.
8
Lower the shutter of the paper exit portion and
remove the paper.
10
Close the upper receiving tray of the finisher.
Place your hands on the near and far side of the lever and push to
close the tray until it clicks.
Be careful not to let your fingers be caught between the
finisher body and the upper tray of the finisher.
This could injure you.
The upper receiving tray of the finisher can also be closed by
pressing the right side of the lever.
To Next Page
