3.10.8 Adjustment of RADF opening/closing switch
Adjust the bracket position so that the switch is turned ON when the height A becomes 40-45 mm
(within the empty weight falling limit).

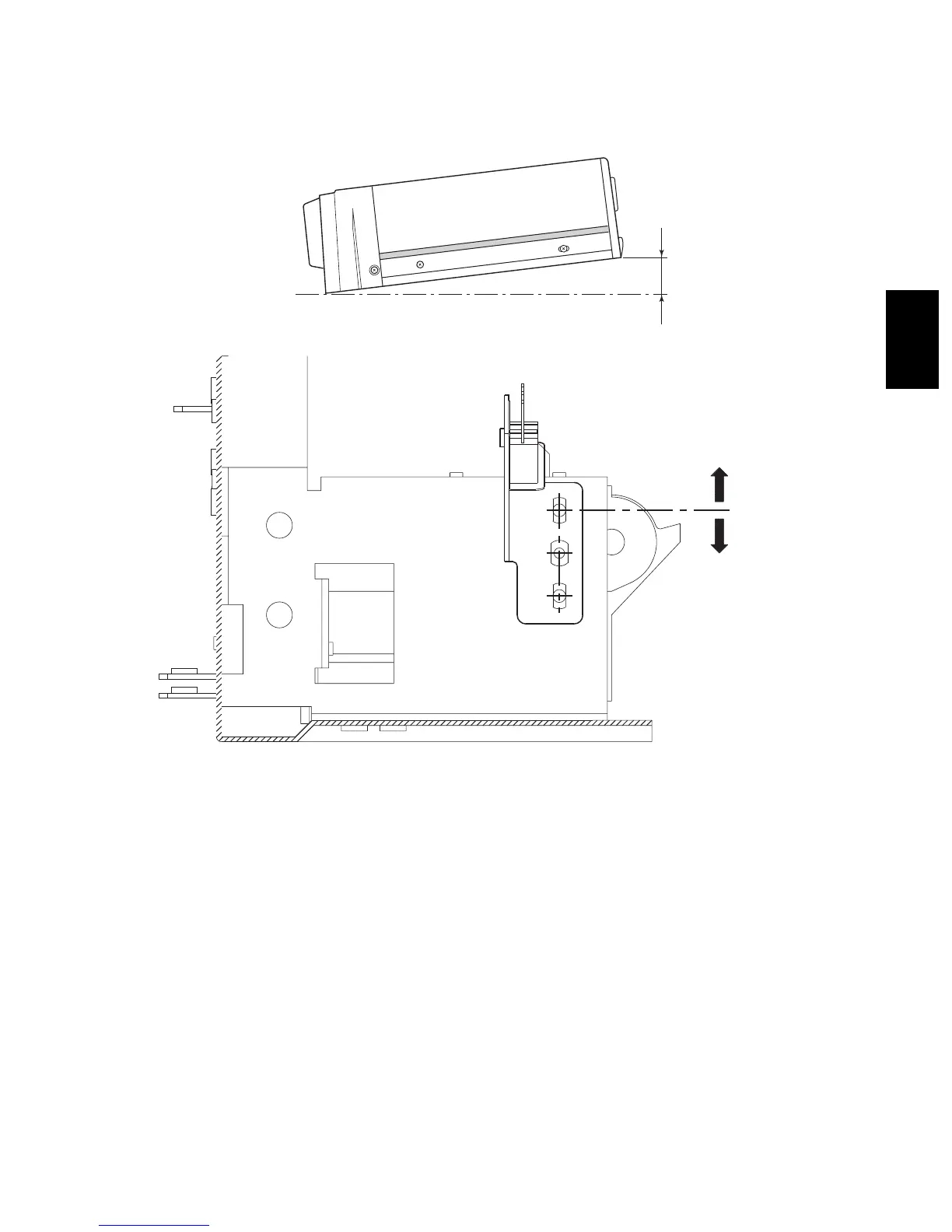

Fig. 3-80
Glass surface
A
Center
