64 G9 ASD Quick Start Guide
Enclosure Dimension and Conduit Plate
Information
The part numbering convention is shown below. Use this information for ordering and to identify the ASD
typeform.
The enclosure dimensions for the available models (typeforms) are listed in Tables 3 and 4. The conduit
plates referenced are shown in Figure 30, Figure 31, and Figure 32.

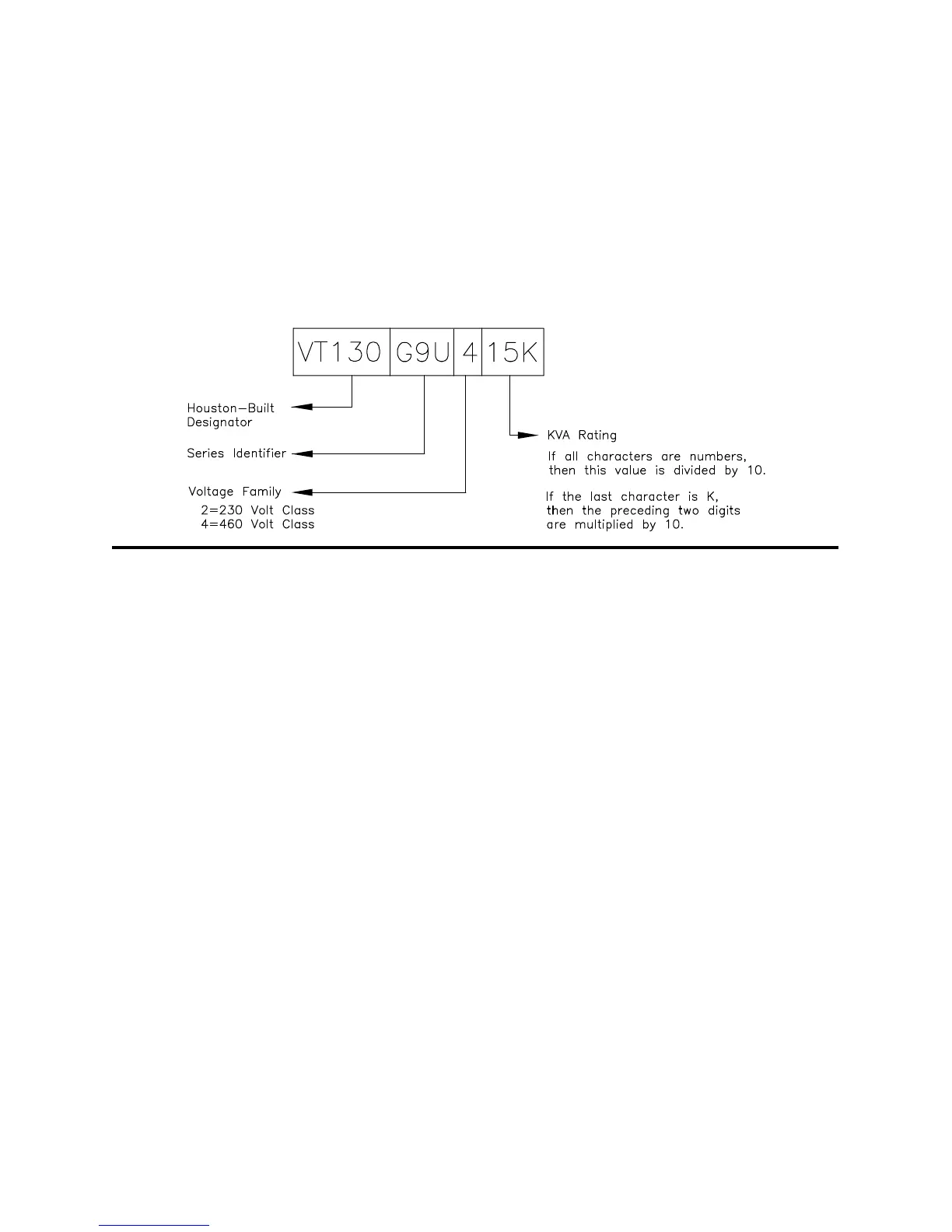

G9 Part Numbering Convention.
Note: The Type 1 enclosed versions of these drives meet or exceed the specification UL 50-
1995, the Standard for Heating and Cooling Equipment, and complies with the
applicable requirements for installation in a compartment handling conditioned air.
Note: All Toshiba ASD enclosures carry an IP20 rating.
