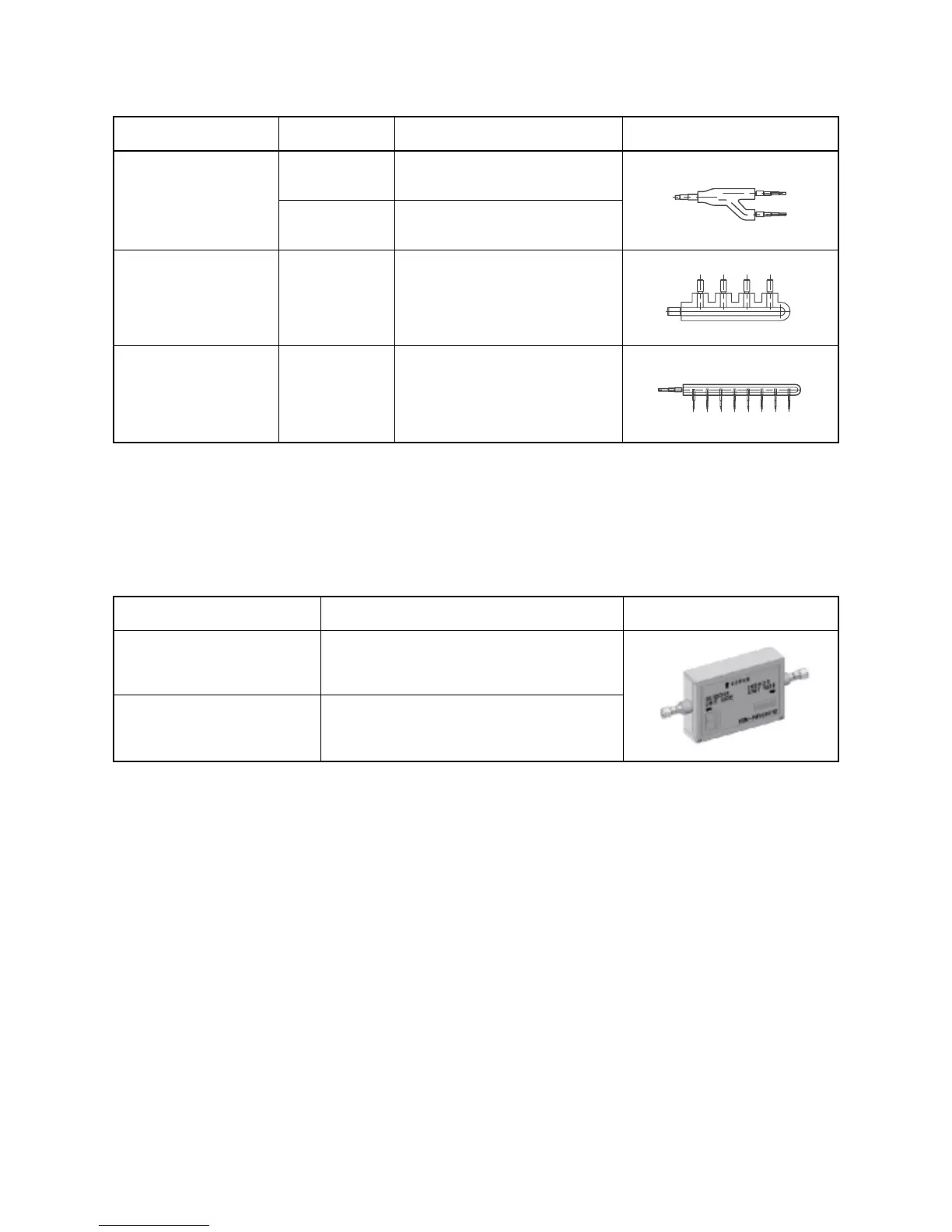

1-1-3. Branching Joints and Headers *1
*1 If total capacity code value of indoor unit exceeds that of outdoor unit, apply code of outdoor unit.
*2 “Capacity code” can be obtained. (capacity code is not actual capacity)
*3 When using Y-shape branching joint for 1st branching, select according to the capacity code of outdoor unit.
1-1-4. PMV Kit
Y-shape branching joint
4-branching header
8-branching header
Model name
RBM-BY53E
RBM-BY103E
RBM-HY1043E
RBM-HY1083E
Usage
Indoor unit capacity code (*2) :
Total below 6.4
Indoor unit capacity code (*2) :
Total 6.4 or more and below 7.8
Indoor unit capacity code (*2) :
Total below 7.8
Indoor unit capacity code (*2) :
Total below 7.8
Appearance
Model name
RBM-PMV0361E
RBM-PMV0901E
Indoor unit capacity type
007, 009, 012 type
015, 018, 024 type
Appearance
