Upper plate
Side cabinet
Front cabinetFront cabinet
Outlet cabinet Piping panel (Rear)
Piping panel (Front)
Reactor box
Outlet cabinet

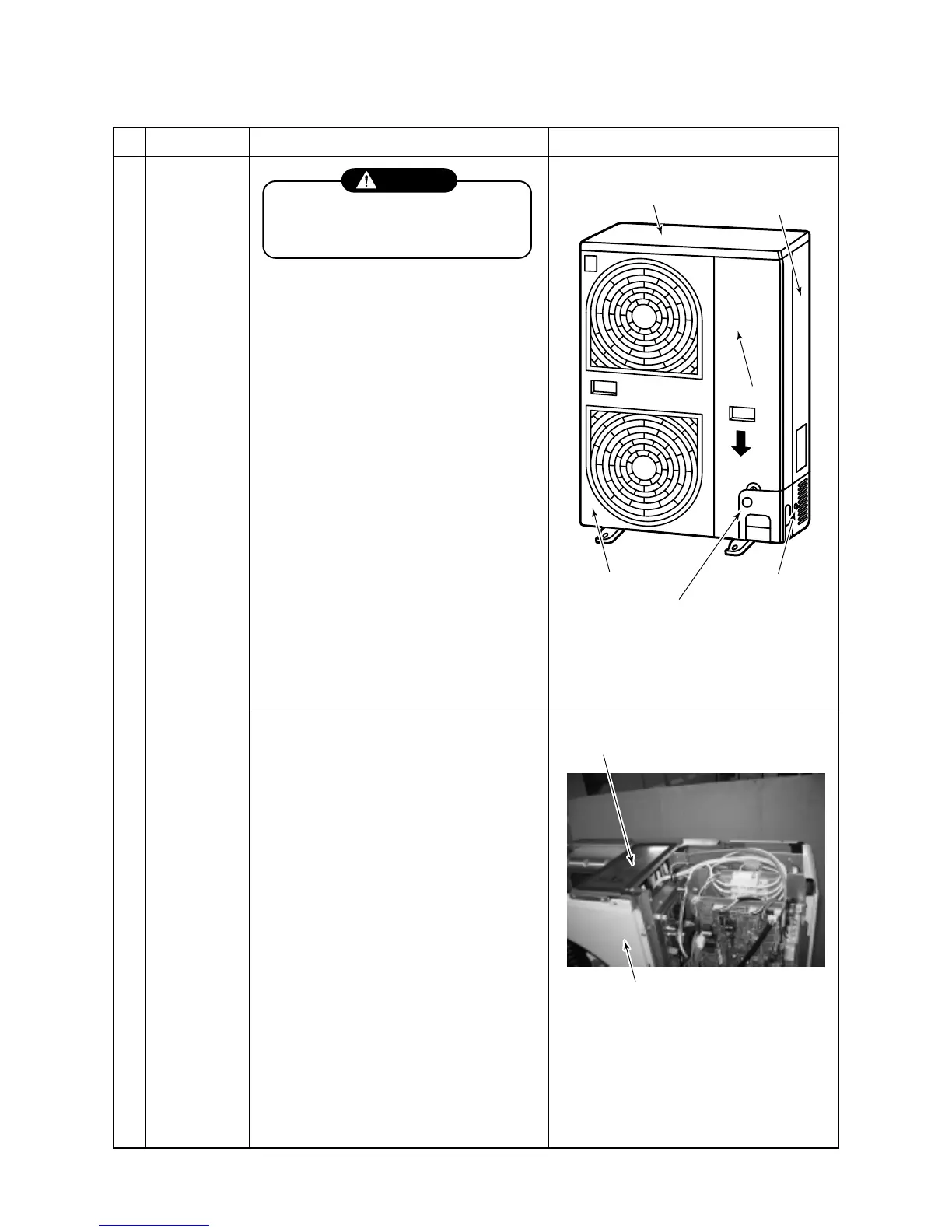

14. REPLACING PROCEDURE OF PARTS
No.
1
Part name
Cabinets and
others
Procedure
CAUTION
Wear protective clothing on your hands
as other components may cause injury
etc.
<Disassembling>
1) Stop unit operation and turn off power
supply to unit.
2) Remove Front cabinet.
(Screw Ø4 × 10 3 pcs)
Note : Slide to downward for unhook the
hooking tab.
3) Remove Upper plate.
(Screw Ø4 × 10 6 pcs)
4) Remove Piping panel (Front) and (Rear).
(Screw Ø4 × 10 6pcs)
5) Remove Side cabinet.
(Screw Ø4 × 10 8pcs)
Note : Hooked to hooking tab of Inverter
plate.
6) Remove Reactor box.
Note : Refer to 2 – 4. Reactor
7) Remove Outlet cabinet.
Remarks
<Assembling>
Assembling by contrary procedure of above
7) → 1).
