REMOTE CONTROL
Heat Exchange sensor
Main Unit Control Panel M.C.U.
Functions
Operation
Display
Timer
Display
Fan Only
Sign Display
Indoor Fan
Motor
Louver
Motor
Louver
ON/OFF
Signal
Compressor
ON/OFF
Signal
Power Supply
Circuit
Noise Filter Relay Driver, Louver Driver
Relay
RY01
220-240 V~, 50Hz
Compressor, Outdoor Fan Motor
Initiallizing Circuit
Clock Frequency
Oscillator Circuit
• Louver Control
•3-minutes Delay at Restart
for Compressor
•Processing
(Temperature Processing)
•Motor Revolution Control
•Timer
Thermo. Sensor
Infrared Rays Signal Reciver
FILE NO. SVM-07021

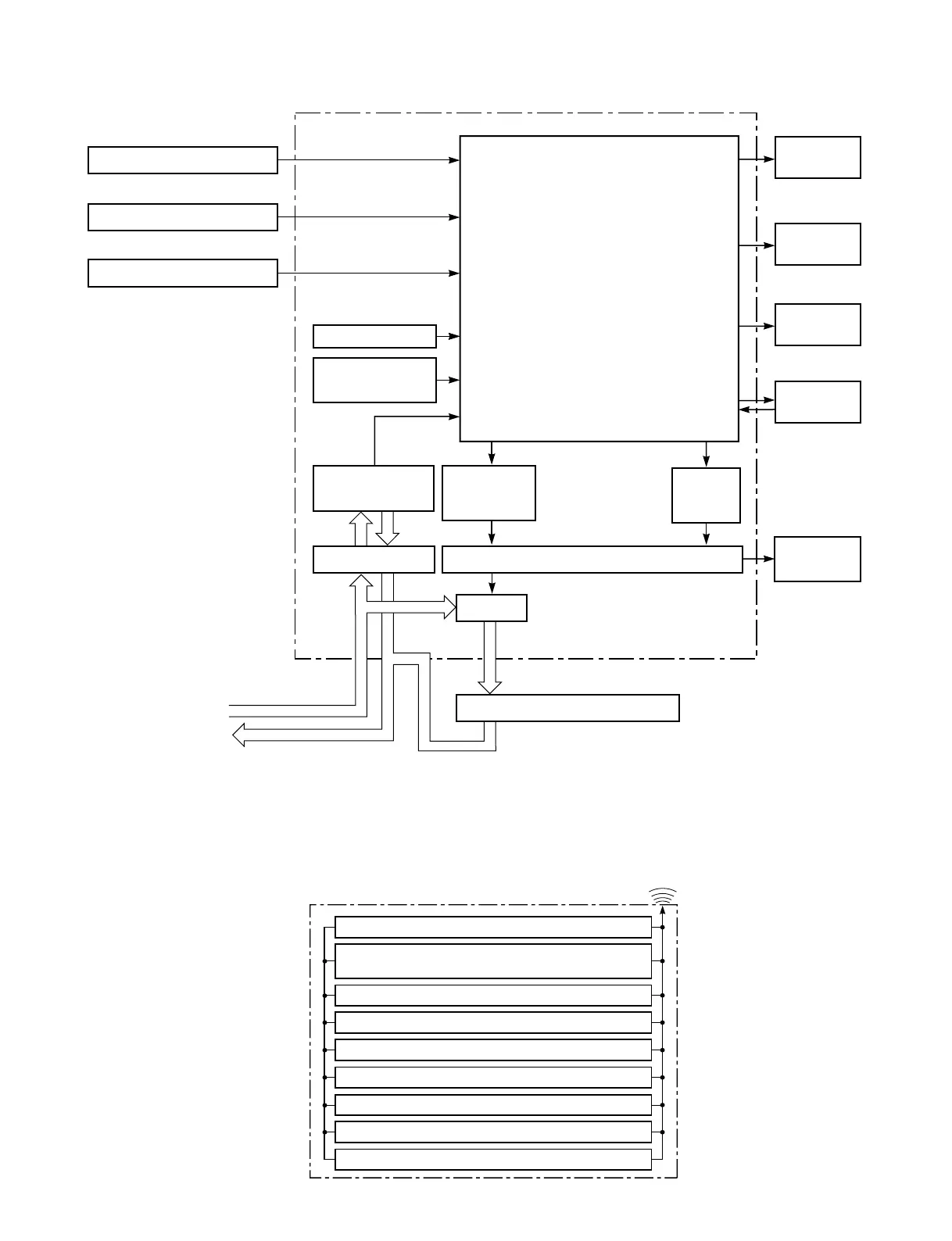

6. CONTROL BLOCK DIAGRAM
Remote Control
Operation (START/STOP)
Operation Mode Selection
AUTO, COOL, DRY, AUTO FAN
Temperature Setting
Fan Speed Selection
ON TIMER Setting
OFF TIMER Setting
Louver Auto Swing
Louver Direction Setting
ECO
Infrared Rays

Toshiba RAS-07SKSX Specifications

General

Type	Split System
Refrigerant	R410A
Power Supply	220-240V, 50Hz
Weight (Indoor Unit)	8 kg
Heating Capacity	2.5 kW
