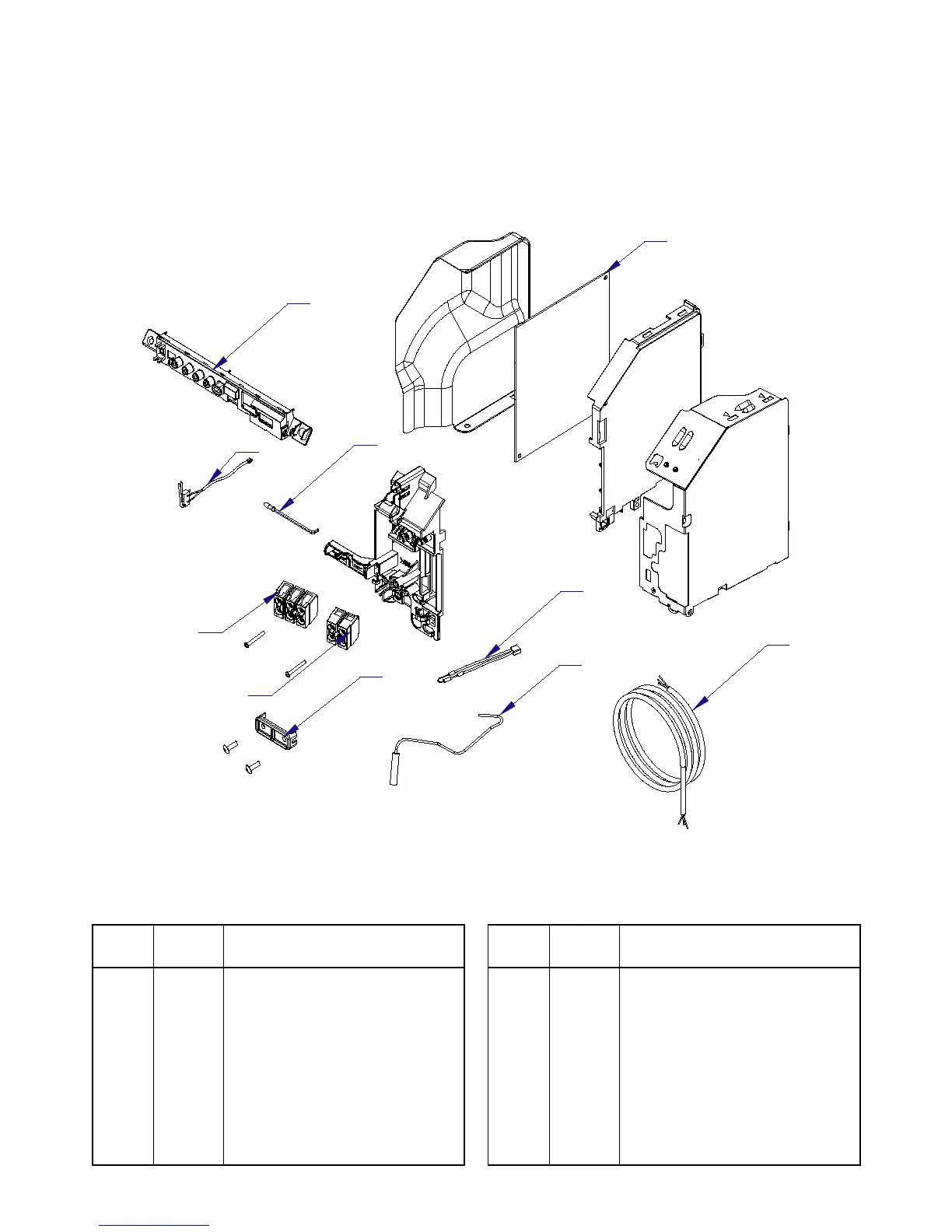

11. EXPLODED VIEWS AND PARTS LIST
11-1. Indoor Unit (E-Parts Assy)
Location Part
Description
No. No.
402 43T60002 Terminal Block, 3P
3P AC300V, 20A
403 43T69004 TC Sensor 10kΩ 25°C
404 43T69005 Sensor,Thermostat 10kΩ 25°C
405 43T69416 P.C. Board ASSY, WRS-LED
MCC-861
406 43T69364 Fuse, Temperature, 73°C
407 43T60355 POWER CORD
Location Part
Description
No. No.
410 43T62003 Cord Clamp
411 43T69408 P.C. Board (RAS-07NKD-E)
411 43T69409 P.C. Board (RAS-10NKD-E)
411 43T69410 P.C
.
Board (RAS-13NKD-E)
411 43T69412 P.C Board (RAS-10NKHD-E)
412 43T51305 MICRO SWITCH
401 43T60001 Terminal Block, 2P
411 43T69411 P.C Board (RAS-07NKHD-E)
411 43T69413 P.C Board (RAS-13NKHD-E)
405
404
412
402
401
410
403
406
407
411

Toshiba RAS-13UAH-E3 Specifications

General

Cooling Capacity	3.5 kW
Heating Capacity	4.0 kW
Energy Efficiency Ratio (EER)	3.21
Coefficient of Performance (COP)	3.61
Refrigerant	R410A
Power Supply	220-240V, 50Hz
Weight (Indoor Unit)	9 kg
Noise Level (Outdoor)	50 dB
Type	Split
