Toshiba ras-m16g3dv-e - Electronic Parts List

– 87 –

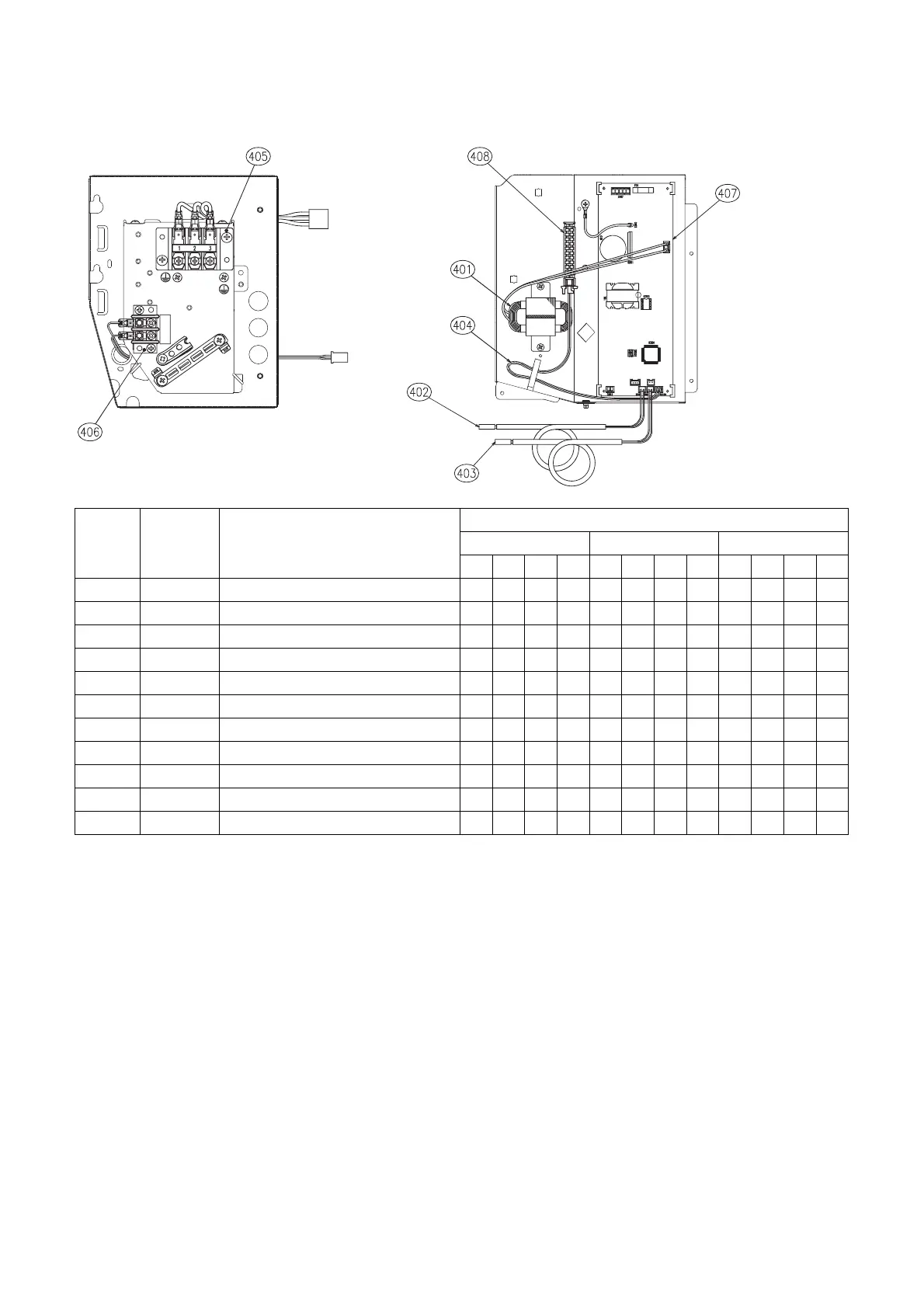

13-2. E-parts
Location
No.
Part No. Description
Q’ty/Set
RAS-M**G3DV-E RAS-M**G3DV-ND RAS-M**G3DV-TR
07 10 13 16 07 10 13 16 07 10 13 16
401 43H58010REACTOR 111111111111
402 43H50010SENSOR,TC 111111111111
403 43H50011SENSOR,TC 111111111111
404 43H50012SENSOR,TA 111111111111
405 43H60013TERMINAL,3P 111111111111
406 43H60014TERMINAL,2P 111111111111
407 43H69018 PC BOARD ASSY, MCC-1643 1 1 1
407 43H69019 PC BOARD ASSY, MCC-1643 1 1 1
407 43H69020 PC BOARD ASSY, MCC-1643 1 1 1
407 43H69021 PC BOARD ASSY, MCC-1643 1 1 1
408 43H63001HOLDER,SENSOR(TA) 111111111111
$#
4'/16'%10641..'4
SENSOR
TC
TERMINAL 3P
TERMINAL 2P
HOLDER SENSOR(TA)
PC BOARD ASSY
MCC-1643
REACTOR
SENSOR TA
SENSOR
TC
