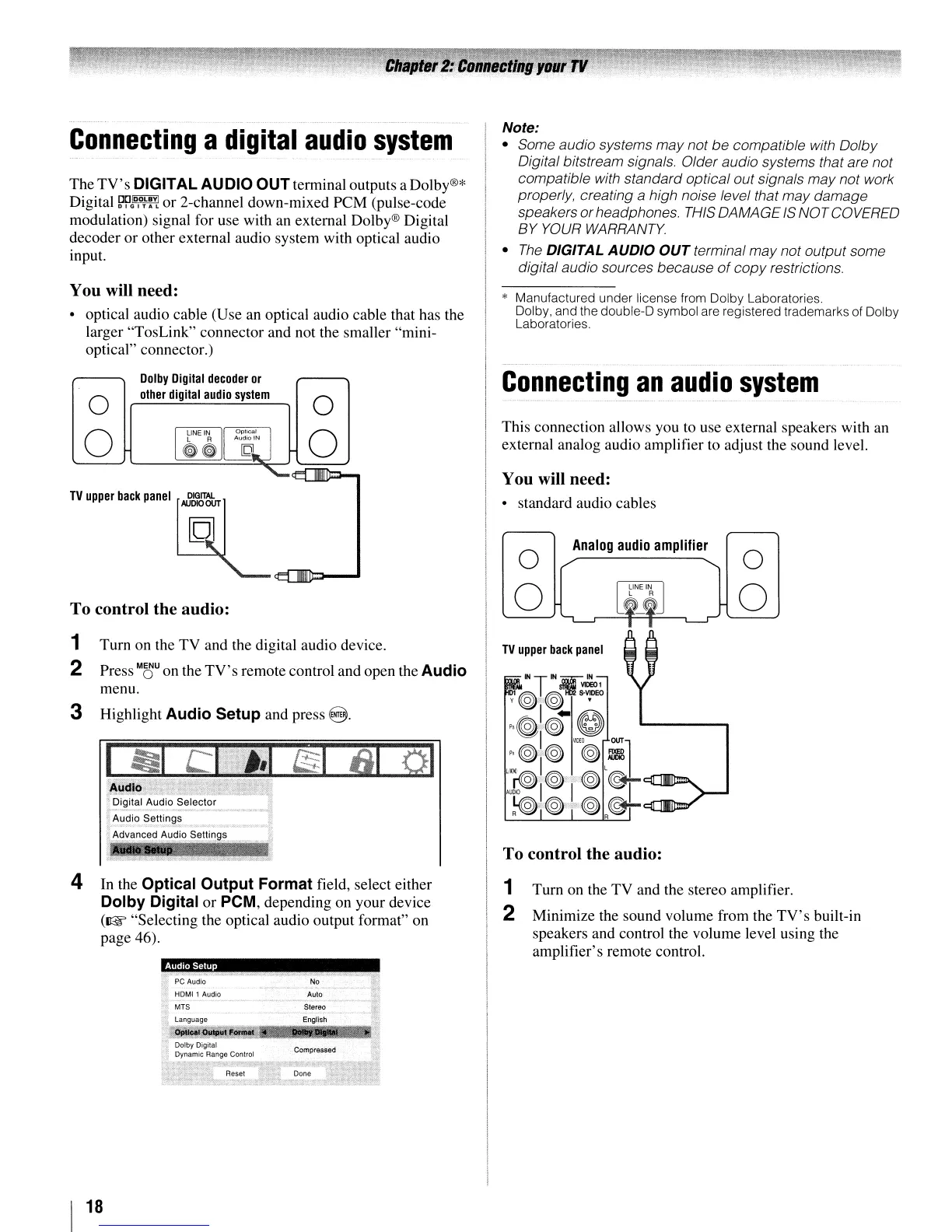

_ .
~onnecting
a
digital
audio
system
The
TV's
DIGITAL AUDIO OUT tenninal outputs a Dolby®*
Digital
~PAD,D;~YJ
or
2-channel down-mixed
peM
(pulse-code
modulation) signal for use with an external Dolby® Digital
decoder
or
other external audio system with optical audio
input.
Note:
• Some audio systems may not
be
compatible with Dolby
Digital bitstream signals. Older audio systems that are not
compatible with standard optical out signals
may
not work
properly, creating a high noise level that
may
damage
speakers orheadphones.
THIS
DAMAGE
IS
NOTCOVERED
BY
YOUR
WARRANTY.
•
The
DIGITAL AUDIO
OUT
terminal may not output some
digital audio sources because
of
copy
restrictions.
You will need:
• optical audio cable (Use an optical audio cable that has the
larger "TosLink" connector and not the smaller "mini-
optical" connector.)
* Manufactured under license from Dolby Laboratories.
Dolby. and the double-D symbol are registered trademarks of Dolby
Laboratories.
To control the audio:
o
o
Analog
audio
amplifier
o
o
To control the audio:
TV
upper
back
panel
You will need:
• standard audio cables
Connecting
an
audio
system
This connection allows you to use external speakers with an
external analog audio amplifier to adjust the sound level.
o
o
Dolby
Digital
decoder
or
other
digital
audio
system
o
o
TV
...
"
b,"
,,,,,
I
at
dJltI::l--.J
1 Turn on the TV and the digital audio device.
2 Press
MOU
on the
TV's
remote control and open the
Audio
menu.
3 Highlight
Audio
Setup and press @.
4 In the Optical Output Format field, select either
Dolby
Digital
or
PCM,
depending on your device
(~
"Selecting the optical audio output fonnat" on
page 46).
1
Tum
on the
TV
and the stereo amplifier.
2 Minimize the sound volume from the
TV's
built-in
speakers and control the volume level using the
amplifier's remote control.
AudIO Setup
PC
Audio No
HDMI 1 Audio Auto
MTS
Stereo
Language English
~~t!Onn~
....
~:
••••••
>
Dolby Digital
Dynamic Range Control
Reset Done
I
18
