MONITOR SYSTEM

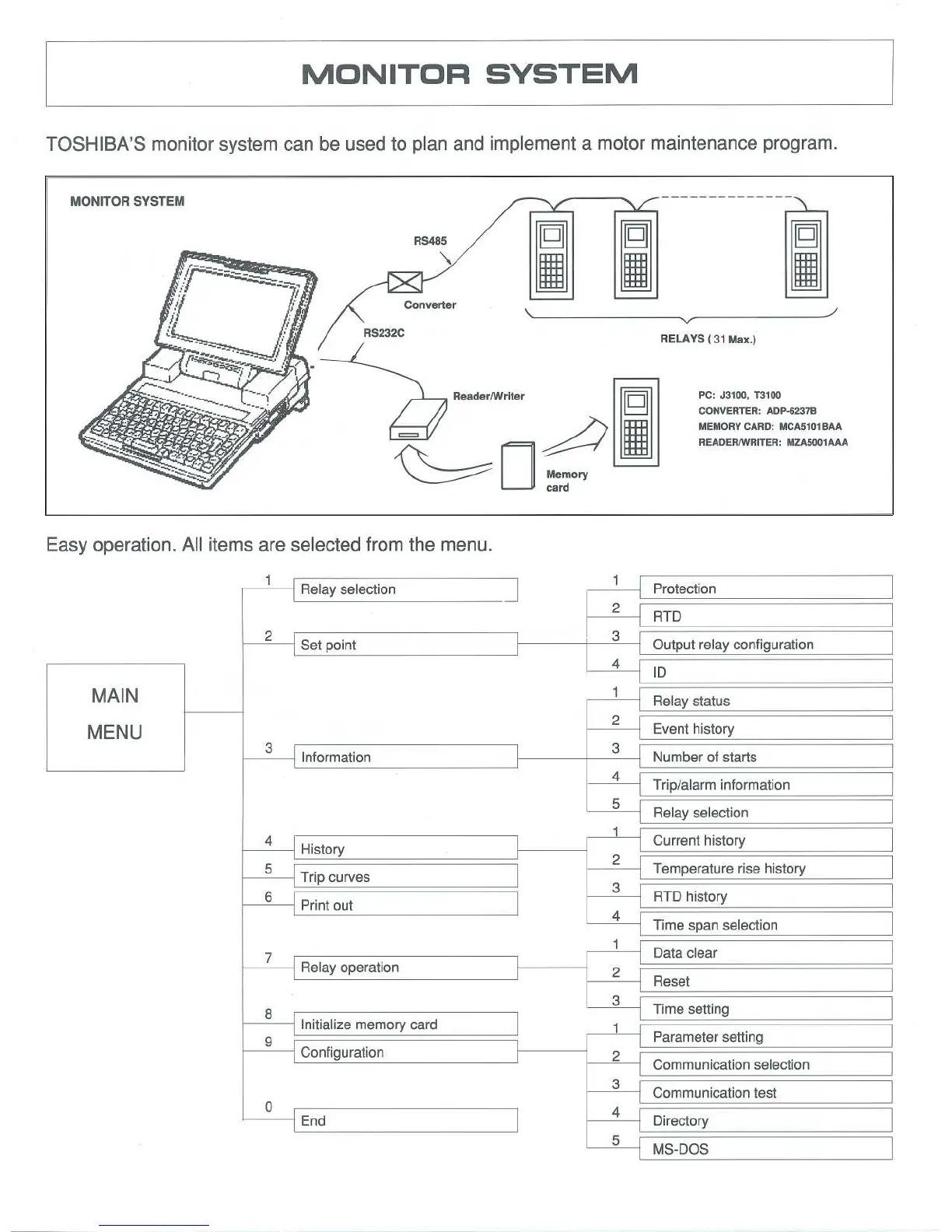

TOSHIBA'S monitor system can be used to plan and
implement a motor maintenance program .
MONITOR SYSTEM
w
Bon
Bo~
Boom
Boom
Boom
R
PC : J3100, T3100
CONVERTER : ADP-6237B
MEMORY CARD : MCA5101BAA
READER/WRITER :
MZA5001AAA
Easy operation . All items are selected from the menu .
MAIN
MENU
Relay selection
Protection
2
RTD
2
Set point
3
Output relay configuration
ID
Relay status
2
Event history
3
Information
3
Number of starts
4
Trip/alarm information
5
Relay selection
History
Current history
5
Trip curves
2
Temperature rise history
3
Print out
RTD history
4
Time
span selection
Data
clear
Relay operation
2
Reset
3
Time setting
Initialize memory card
9
Parameter setting
Configuration
2
Communication selection
3
Communication test
End Directory
MS-DOS
